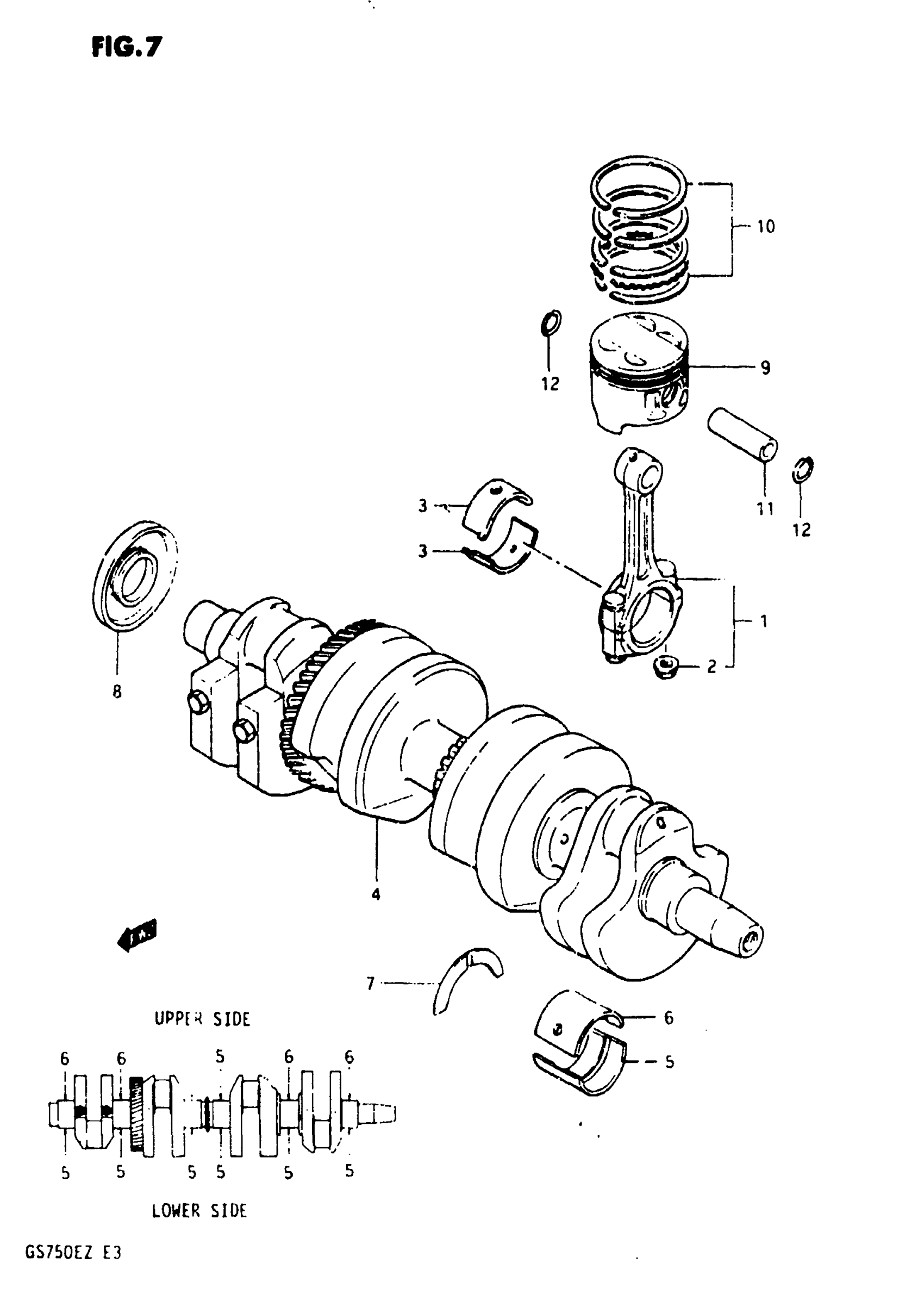

Suzuki GS750E (1982) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 This part replaces 12160-45400.

12160-45500

Unavailable

2

NUT

09159-08033

$3.50

3

BEARING, CRANK PIN (GREEN) | GREEN This part replaces 12164-45510-010.

12164-31E00-0A0

$23.00

3

BEARING, CRANK PIN (BLACK) | BLACK This part replaces 12164-45510-020.

12164-31E00-0B0

$19.55

3

BEARING, CRANK PIN (BROWN) | BROWN This part replaces 12164-45510-030.

12164-31E00-0C0

$23.00

3

BEARING, CRANK PIN (YELLOW) | YELLOW This part replaces 12164-45510-040.

12164-31E00-0D0

$23.00

3

BEARING, CRANK PIN | US:0.25

12164-45510-025

Unavailable

3

BEARING, CRANK PIN | US:0.50

12164-45510-050

Unavailable

4

CRANKSHAFT This part replaces 12220-45402.

12220-45500

Unavailable

5

BEARING, CRANKSHAFT (GREEN) | GREEN This part replaces 12229-45400-010.

12229-09301-0A0

Unavailable

5

NO DESCRIPTION AVAILABLE | BLACK This part replaces 12229-43400-020.

12229-43400-0B0

Unavailable

5

BEARING, CRANKSHAFT (BROWN) | BROWN This part replaces 12229-45400-030.

12229-09301-0C0

Unavailable

5

BEARING, CRANKSHAFT (YELLOW) | YELLOW This part replaces 12229-45400-040.

12229-09301-0D0

Unavailable

5

BEARING, CRANKSHAFT | US:0.25

12229-45400-025

Unavailable

5

BEARING, CRANKSHAFT | US:0.50

12229-45400-050

Unavailable

6

BEARING, CRANKSHAFT (GREEN) | GREEN This part replaces 12229-45410-010.

12229-06B10-0A0

$12.00

6

BEARING, CRANKSHAFT (BLACK) | BLACK This part replaces 12229-45410-020.

12229-06B10-0B0

$10.21

6

BEARING, CRANKSHAFT (BROWN) | BROWN This part replaces 12229-45410-030.

12229-06B10-0C0

$10.21

6

BEARING, CRANKSHAFT (YELLOW) | YELLOW This part replaces 12229-45410-040.

12229-06B10-0D0

$12.45

6

BEARING, CRANKSHAFT (US:0.25) | US:0.25 This part replaces 12229-45410-025.

12229-45400-025

Unavailable

6

BEARING, CRANKSHAFT (US:0.5) | US:0.50 This part replaces 12229-45410-050.

12229-45400-050

Unavailable

7

THRUST BEARING (WHITE) This part replaces 12228-45401.

12228-31306

Unavailable

7

THRUST BEARING (GREEN) | GREEN This part replaces 12228-45402.

12228-31304

Unavailable

7

THRUST BEARING (BLACK) | BLACK This part replaces 12228-45403.

12228-31302

Unavailable

8

OIL SEAL This part replaces 09283-30031.

09283-30048

Unavailable

9

PISTON (STD)

12111-45402

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 12111-45402-050.

12103-45840-050

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 12111-45402-100.

12103-45840-100

Unavailable

10

PISTON RING SET This part replaces 12140-45410.

12140-31311

Unavailable

10

PISTON RING SET (OS:0.5) This part replaces 12140-45410-050.

12140-31311-050

Unavailable

10

PISTON RING SET (OS:1.0) This part replaces 12140-45410-100.

12140-31311-100

Unavailable

11

PIN, PISTON This part replaces 12151-92201.

12151-45501

$17.37

12

CIRCLIP

09381-18002

$1.67
