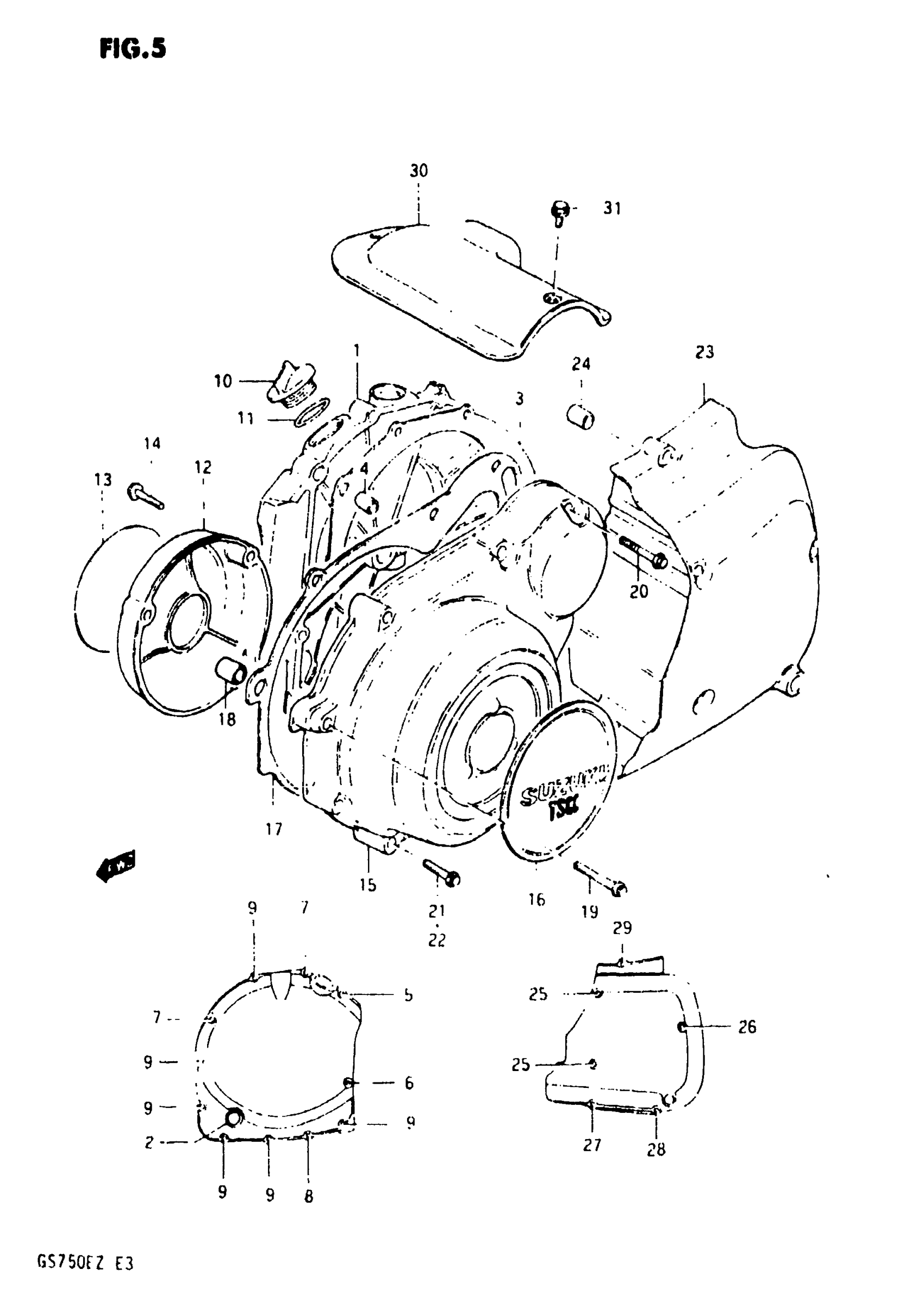

Suzuki GS750E (1982) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-45401

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CLUTCH C This part replaces 11482-45400.

11482-45400-H17

Unavailable

4

PIN

04211-09129

$1.65

5

BOLT This part replaces 01547-06408.

01547-06407

$2.32

6

BOLT This part replaces 01547-06358.

01547-06357

$2.03

7

BOLT This part replaces 01547-06308.

01547-06307

$2.03

8

BOLT This part replaces 01547-06258.

01547-06257

$2.03

9

BOLT This part replaces 01547-06208.

01547-06207

$2.01

10

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

11

O RING

09280-32005

$1.99

12

COVER, CONTACT BREAKER

11381-49202

$54.04

13

EMBLEM

68235-49500

$21.02

14

BOLT This part replaces 01544-05308.

01547-05307

$2.30

15

COVER, GENERATOR

11351-45401

Unavailable

16

EMBLEM

68233-49500

$22.81

17

GASKET,MAGNETO This part replaces 11483-49200.

11483-49210

$11.79

18

PIN This part replaces 09206-13001.

04211-13189

$2.19

19

BOLT This part replaces 01547-06458.

01547-06457

$2.32

20

BOLT This part replaces 01547-06408.

01547-06407

$2.32

21

BOLT This part replaces 01547-06358.

01547-06357

$2.03

22

BOLT This part replaces 01547-06308.

01547-06307

$2.03

23

COVER, ENGINE SPROCKET

11360-49201

Unavailable

24

PIN

04211-09129

$1.65

25

BOLT This part replaces 01547-06958.

01547-06957

$3.43

26

BOLT This part replaces 01547-06858.

01547-06857

$3.30

27

BOLT This part replaces 01547-06708.

01547-06707

$2.75

28

BOLT This part replaces 01547-06558.

01547-06557

$2.32

29

BOLT This part replaces 01547-06308.

01547-06307

$2.03

30

COVER, STARTER MOTOR

11382-49002

$46.38

31

BOLT This part replaces 01544-05088.

01547-05087

$1.72
