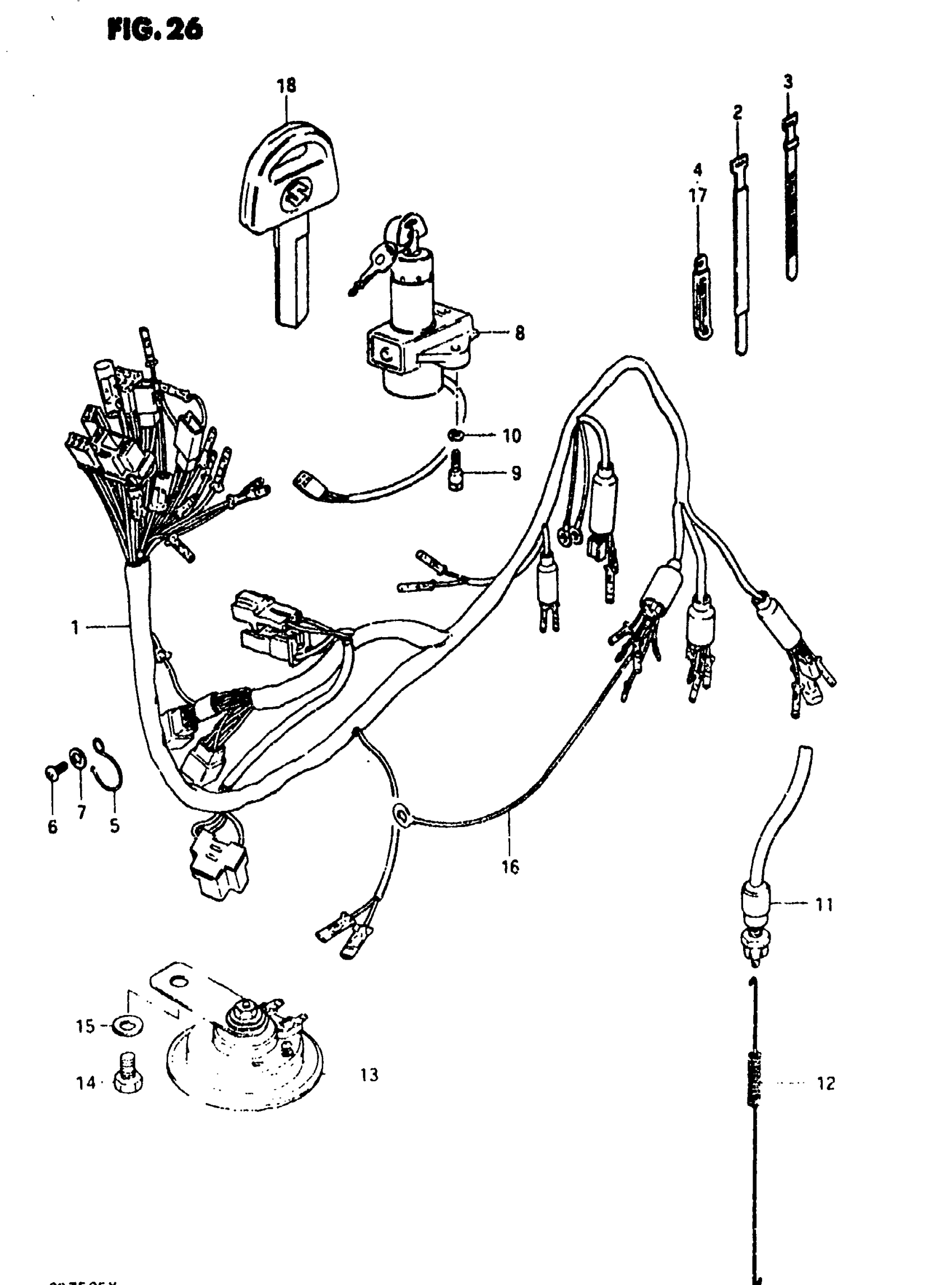

Suzuki GS750E (1981) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS

36610-45410

Unavailable

2

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

3

CLAMP

09407-12402

$3.04

4

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

5

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

Unavailable

6

SCREW This part replaces 02112-06128.

02112-06127

$1.84

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

SWITCH ASSY, IGNITION | MODEL T This part replaces 37100-49200.

37100-49201

Unavailable

8

SWITCH ASSY, IGNITION | MODEL X; Includes Item(s) 9 - 10

37100-49201

Unavailable

9

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

SWITCH, REAR BRAKE LAMP | MODEL T This part replaces 37740-04570.

37740-48071

$19.18

11

SWITCH, REAR BRAKE LAMP | MODEL X This part replaces 37740-04571.

37740-48071

$19.18

12

SPRING This part replaces 09443-06030.

09443-06048-XC0

Unavailable

13

HORN ASSY This part replaces 38502-47000.

38502-49001

Unavailable

14

BOLT This part replaces 01107-08128.

01500-08127

$2.62

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

WIRE,OIL PRESSU | MODEL T This part replaces 36851-45400.

36851-46E01

Unavailable

16

WIRE,OIL PRESSU | MODEL X This part replaces 36851-45401.

36851-46E01

Unavailable

17

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

17

CLAMP This part replaces 09404-08401.

09404-08420

$3.16

18

KEY, BLANK | OPT

37146-47010

$18.39
