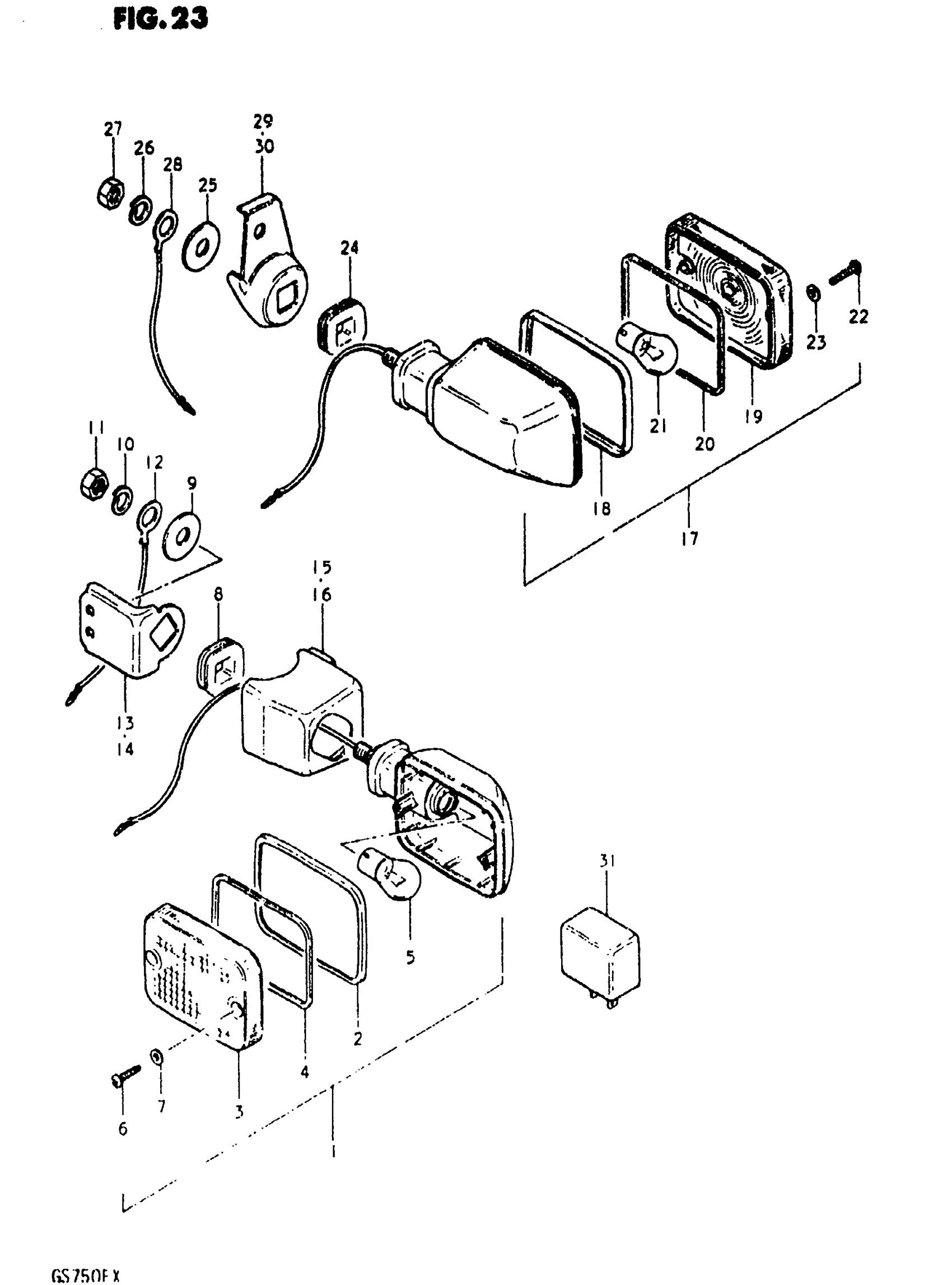

Suzuki GS750E (1981) TURN SIGNAL LAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 35601-49230.

35601-44124-999

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X; Includes Item(s) 2 - 7 This part replaces 35601-49231.

35601-44124-999

Unavailable

2

RIM

35611-49230

$13.28

3

LENS This part replaces 35612-49230.

35612-49231

$17.75

4

GASKET

35613-49230

$5.38

5

BULB (12V,23W)

09471-12006

$3.98

6

SCREW This part replaces 03211-04208.

03211-04207

$1.49

7

GASKET

35627-43010

$2.28

8

CUSHION

09320-15002

$4.11

9

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

10

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

11

NUT This part replaces 08310-12108.

08310-00107

$2.19

12

LEAD WIRE, EARTH

36851-49000

Unavailable

13

BRACKET, FRONT RH

35670-45400

Unavailable

14

BRACKET, FRONT LH

35680-45400

Unavailable

15

COVER, RH

35697-49200

Unavailable

16

COVER, LH

35698-49200

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 35601-44130.

35601-44184-999

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL X; Includes Item(s) 18 - 23 This part replaces 35601-44131.

35601-44184-999

Unavailable

18

RIM

35611-49230

$13.28

19

LENS This part replaces 35612-49230.

35612-49231

$17.75

20

GASKET

35613-49230

$5.38

21

BULB (12V, 23W)

09471-12006

$3.98

22

SCREW This part replaces 03211-04208.

03211-04207

$1.49

23

GASKET

35627-43010

$2.28

24

CUSHION

09320-15002

$4.11

25

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

27

NUT This part replaces 08310-12108.

08310-00107

$2.19

28

LEAD WIRE, EARTH

36660-33000

$4.52

29

BRACKET, REAR RH This part replaces 35620-49200.

35621-49200

Unavailable

30

BRACKET, REAR LH This part replaces 35640-49200.

35641-49200

Unavailable

31

RELAY ASSY, TURNSIGNAL This part replaces 38610-45031.

38610-31X50

$80.15
