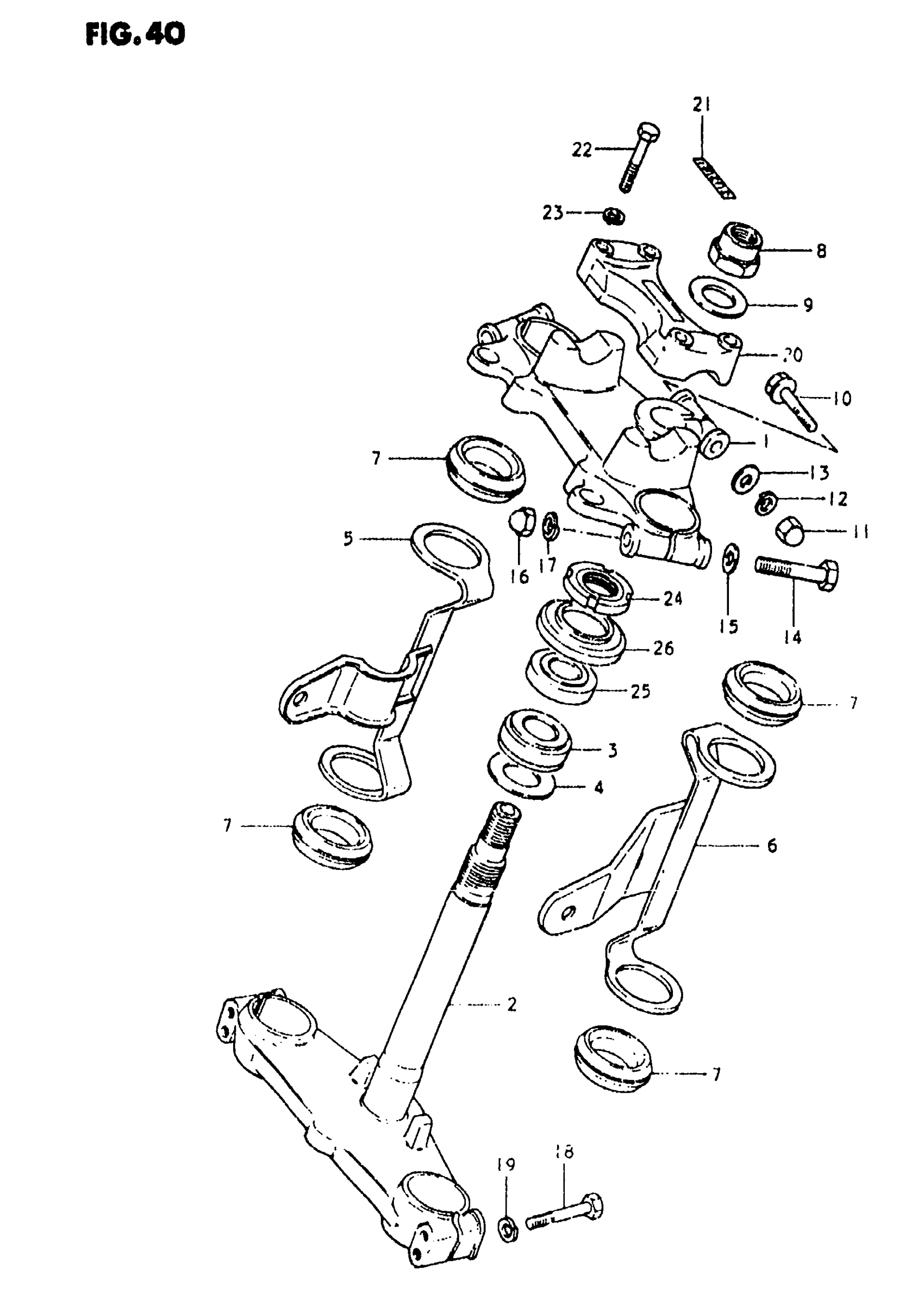

Suzuki GS750E (1981) STEERING STEM Diagram

#

Description
Price

1

STEM HEAD, STEERING (BLACK)

51311-47200-291

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51400-45841.

51400-45862

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

BRACKET, HEADLAMP RH | BLACK

51530-45400-291

Unavailable

6

BRACKET, HEADLAMP LH | BLACK

51540-45400-291

Unavailable

7

CUSHION This part replaces 51553-47000.

51553-34280

$5.50

8

NUT

51353-45000

$9.69

9

WASHER

51356-31700

Unavailable

10

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

11

NUT This part replaces 08313-11085.

08313-1008B

$2.80

12

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

BOLT | MODEL T This part replaces 01107-10558.

01500-1055A

$3.55

14

BOLT | MODEL X This part replaces 01517-10558.

01550-10557

$3.91

15

WASHER | MODEL T This part replaces 08322-11108.

08322-01107

$2.15

16

NUT | MODEL T This part replaces 08313-11108.

08313-10107

$2.50

16

NUT | MODEL X

09145-10002

Unavailable

17

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

18

BOLT This part replaces 01107-08458.

01500-08453

$2.50

19

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

20

CLAMP, HANDLEBAR UPPER | BLACK

56211-45400-291

Unavailable

21

EMBLEM

56212-45400

Unavailable

22

BOLT

01204-08357

$2.09

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

NUT, STEERING STEM

51631-28000

$17.37

25

BEARING

09265-25008

Unavailable

26

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32
