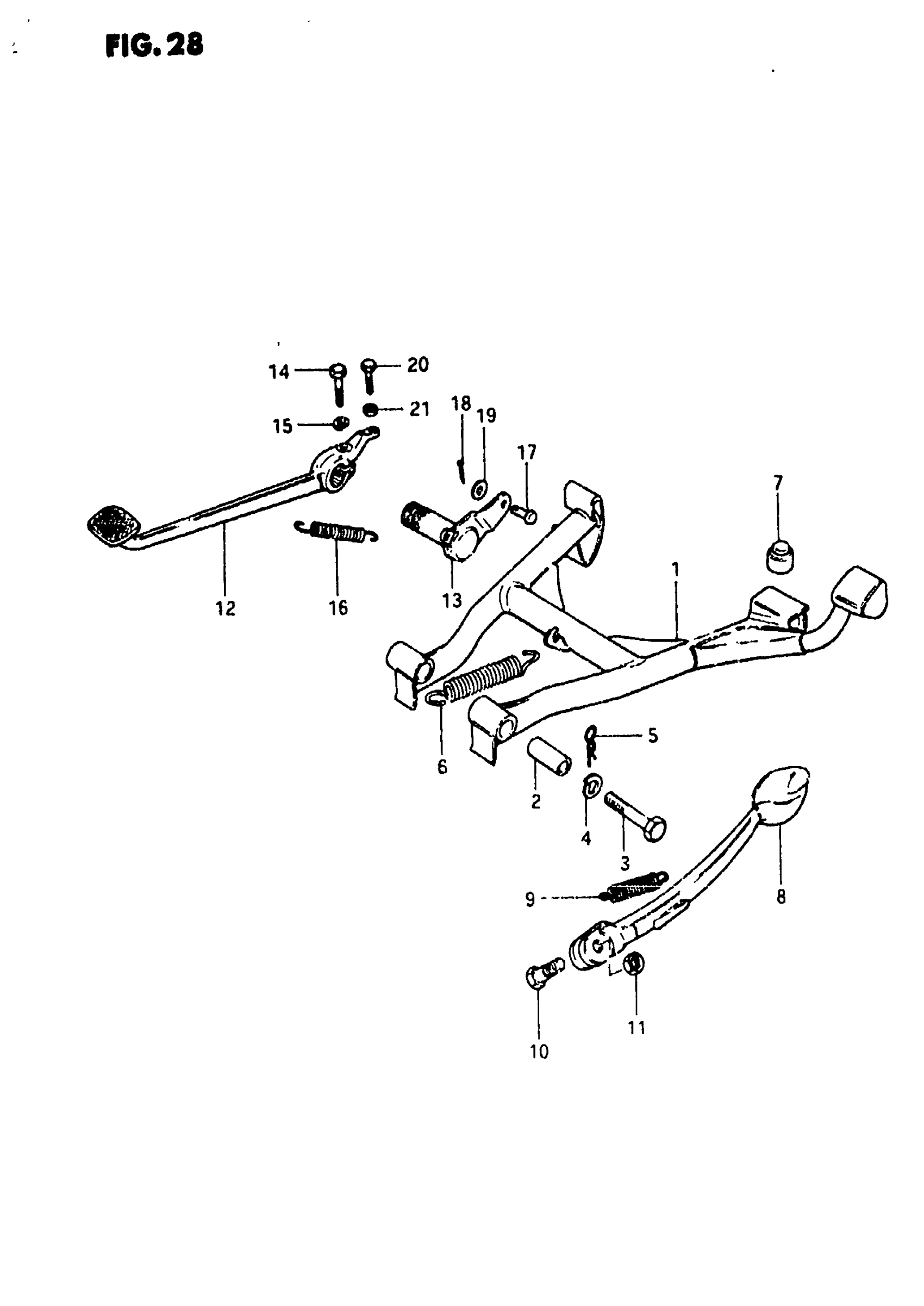

Suzuki GS750E (1981) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-49200

Unavailable

2

SPACER (10.7x15.9x38)

09180-10040

$2.56

3

BOLT, 10 X 65 This part replaces 09101-10018.

09101-10030

Unavailable

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

5

CLIP This part replaces 09385-10001.

09385-10005

$1.56

6

SPRING This part replaces 09443-20001.

09443-20001-XC0

$7.53

7

CUSHION

09321-10001

$2.61

8

STAND, PROP

42311-49200

Unavailable

9

SPRING This part replaces 09443-17005.

09443-17008-XC0

$6.98

10

BOLT (10X30)

09100-10067

$2.61

11

NUT This part replaces 08310-22108.

08310-00107

$2.19

12

PEDAL, BRAKE

43110-49200

Unavailable

13

ARM, BRAKE PEDAL ROD

43120-49210

Unavailable

14

BOLT This part replaces 01107-08258.

01500-08257

$2.50

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

SPRING

09443-14013

$2.98

17

PIN

09200-06029

Unavailable

18

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

BOLT This part replaces 01107-06208.

01500-06207

$2.28

21

.NUT This part replaces 08310-11068.

08310-00067

$2.13
