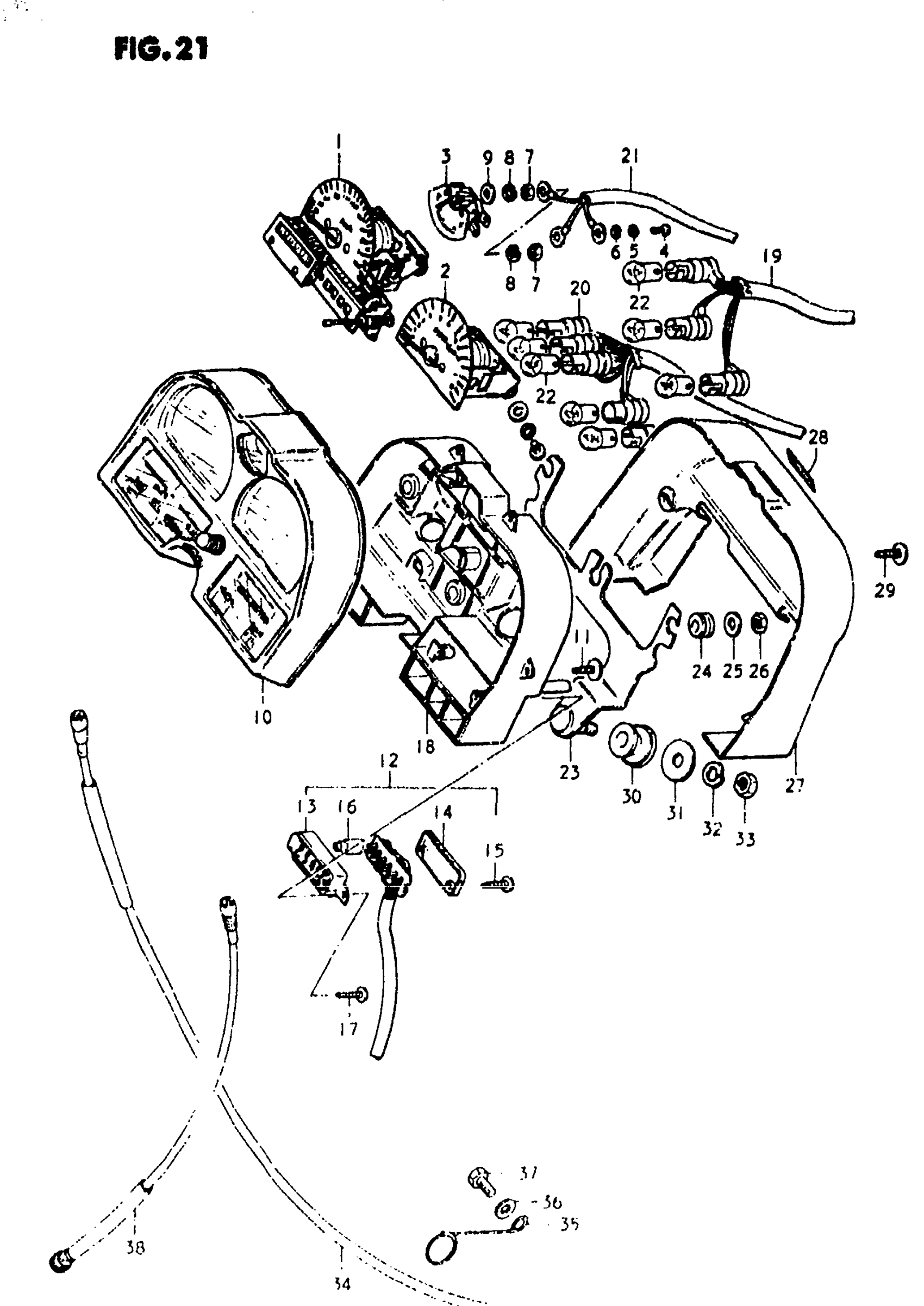

Suzuki GS750E (1981) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MILE & KILO SCALE This part replaces 34120-45410.

34120-45430

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 34220-45410.

34220-45400

Unavailable

3

FUELMETER

34320-45410

Unavailable

4

SCREW This part replaces 02112-03128.

02112-0312B

Unavailable

5

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

6

WASHER This part replaces 08322-21038.

08322-01037

$1.93

7

NUT This part replaces 08310-22048.

08310-00047

$2.23

8

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

9

WASHER This part replaces 08322-21048.

08322-01047

$1.86

10

HOOD, METER

34150-45410

Unavailable

11

SCREW This part replaces 03141-04128.

03142-0412B

$2.39

12

INDICATOR, GEAR POSITION | Includes Item(s) 13 - 16 This part replaces 36450-45101.

36450-49401

Unavailable

13

CASE, INDICATOR

36452-45100

Unavailable

14

COVER, LOWER

36454-45100

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

16

BULB

09471-12071

$7.20

17

SCREW

36457-45100

Unavailable

18

CASE

34111-45410

Unavailable

19

SOCKET, METER This part replaces 34173-45410.

34173-45411

Unavailable

19

SOCKET, METER | FOR WEDGE BASE BULB

34173-45411

Unavailable

20

SOCKET, PILOT LAMP This part replaces 36325-45410.

36325-45411

Unavailable

20

SOCKET, PILOT LAMP | FOR WEDGE BASE BULB

36325-45411

Unavailable

21

LEAD WIRE, FUELMETER

34378-45410

Unavailable

22

BULB (12V, 3.4W)

09471-12001

$1.65

22

BULB (12V, 3.4W) | WEDGE BASE BULB

09471-12028

$1.99

23

BRACKET | MODEL T This part replaces 34950-45410.

34950-45411

Unavailable

23

BRACKET | MODEL X

34950-45411

Unavailable

24

CUSHION

34189-45410

Unavailable

25

WASHER (5.5X18X1) This part replaces 34181-45410.

09160-05045

$1.93

26

NUT This part replaces 08310-11058.

08310-00057

$1.84

27

COVER, LOWER | MODEL T This part replaces 34193-45410.

34193-45411

Unavailable

27

COVER, LOWER | MODEL X; Includes Item(s) 28

34193-45411

Unavailable

28

EMBLEM

34157-45410

Unavailable

29

SCREW This part replaces 03141-04168.

03141-0416A

$2.27
