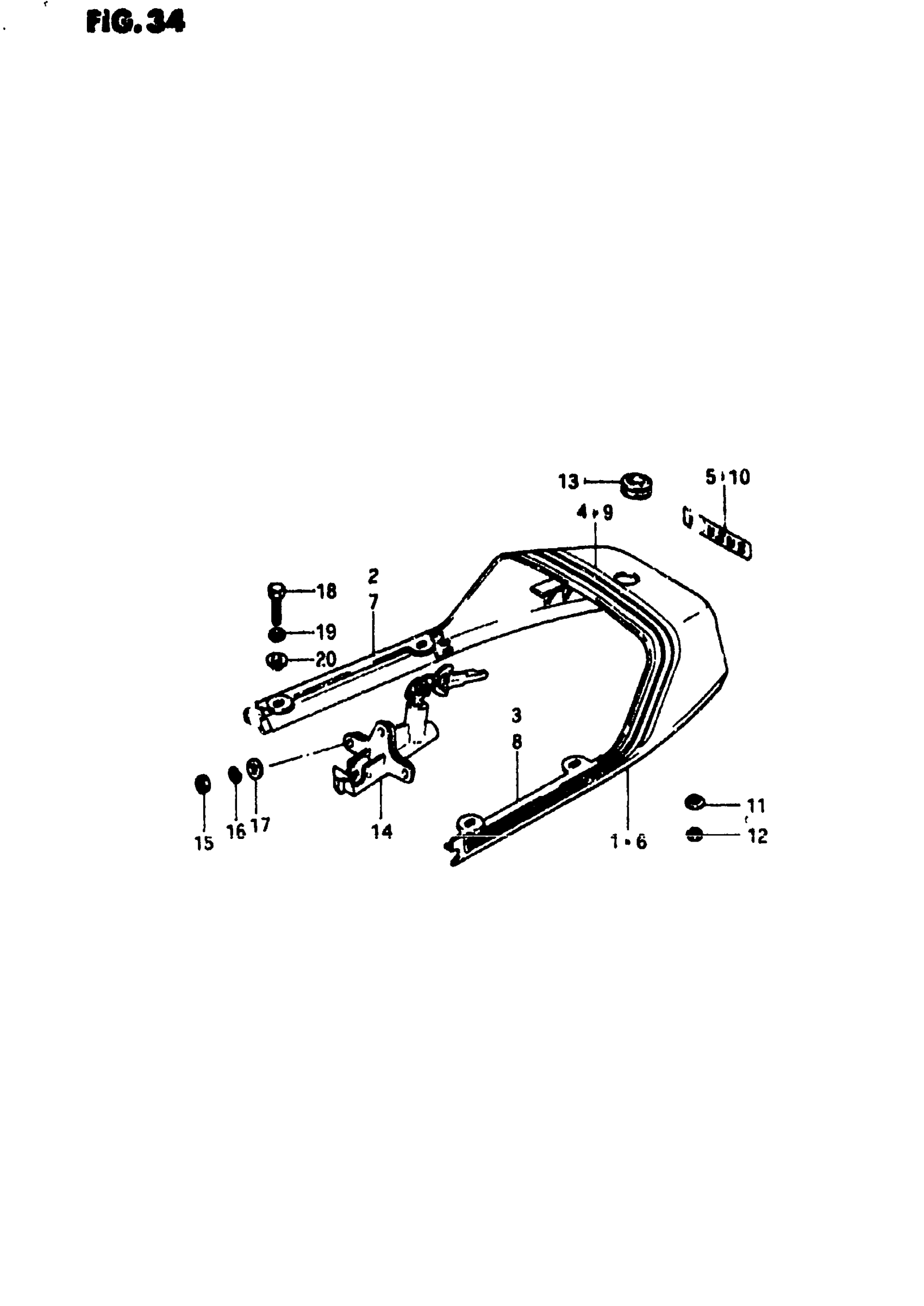

Suzuki GS750E (1981) SEAT TAIL COVER (GS750ET) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 5 This part replaces 45500-49830-737.

45510-49202

Unavailable

2

HOLDING SEAT RH This part replaces 45191-49200-737.

45191-49200

Unavailable

3

MOLDING SEAT, L This part replaces 45192-49200-737.

45192-49200

Unavailable

4

TAPE SET

68102-49870-72B

Unavailable

5

EMBLEM,SEAT TAI This part replaces 68166-49200-538.

68166-49201-538

Unavailable

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 10 This part replaces 45500-49200-10U.

45501-49850-10U

Unavailable

7

HOLDING SEAT RH This part replaces 45191-49200-10U.

45191-49200

Unavailable

8

MOLDING SEAT, L This part replaces 45192-49200-10U.

45192-49200

Unavailable

9

TAPE SET

68102-49870-72D

Unavailable

10

EMBLEM

68166-49200-998

Unavailable

11

WASHER

09169-06016

$1.65

12

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

13

GROMMET

45522-49200

$4.58

14

LOCK SET, SEAT This part replaces 95700-49820.

95700-49830

Unavailable

15

.NUT This part replaces 08310-22068.

08310-00067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

18

BOLT This part replaces 01107-06128.

01500-06127

$1.97

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

WASHER

09169-06016

$1.65
