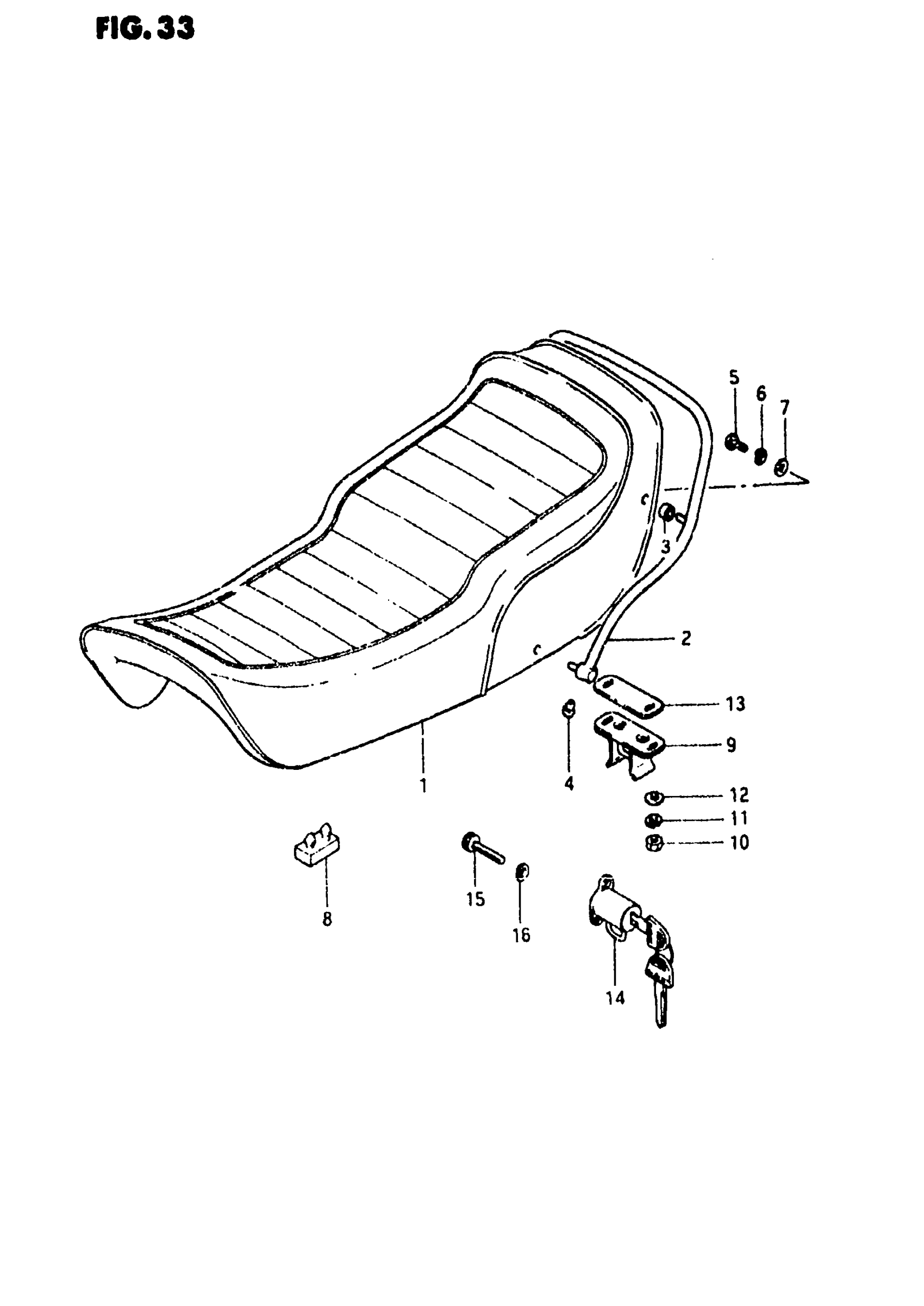

Suzuki GS750E (1981) SEAT Diagram

#

Description
Price

1

SEAT ASSY | MODEL T This part replaces 45100-49210-41G.

45100-49202-48H

Unavailable

1

SEAT ASSY | MODEL X; Includes Item(s) 2 - 7 This part replaces 45100-49211-41G.

45100-49202-48H

Unavailable

2

HANDLE, PILLION RIDER

46210-49200

Unavailable

3

CUSHION

46212-49000

Unavailable

4

END, HANDLE

46213-49000

Unavailable

5

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

WASHER This part replaces 08322-21088.

08322-01087

$2.13

8

CUSHION

09321-08006

$2.90

9

STRIKER, SEAT LOCK

45210-49201

Unavailable

10

.NUT This part replaces 08310-22068.

08310-00067

$2.13

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

WASHER (8.5X18X1) This part replaces 45217-49200.

09160-08043

$1.83

14

LOCK SET, HELME This part replaces 95700-35821.

95700-49850

Unavailable

15

BOLT This part replaces 09106-06005.

07130-06307

$4.32

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
