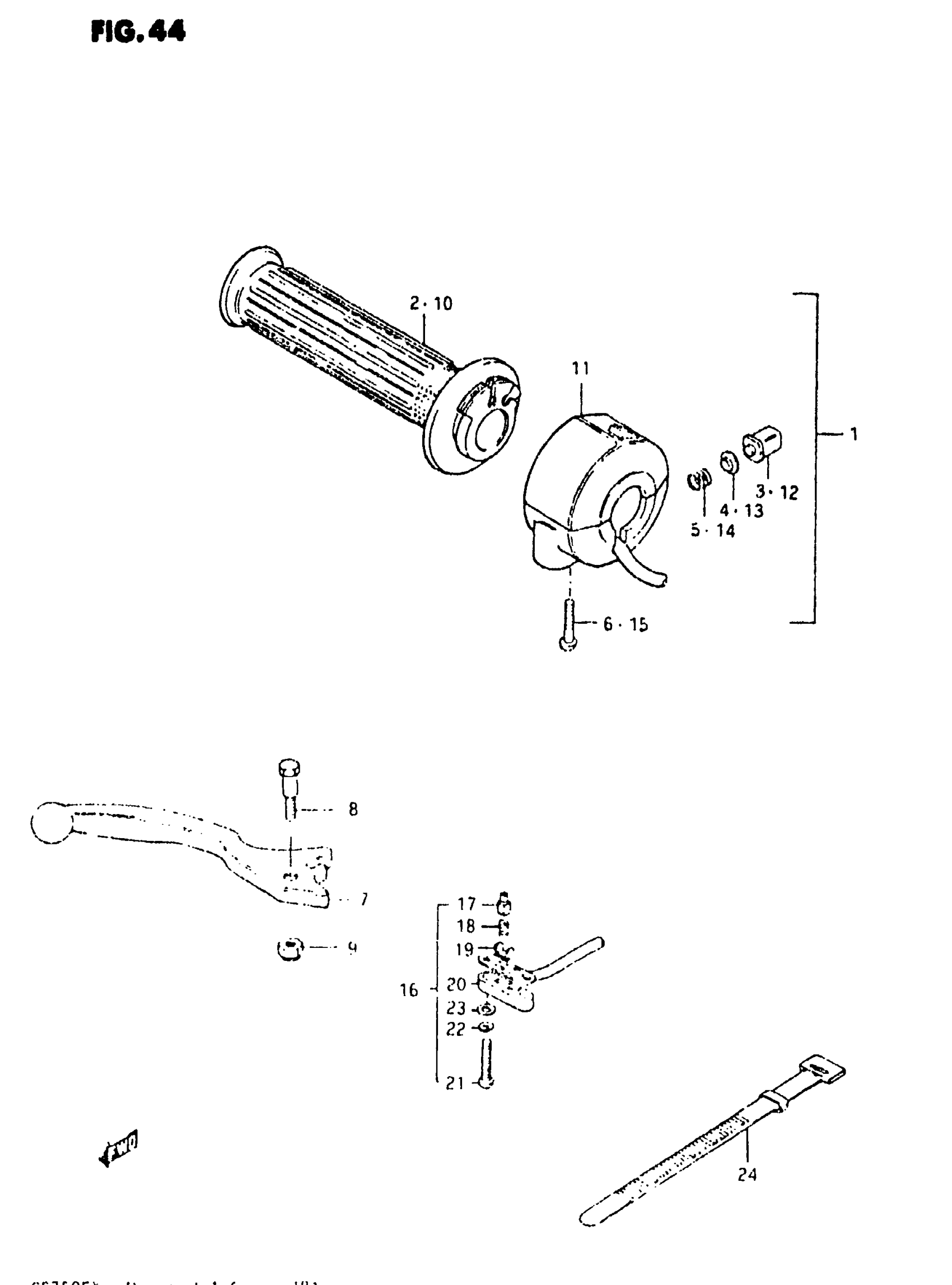

Suzuki GS750E (1981) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | MODEL T; Includes Item(s) 2 - 9 This part replaces 57100-47010.

57100-47500

Unavailable

2

GRIP, THROTTLE | MODEL T This part replaces 57110-44010.

57110-49510

Unavailable

3

BUTTON, STARTING | MODEL T

57371-45000

$4.52

4

CONTACT | MODEL T

57372-45000

$4.45

5

SPRING | MODEL T

57382-45000

$3.37

6

SCREW | MODEL T This part replaces 02112-05258.

02112-05257

$1.49

7

LEVER, BRAKE

57420-49101

$34.15

8

BOLT

57431-18621

$8.28

9

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

10

GRIP, THROTTLE This part replaces 57110-44011.

57110-49510

Unavailable

11

GRIP ASSY, THROTTLE | MODEL X; Includes Item(s) 12 - 15 This part replaces 57100-44130.

57100-47500

Unavailable

12

BUTTON, STARTING | MODEL X

57371-45000

$4.52

13

CONTACT | MODEL X

57372-45000

$4.45

14

SPRING | MODEL X

57382-45000

$3.37

15

SCREW | MODEL X This part replaces 02112-05258.

02112-05257

$1.49

16

SWITCH ASSY, ST | Includes Item(s) 17 - 23 This part replaces 57460-49100.

57460-45500

$35.23

17

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

18

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

19

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

20

COVER

57481-33010

$5.84

21

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

22

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

23

WASHER This part replaces 08322-21038.

08322-01037

$1.93

24

BAND (L:120)

09407-12402

$3.04
