Partiron

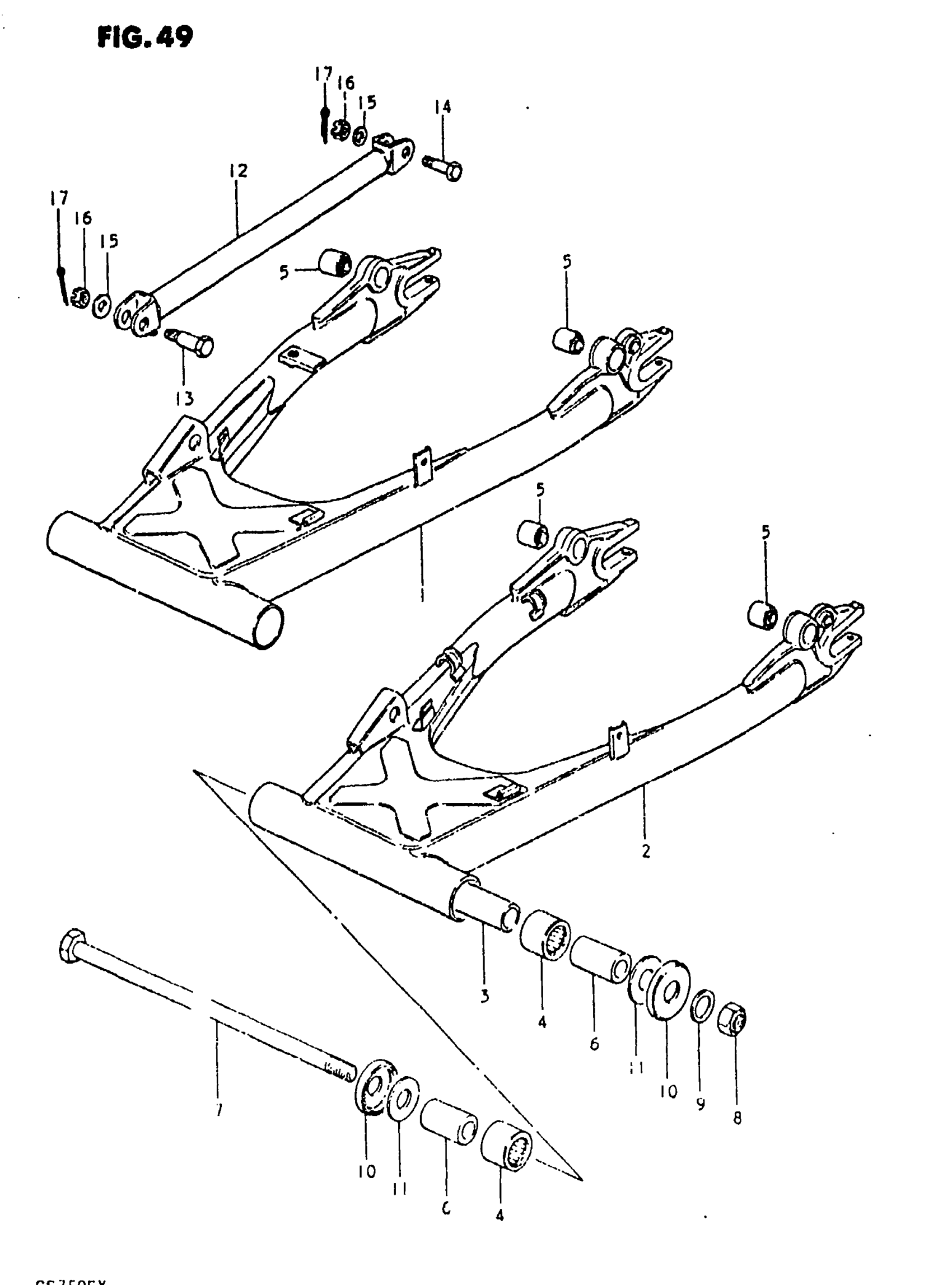

Suzuki GS750E (1981) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM (BLACK) | WITH 69480-49002 This part replaces 61100-45840-019.

61100-45861-019

Unavailable

2

REAR SWINGING ARM (BLACK) | WITH 69480-49003 MODEL T, F NO. 102455 This part replaces 61100-45841-019.

61100-45861-019

Unavailable

2

REAR SWINGING ARM (BLACK) | WITH 61311-49002 MODEL T,F. NO. 102456~ MODEL X This part replaces 61100-45860-019.

61100-45861-019

Unavailable

2

REAR SWINGING ARM (BLACK) | MODEL X; Includes Item(s) 3 - 5

61100-45861-019

Unavailable

3

SPACER

61281-45001

Unavailable

4

BEARING

09263-22017

$22.58

5

BUSHING, REAR

09319-10008

$7.40

6

SPACER

61251-45001

$17.37

7

SHAFT,RR SWGARM | MODEL T This part replaces 61211-31001.

61211-3100V

Unavailable

7

SHAFT, PIVOT | MODEL X

61211-45400

Unavailable

8

NUT This part replaces 08319-21148.

08319-2114A

$3.96

9

WASHER This part replaces 08322-11148.

08322-01147

$1.91

10

COVER, DUST SEAL

61262-45002

$7.97

11

WASHER

09160-14020

$2.19

12

TORQUE LINK, REAR (BLACK)

64310-49000-019

Unavailable

13

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

14

BOLT, REAR

09101-10017

Unavailable

15

WASHER This part replaces 08322-11108.

08322-01107

$2.15

16

NUT This part replaces 08314-41108.

08314-4010B

$2.50

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
