1981 Suzuki GS750E Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1981 Suzuki GS750E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

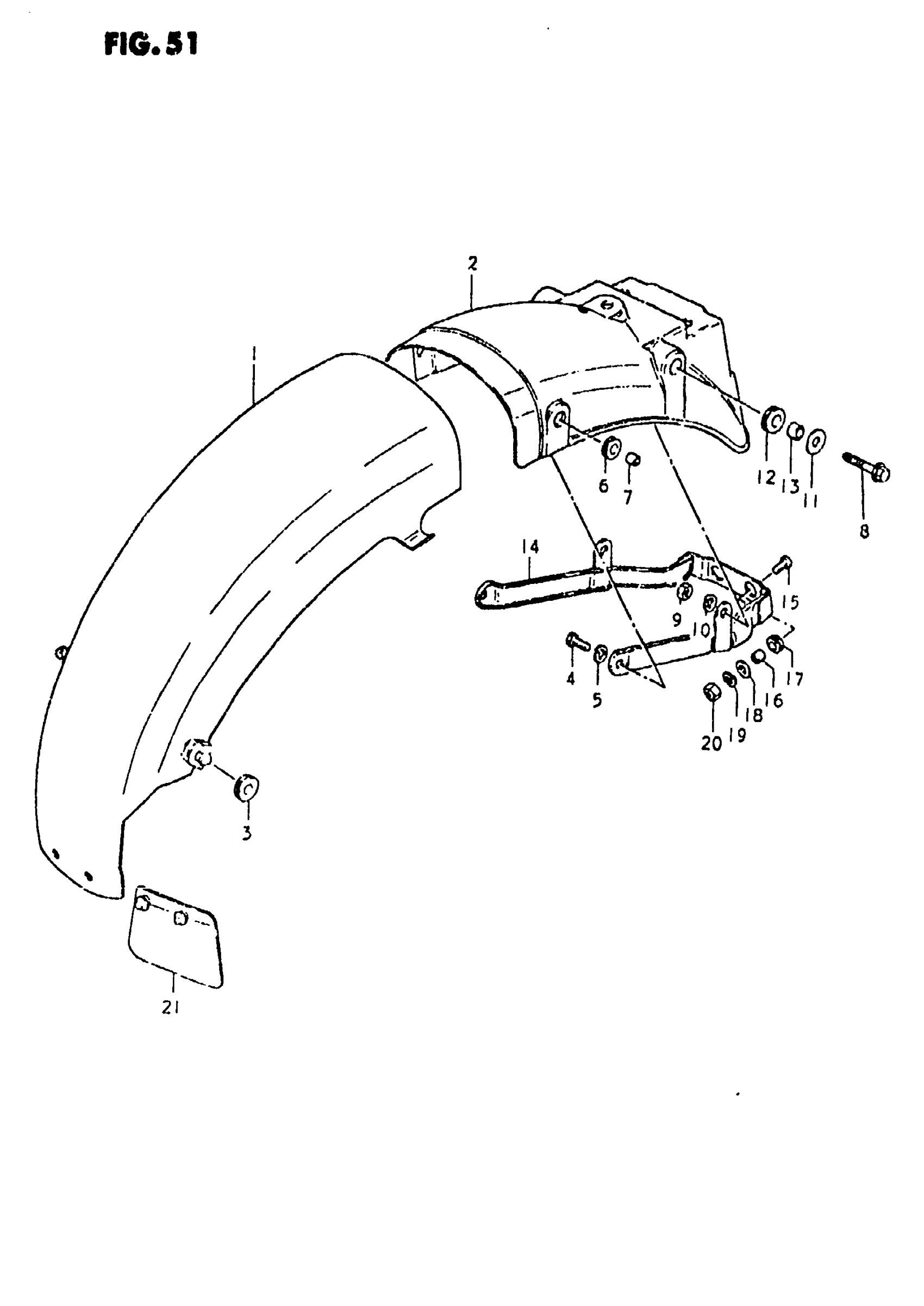

1981 Suzuki GS750E Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY,RR FENDER This part replaces 63112-49001.

63112-49004

1
Out of stock

2

BODY, REAR FENDER REAR | BLACK

63113-49200-291

1
Out of stock

3

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

2
Out of stock

4

BOLT This part replaces 01107-06208.

01500-06207

2
Out of stock

5

2

$2.28

In stock

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

7

SPACER (6.1X9X7.5)

09180-06038

2
Out of stock

8

BOLT This part replaces 01517-08358.

01550-08357

2
Out of stock

9

2

$1.93

In stock

10

2

$2.28

In stock

11

WASHER (8.5X26X1.2)

09160-08032

2
Out of stock

12

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

2
Out of stock

13

SPACER This part replaces 09180-08021.

09180-08188

2
Out of stock

14

REINFORCEMENT, REAR FENDER

63120-49000

1
Out of stock

15

SCREW

02142-06207

2
Out of stock

16

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

2
Out of stock

17

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

2
Out of stock

18

WASHER This part replaces 09160-06012.

09160-06054

2
Out of stock

19

2

$2.28

In stock

20

.NUT This part replaces 08310-11068.

08310-00067

2
Out of stock

21

MUD GUARD, REAR FENDER

63411-31900

1
Out of stock
