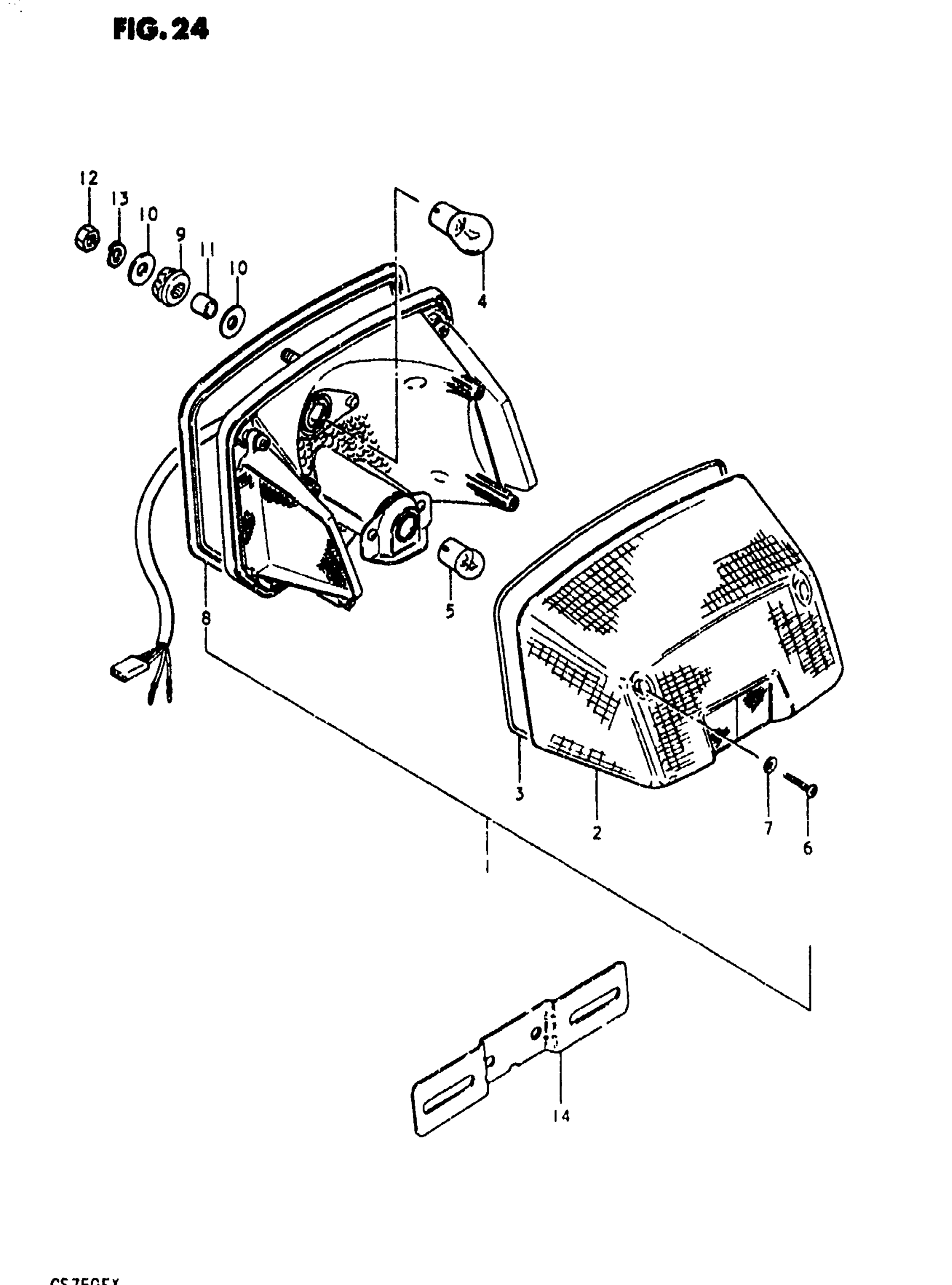

Suzuki GS750E (1981) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 8

35710-49230

Unavailable

2

LENS

35712-49230

Unavailable

3

GASKET

35713-49230

Unavailable

4

BULB (12V, 32/3CP)

09471-12035

$4.49

5

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

Unavailable

6

SCREW This part replaces 03211-04208.

03211-04207

$1.49

7

GASKET

35627-43010

$2.28

8

GASKET

35733-49230

Unavailable

9

CUSHION

09320-09010

$2.84

10

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

11

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

$2.63

12

.NUT This part replaces 08310-11068.

08310-00067

$2.13

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

PLATE, LICENCE

35927-49230

Unavailable
