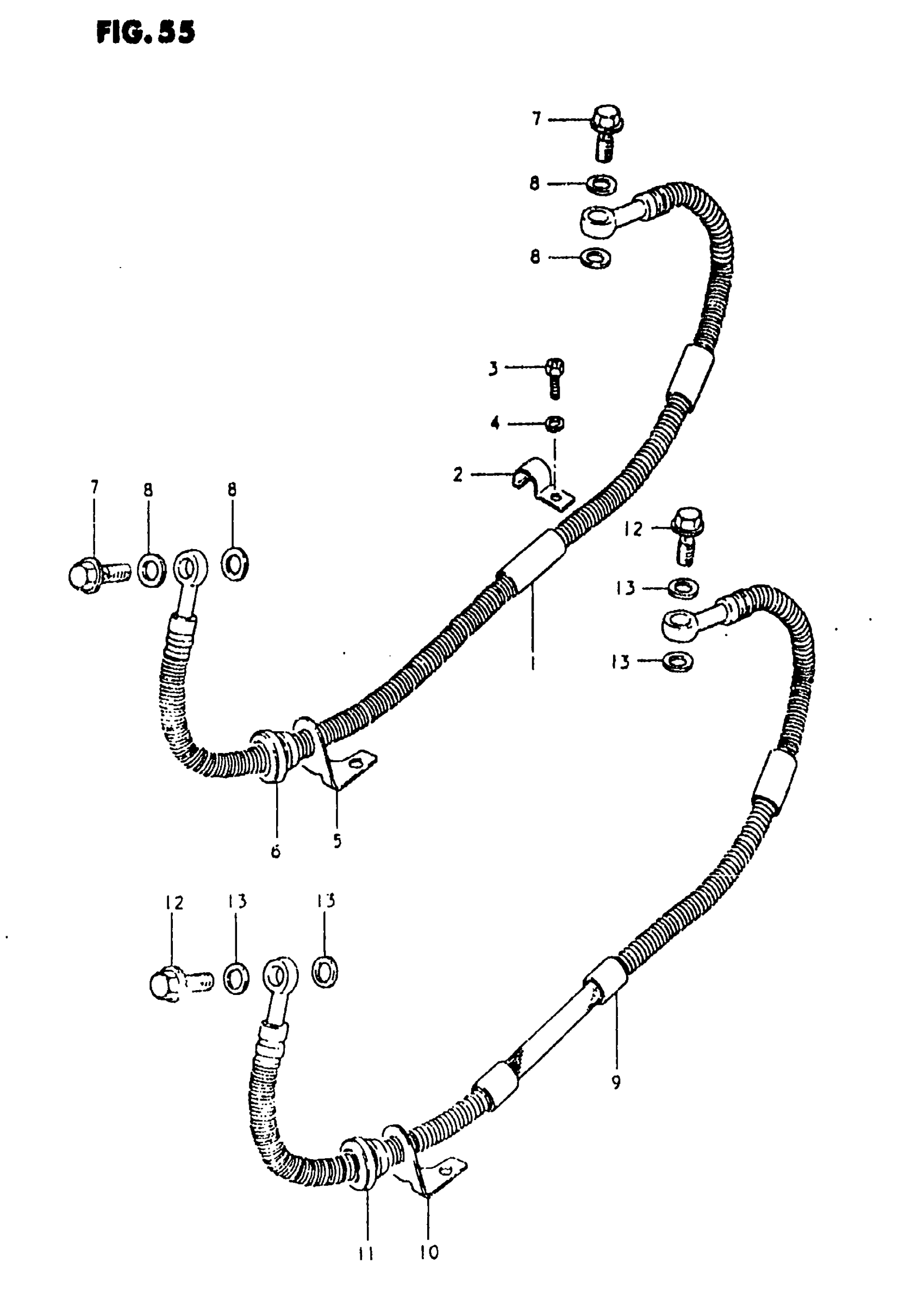

Suzuki GS750E (1981) REAR BRAKE HOSE Diagram

#

Description
Price

1

HOSE, REAR BRAKE NO. 1 | MODEL T; FOR 61100-45840-019

69480-49002

Unavailable

2

CLAMP | MODEL T

69268-49000

Unavailable

3

BOLT | MODEL T

09128-06013

$1.49

4

LOCK WASHER | MODEL T This part replaces 08321-21068.

08321-01067

$2.13

5

GUIDE, BRAKE HOSE | MODEL T

69243-47000

Unavailable

6

GROMMET,BRAKE H | MODEL T This part replaces 59244-36200.

59244-36201

$4.00

7

UNION | MODEL T This part replaces 09360-10007.

09360-10017

$3.42

8

WASHER (10X15X1.5) | MODEL T This part replaces 09161-10005.

09161-10009

$1.84

9

HOSE, REAR BRAKE NO.1 | MODEL T,X; FOR 61100-45841-019

69480-49003

Unavailable

10

GUIDE, BRAKE HOSE | MODEL T,X

69243-47000

Unavailable

11

GROMMET,BRAKE H | MODEL T,X This part replaces 59244-36200.

59244-36201

$4.00

12

UNION | MODEL T,X This part replaces 09360-10007.

09360-10017

$3.42

13

WASHER (10X15X1.5) | MODEL T,X This part replaces 09161-10005.

09161-10009

$1.84
