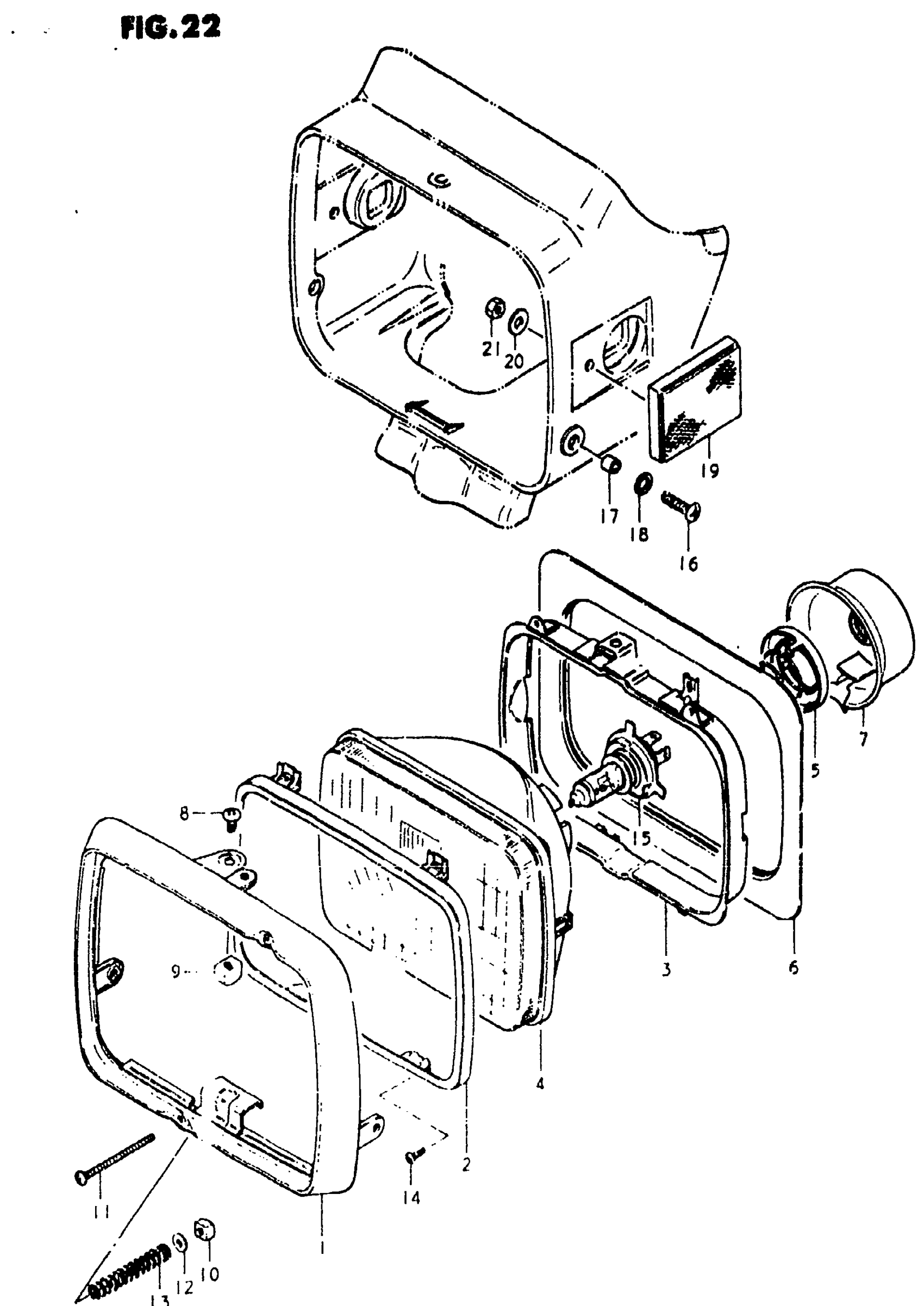

Suzuki GS750E (1981) HEADLAMP Diagram

#

Description
Price

0

HEADLAMP ASSY | Includes Item(s) 1 - 14

35100-49230-999

Unavailable

1

RIM

35111-49200

Unavailable

2

RING

35127-49200

Unavailable

3

RING, MOUNTING

35130-49200

Unavailable

4

UNIT

35121-49230

Unavailable

5

HOLDER, BULB

35136-49200

Unavailable

6

SHADE

35129-49200

Unavailable

7

COVER, SOCKET This part replaces 35173-49200.

35173-38A00

$16.87

8

SCREW This part replaces 02112-05128.

02112-05127

$1.97

9

NUT

35152-49200

Unavailable

10

NUT

35135-45600

$3.65

11

SCREW This part replaces 35151-49200.

35151-45900

$3.65

12

WASHER This part replaces 35157-48510.

35157-27630

$3.25

13

SPRING

35154-49200

$5.50

14

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

15

BULB (12V, 60/55W, H4)

09471-12060

$25.15

16

SCREW

02142-05167

$1.49

17

SPACER This part replaces 09180-05012.

09180-05047

$2.12

18

WASHER

09168-08011

Unavailable

19

REFLEX REFLECTOR, FRONT

35950-49230

Unavailable

20

WASHER

09160-05013

$1.49

21

NUT This part replaces 08310-11058.

08310-00057

$1.84
