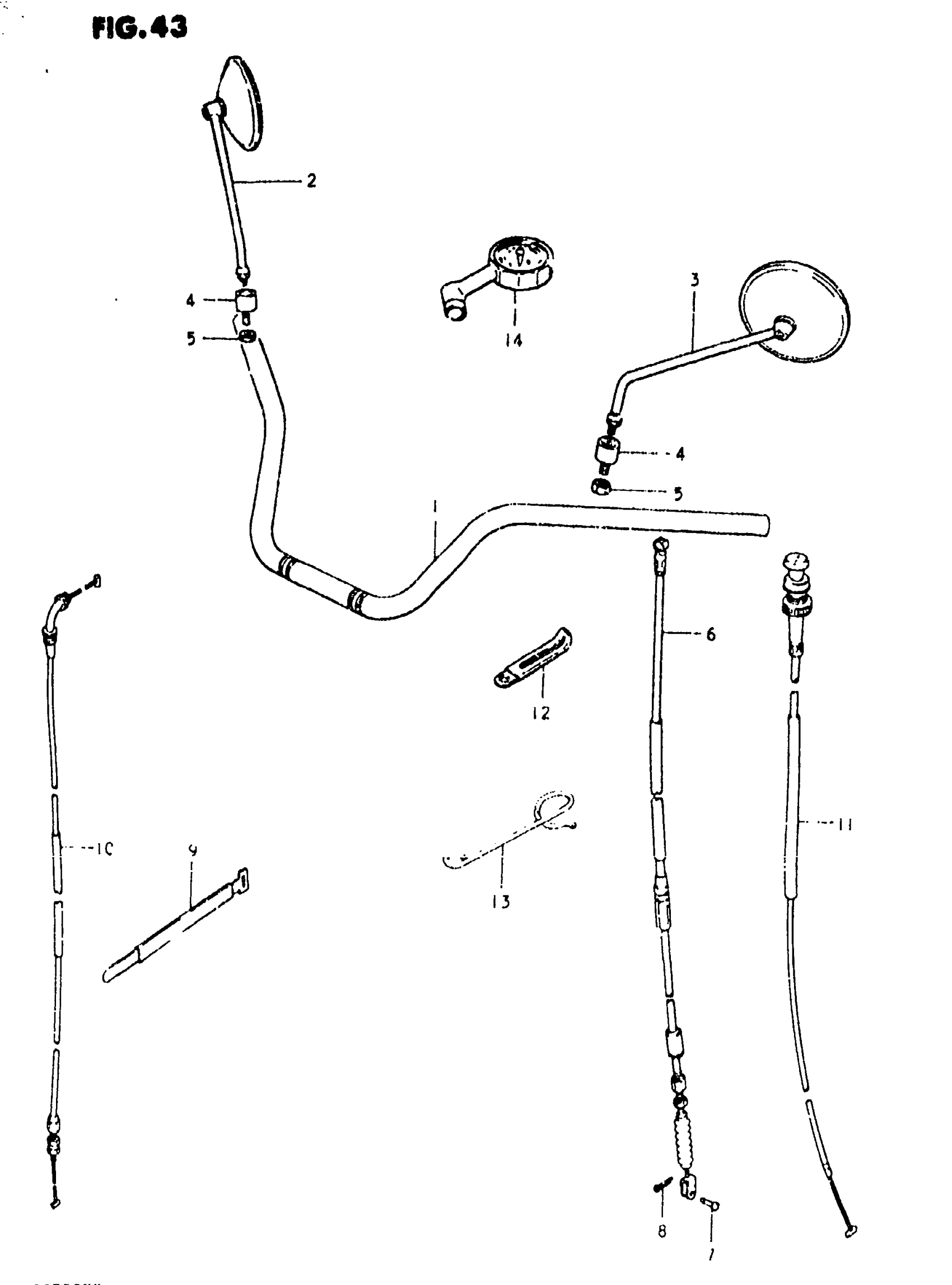

Suzuki GS750E (1981) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-45400

Unavailable

2

MIRROR ASSY,RR This part replaces 56500-45100.

56500-38AB2

$357.02

3

MIRROR ASSY,RR This part replaces 56600-45100.

56500-38AB2

$357.02

4

CUSHION, REAR VIEW MIRROR This part replaces 56700-31001.

56700-45400

$21.90

5

NUT This part replaces 08310-22108.

08310-00107

$2.19

6

CABLE, CULTCH

58200-49001

Unavailable

7

PIN

09200-06011

Unavailable

8

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

9

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

10

CABLE, THROTTLE This part replaces 58300-45400.

58300-44232

Unavailable

11

CABLE, STARTER This part replaces 58400-47000.

58400-45110

Unavailable

12

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

13

CLAMP This part replaces 58626-45100.

58626-45101

Unavailable

14

GAUGE, FRONT FORK AIR | MODEL X

96200-41330

Unavailable
