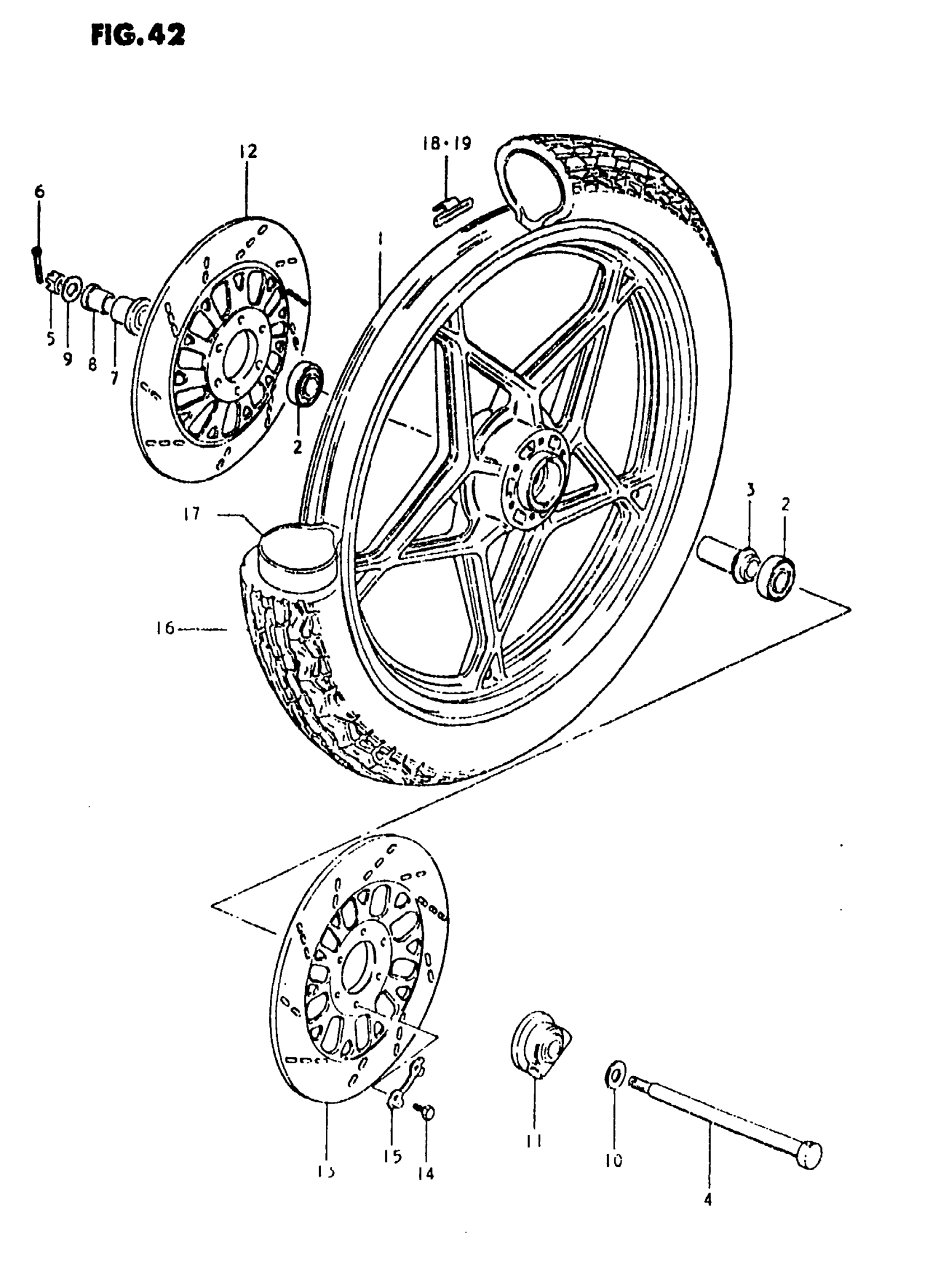

Suzuki GS750E (1981) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 54111-47604-12U.

54111-49350-291

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 54111-49300-12U.

54111-49350-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-18400

$20.45

4

AXLE, FRONT

54711-49000

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING RH

54740-18402

Unavailable

8

SPACER, FRONT AXLE

54741-49101

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.84

10

WASHER, LH

09160-15002

$1.91

11

BOX ASSY,SPEEDO This part replaces 54600-49100.

54600-49101

$105.57

12

DISK, FRONT BRAKE RH

59211-45250

Unavailable

13

DISK, FRONT BRAKE LH

59221-45250

Unavailable

14

BOLT

09100-08140

$2.10

15

WASHER

09169-08016

$2.41

16

TIRE, FRONT (3.25 H19) | IRC

55100-45011

Unavailable

16

TIRE (3.25H19) IRC | BS This part replaces 55100-45031.

55100-45011

Unavailable

16

TIRE, FRONT (3.25 H19) | BS MODEL X

55100-45430

Unavailable

17

TUBE This part replaces 55200-15010.

55200-44611

$33.73

18

BALANCER (20G) | (0~3)

55411-47001

Unavailable

19

BALANCER (30G) | (0~3)

55412-47001

Unavailable
