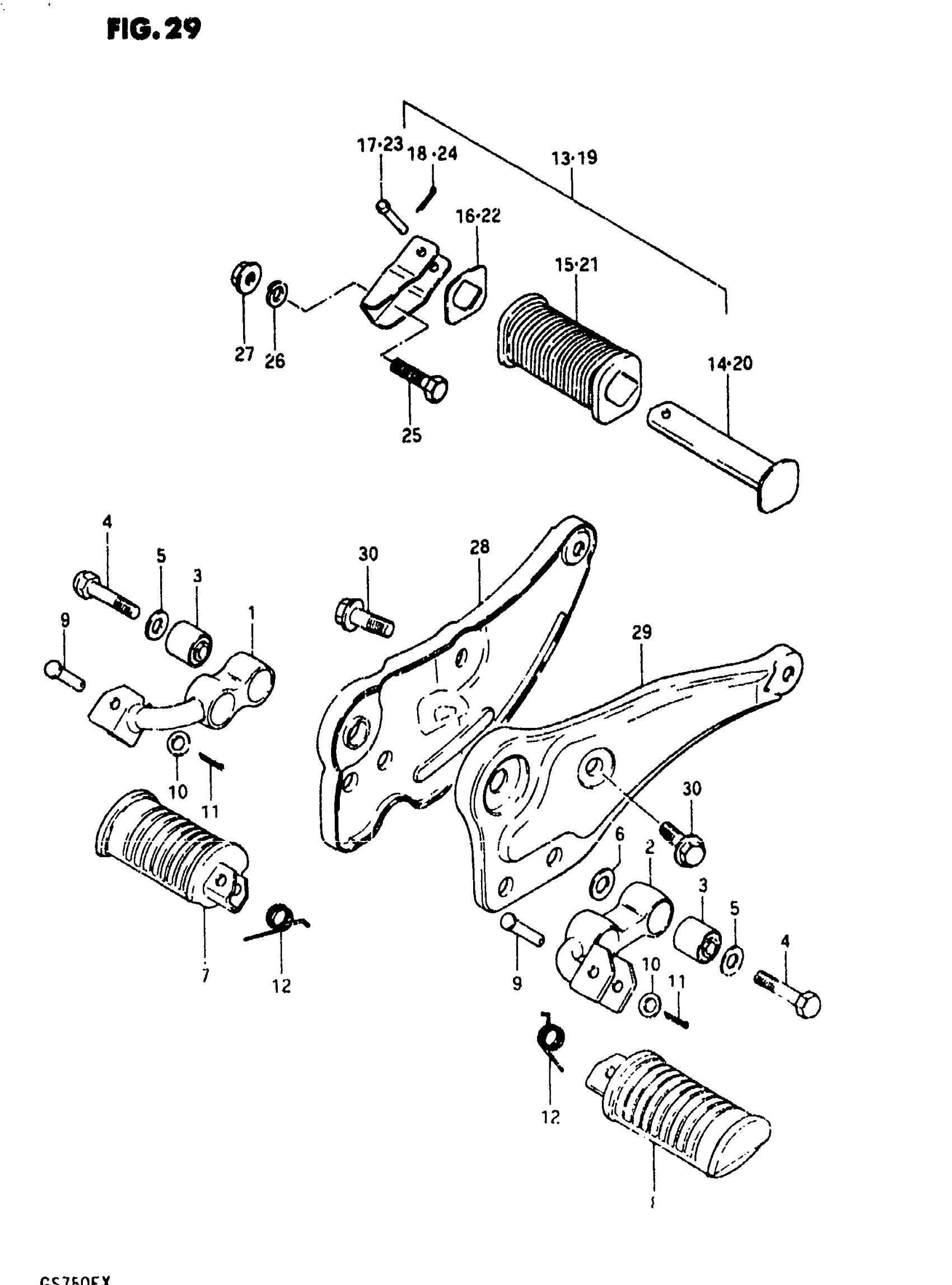

Suzuki GS750E (1981) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43510-49210

Unavailable

2

BAR, FRONT FOOTREST LH

43520-49210

Unavailable

3

BUSHING

09319-10008

$7.40

4

BOLT

09104-10009

Unavailable

5

WASHER This part replaces 09160-10013.

09160-10123

$2.12

6

WASHER This part replaces 09160-10058.

09160-10005

$1.87

7

RUBBER,PILLION This part replaces 43550-49002.

43550-37310

$25.47

8

FOOTREST LH This part replaces 43560-49002.

43560-37310

$32.98

9

PIN

09200-08002

$2.05

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

SPRING

09448-14012

$3.04

13

FOOTREST, PILLION RH | ~F.NO.508788 This part replaces 43600-49200.

43600-49201

Unavailable

13

FOOTREST, PILLION LH | ~F.NO.508788; Includes Item(s) 14 - 18 This part replaces 43700-49200.

43700-49201

Unavailable

14

BAR, RH | ~F.NO.508788 This part replaces 43610-49200.

43610-49201

Unavailable

14

BAR, LH | ~F.NO.508788 This part replaces 43620-49200.

43620-49201

Unavailable

15

RUBBER | ~F.NO.508788 This part replaces 43612-49200.

43612-49201

Unavailable

16

WASHER | ~F.NO.508788 This part replaces 43631-49200.

43631-45001

Unavailable

17

PIN | ~F.NO.508788

09200-06010

$1.72

18

.COTTER PIN | ~F.NO.508788 This part replaces 04111-20158.

04111-2015A

$1.49

19

FOOTREST, PILLION RH | F.NO.508789~

43600-49201

Unavailable

19

FOOTREST, PILLION LH | F.NO.508789~; Includes Item(s) 20 - 24

43700-49201

Unavailable

20

BAR, RH | F.NO.508789~

43610-49201

Unavailable

20

BAR, LH | F.NO.508789~

43620-49201

Unavailable

21

COVER | F.NO.508789~

43612-49201

Unavailable

22

WASHER | F.NO.508789~ This part replaces 43631-49201.

43631-45001

Unavailable

23

PIN | F.NO.508789~

09200-06010

$1.72

24

.COTTER PIN | F.NO.508789~ This part replaces 04111-20158.

04111-2015A

$1.49

25

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

27

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

28

BRACKET, MUFFLER RH

43810-45400

Unavailable

29

BRACKET, MUFFLER LH

43820-45400

Unavailable

30

BOLT, PROP SHAFT REAR This part replaces 01527-10207.

01550-1020A

$3.05
