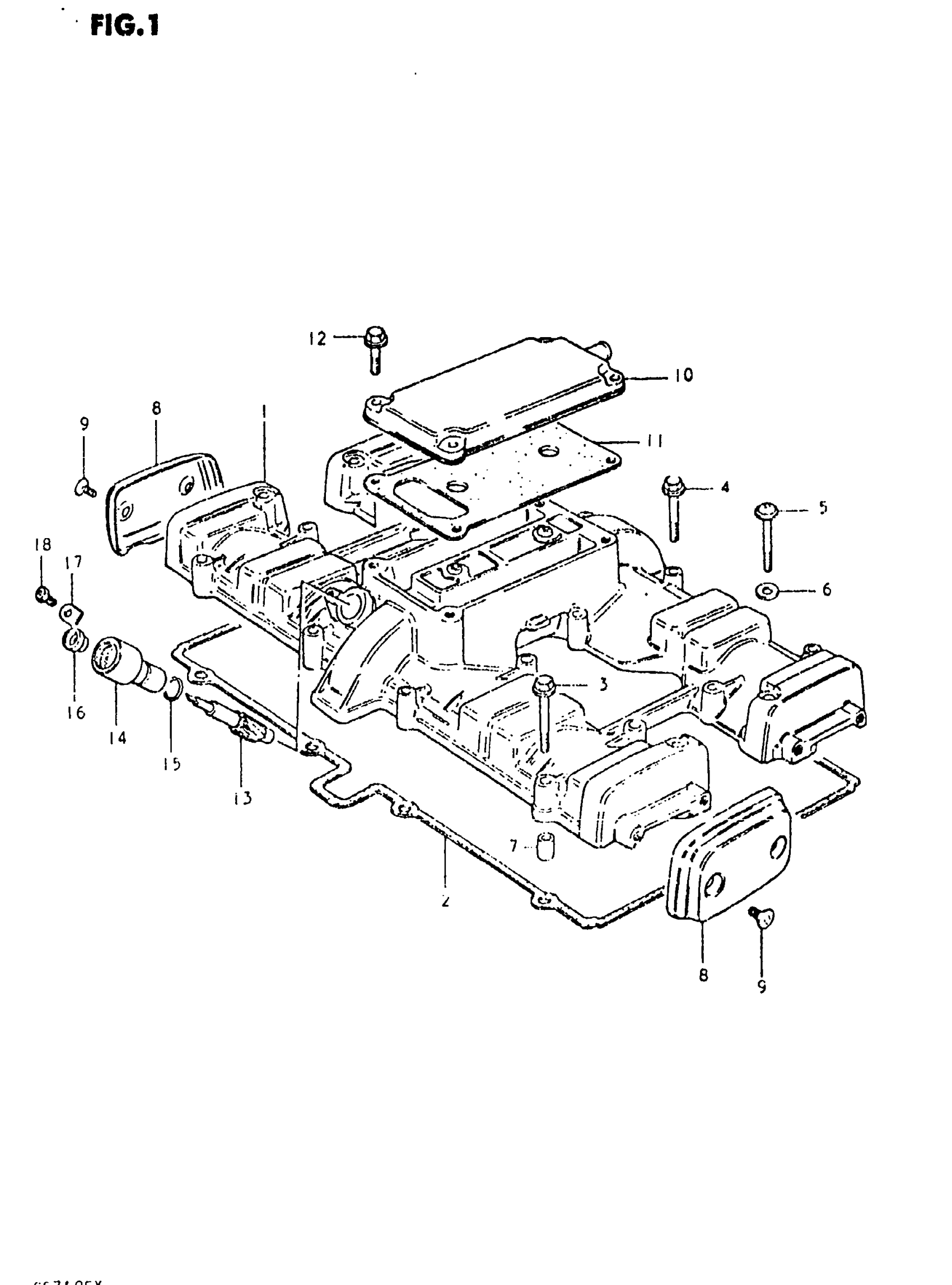

Suzuki GS750E (1981) CYLINDER HEAD COVER Diagram

NO DESCRIPTION AVAILABLE This part replaces 11171-45401.

11171-45402

Unavailable

GASKET,CYL HD C | MODEL T This part replaces 11173-49201.

11173-49207-H17

Unavailable

GASKET,CYL HD C | MODEL X This part replaces 11173-49204.

11173-49207-H17

Unavailable

BOLT This part replaces 01517-06408.

01550-06407

$2.69

BOLT This part replaces 01517-06358.

01550-06357

$2.77

SCREW This part replaces 02152-06408.

02112-16407

$3.03

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

PIN

09206-08001

$1.78

CAP, COVER | MODEL T This part replaces 11174-49201.

11174-49210

$20.97

CAP, COVER (LIGHT ALLOY) | MODEL X

11174-49210

$20.97

SCREW This part replaces 02132-05127.

02122-05127

$1.93

COVER, BREATHER This part replaces 11176-45400.

11176-45402

Unavailable

GASKET,BRTHR CV This part replaces 11177-45400.

11177-45400-H17

Unavailable

BOLT This part replaces 01517-06208.

01550-06207

$2.30

GEAR, TACHOMETER DRIVEN This part replaces 26431-49200.

26431-49201

Unavailable

SLEEVE This part replaces 26441-45000.

26441-49000

$30.58

SEAL BAND

26451-45000

$5.05

OIL SEAL

09289-05002

$8.43

PLATE

26449-33000

$4.35

SCREW

09128-05101

$1.49
