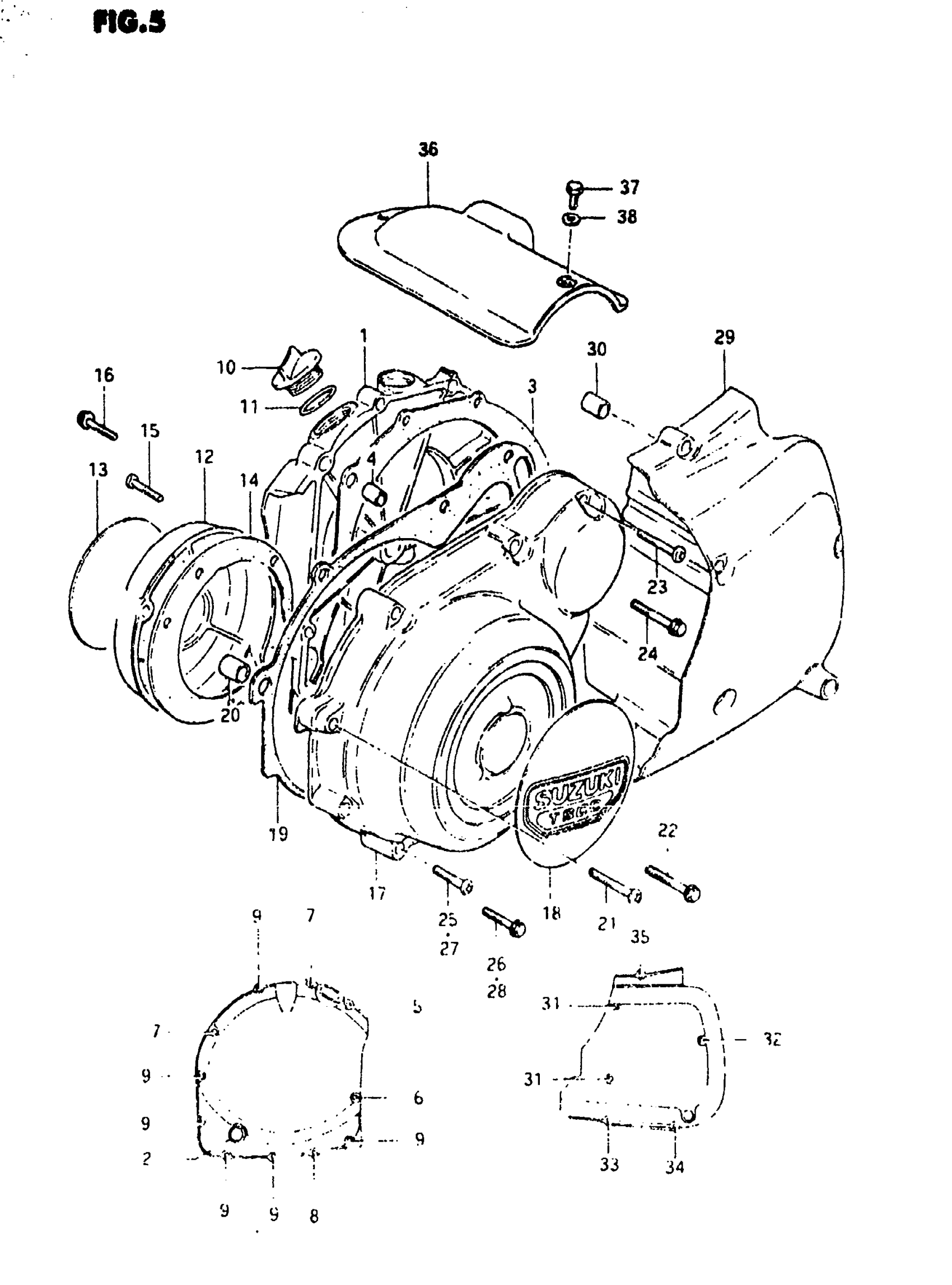

Suzuki GS750E (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | ~E. NO. 152514 This part replaces 11340-45400.

11340-45401

Unavailable

1

COVER, CLUTCH | E. NO. 152515~; Includes Item(s) 2

11340-45401

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CLUTCH C This part replaces 11482-45400.

11482-45400-H17

Unavailable

4

PIN

04211-09129

$1.65

5

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

5

BOLT This part replaces 01547-06408.

01547-06407

$2.32

6

SCREW This part replaces 02112-06358.

02112-06357

$1.78

6

BOLT This part replaces 01547-06358.

01547-06357

$2.03

7

SCREW This part replaces 02112-06308.

02112-06307

$1.97

7

BOLT This part replaces 01547-06308.

01547-06307

$2.03

8

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

BOLT This part replaces 01547-06258.

01547-06257

$2.03

9

SCREW This part replaces 02112-06208.

02112-06207

$1.78

9

BOLT This part replaces 01547-06208.

01547-06207

$2.01

10

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

11

O RING

09280-32005

$1.99

12

COVER, CONTACT BREAKER | MODEL T This part replaces 11381-49200.

11381-49202

$54.04

12

COVER, CONTACT BREAKER | MODEL X, ~E. NO. 152514 This part replaces 11381-49201.

11381-49202

$54.04

12

COVER, CONTACT BREAKER | MODEL X, E. NO. 152515~

11381-49202

$54.04

13

EMBLEM

68235-49200

$18.50

14

GASKET

11491-49200

Unavailable

15

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

16

BOLT This part replaces 01544-05308.

01547-05307

$2.30

17

COVER, GENERATOR | ~E. NO. 152514 This part replaces 11351-45400.

11351-45401

Unavailable

17

COVER, GENERATOR | E. NO. 152515~

11351-45401

Unavailable

18

EMBLEM

68233-49200

$18.86

19

GASKET,MAGNETO This part replaces 11483-49200.

11483-49210

$11.79

20

PIN

09106-13001

Unavailable

21

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

22

BOLT This part replaces 01547-06458.

01547-06457

$2.32

23

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

24

BOLT This part replaces 01547-06408.

01547-06407

$2.32

25

SCREW This part replaces 02112-06358.

02112-06357

$1.78

26

BOLT This part replaces 01547-06358.

01547-06357

$2.03

27

SCREW This part replaces 02112-06308.

02112-06307

$1.97

28

BOLT This part replaces 01547-06308.

01547-06307

$2.03

29

COVER, ENGINE SPROCKET | ~E.NO.152514 This part replaces 11360-49200.

11360-49201

Unavailable

29

COVER, ENGINE SPROCKET | E.NO.152515~

11360-49201

Unavailable

30

PIN

04211-09129

$1.65

31

SCREW This part replaces 02112-06958.

02112-0695B

$3.72

31

BOLT This part replaces 01547-06958.

01547-06957

$3.43

32

SCREW This part replaces 02112-06858.

02112-06857

$2.62

32

BOLT This part replaces 01547-06858.

01547-06857

$3.30

33

SCREW This part replaces 02112-06708.

02112-06707

$2.53

33

BOLT This part replaces 01547-06708.

01547-06707

$2.75

34

SCREW (6x55)

02112-06557

$2.53

34

BOLT This part replaces 01547-06558.

01547-06557

$2.32

35

SCREW This part replaces 02112-06308.

02112-06307

$1.97

35

BOLT This part replaces 01547-06308.

01547-06307

$2.03

36

COVER, STARTER MOTOR

11382-49002

$46.38

37

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

38

WASHER This part replaces 08322-21058.

08322-01057

$2.13
