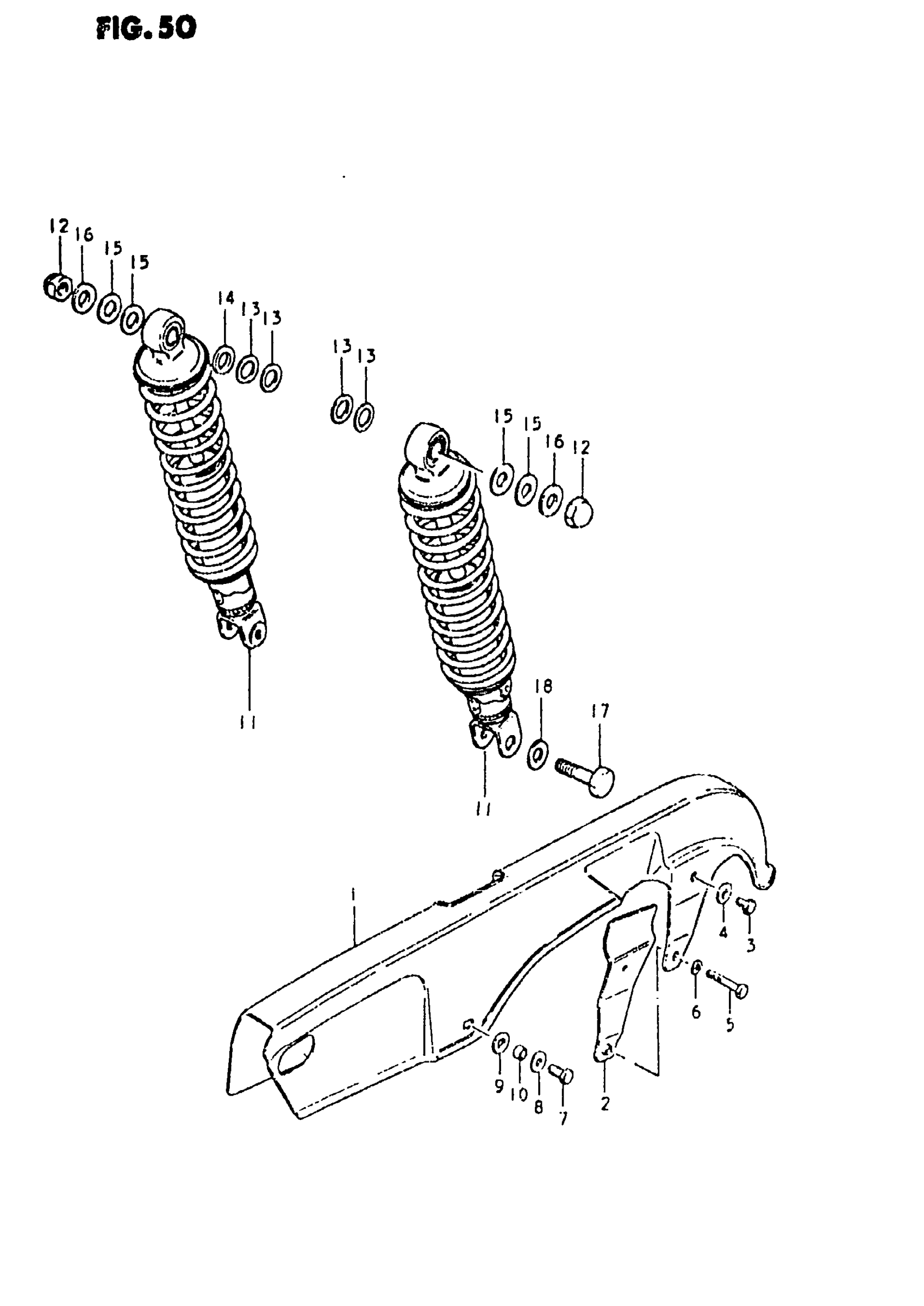

Suzuki GS750E (1981) CHAIN CASE - REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CHAIN CASE (BLACK) | MODEL T, ~F. NO. 102455, SEE NOTE This part replaces 61311-49001-019.

61311-49002-019

Unavailable

1

CHAIN CASE (BLACK) | MODEL T,F. NO.102456~ FOR 61100-45860-019 MODEL X

61311-49002-019

Unavailable

2

REINFORCEMENT, CHAIN CASE

61381-45000

Unavailable

3

BOLT

09100-06011

$1.67

4

WASHER

09169-06010

$2.60

5

BOLT This part replaces 01107-06258.

01500-06257

$1.97

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

BOLT This part replaces 01107-06108.

01500-06107

$2.06

8

WASHER (6.5X18X1.0)

09160-06028

$1.49

9

FUEL TANK UPPER WASHER This part replaces 09320-08005.

09161-08006

$2.07

10

SPACER This part replaces 09180-06032.

09180-06246

$2.12

11

ABSORBER ASSY,R | MODEL T This part replaces 62100-45400.

62100-45410

Unavailable

11

SHOCK ABSORBER, REAR | MODEL X

62100-45420

Unavailable

12

NUT This part replaces 08313-11108.

08313-10107

$2.50

13

WASHER This part replaces 08322-11128.

08322-01127

$1.84

14

WASHER, FRONT AXLE | 12.5x24x3.2 This part replaces 09160-12012.

09160-12082

$3.29

15

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

16

WASHER This part replaces 09160-10033.

09160-10128-XC0

$2.62

17

BOLT

09104-10002

$3.55

18

WASHER This part replaces 08322-11108.

08322-01107

$2.15
