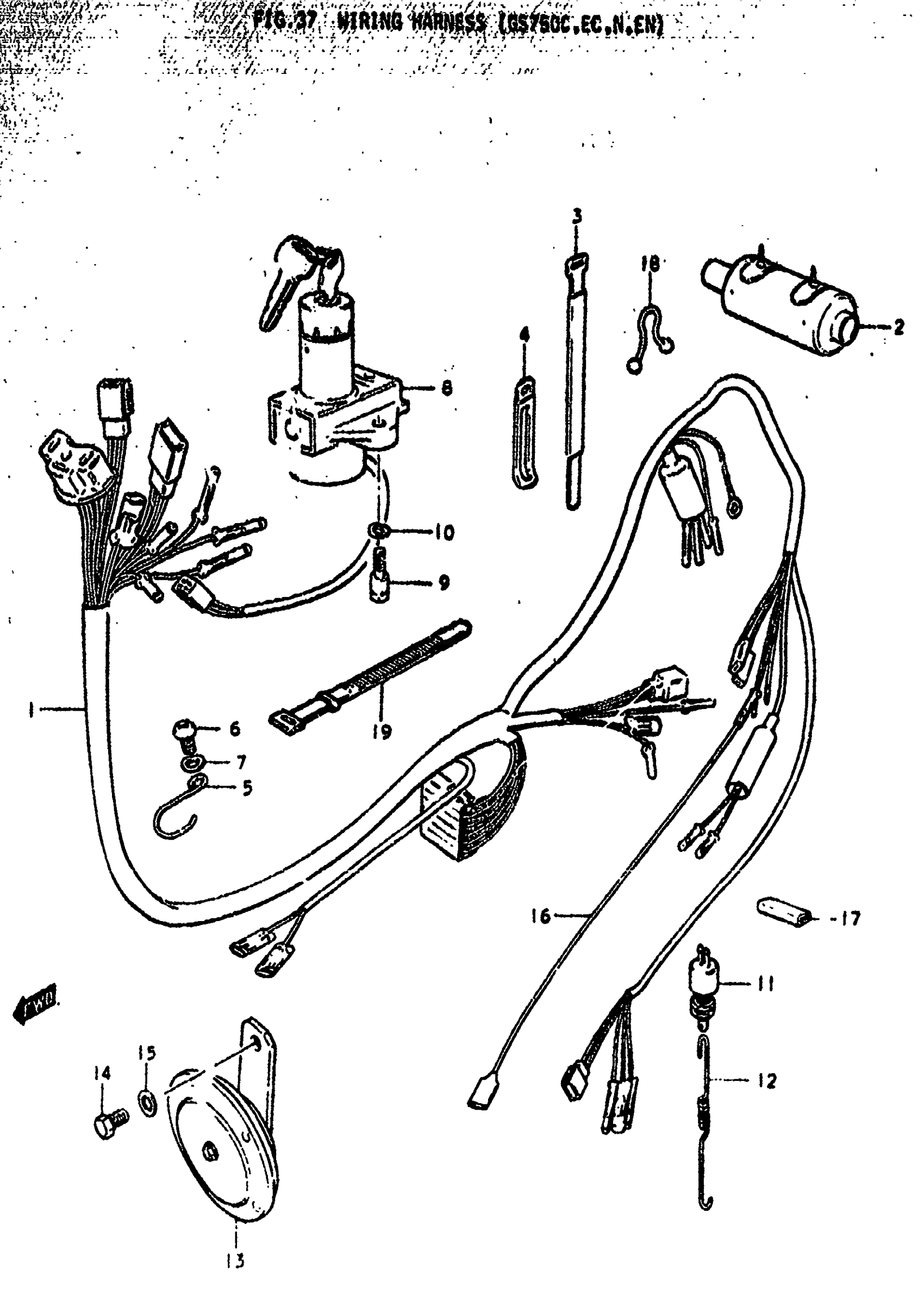

Suzuki GS750B (1979) WIRING HARNESS (GS750C Diagram

NO DESCRIPTION AVAILABLE | C&EC This part replaces 36610-45003.

36610-45005

Unavailable

WIRING HARNESS | N&EN

36610-45040

Unavailable

BOOT, WIRING HARNESS | C&EC,N&EN

36618-30610

$8.83

CLAMP | C&EC,N&EN; L:180 This part replaces 09407-18301.

09407-18302

$2.28

CLAMP(L:80) | C&EC,N&EN This part replaces 09404-06414.

09404-06036

$1.74

CLIP, WIRING HARNESS | C&EC,N&EN This part replaces 36619-44000.

36619-44002

Unavailable

SCREW | C&EC,N&EN This part replaces 02112-06128.

02112-06127

$1.84

WASHER | C&EC,N&EN This part replaces 08322-21068.

08322-01067

$2.13

SWITCH ASSY, IGNITION | C&EC,N&EN; Includes Item(s) 9 - 10 This part replaces 37100-47010.

37100-45301

Unavailable

BOLT | C&EC,N&EN This part replaces 37152-47010.

07130-0616B

$2.39

LOCK WASHER | C&EC,N&EN This part replaces 08321-21068.

08321-01067

$2.13

SWITCH, BRAKE LAMP | C&EC,N&EN

37610-53011

$30.75

SPRING | C&EC,N&EN This part replaces 09443-06018.

09443-06018-XC0

Unavailable

HORN ASSY | C&EC,N&EN This part replaces 38500-64130.

38502-49001

Unavailable

BOLT | C&EC,N&EN This part replaces 01107-08128.

01500-08127

$2.62

WASHER | C&EC,N&EN This part replaces 08322-11088.

08322-01087

$2.13

LEAD WIRE, PRESSURE SWITCH | C&EC,N&EN This part replaces 36853-45000.

36853-45001

Unavailable

PROTECTOR, WIRING HARNESS | C&EC,N&EN

36611-38000

Unavailable

CLIP | C&EC,N&EN This part replaces 09408-00011.

09408-00020

Unavailable

CLAMP | N&EN; L:120

09407-12402

$3.04
