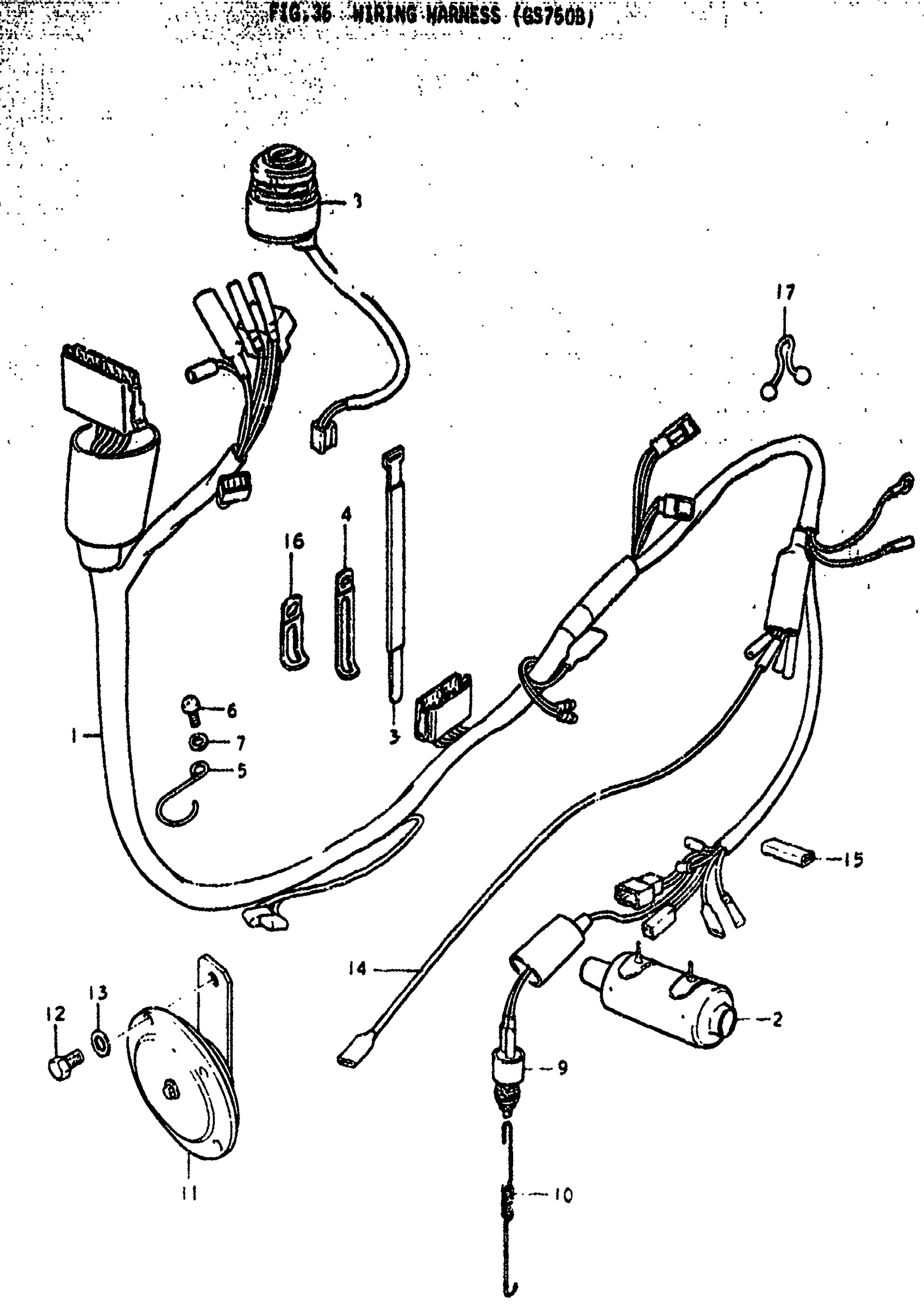

Suzuki GS750B (1979) WIRING HARNESS (GS750B) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 36610-45001.

36610-45002

Unavailable

2

BOOT This part replaces 36618-30600.

36618-30610

$8.83

3

CLAMP | L:180 This part replaces 09407-18301.

09407-18302

$2.28

4

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74

5

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

Unavailable

6

SCREW This part replaces 02112-06128.

02112-06127

$1.84

7

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

8

SWITCH ASSY IGN This part replaces 37110-31016.

37110-31017

Unavailable

9

SWITCH, BRAKE LAMP

37610-53011

$30.75

10

SPRING This part replaces 09443-06018.

09443-06018-XC0

Unavailable

11

HORN ASSY This part replaces 38500-64130.

38502-49001

Unavailable

12

BOLT This part replaces 01107-08128.

01500-08127

$2.62

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

LEAD WIRE, PRESSURE SWITCH | Includes Item(s) 15 This part replaces 36853-45000.

36853-45001

Unavailable

15

PROTECTOR, WIRING HARNESS

36611-38000

Unavailable

16

CLAMP(L:62) This part replaces 09404-10401.

09404-10206

$2.35

17

CLIP This part replaces 09408-00011.

09408-00020

Unavailable
