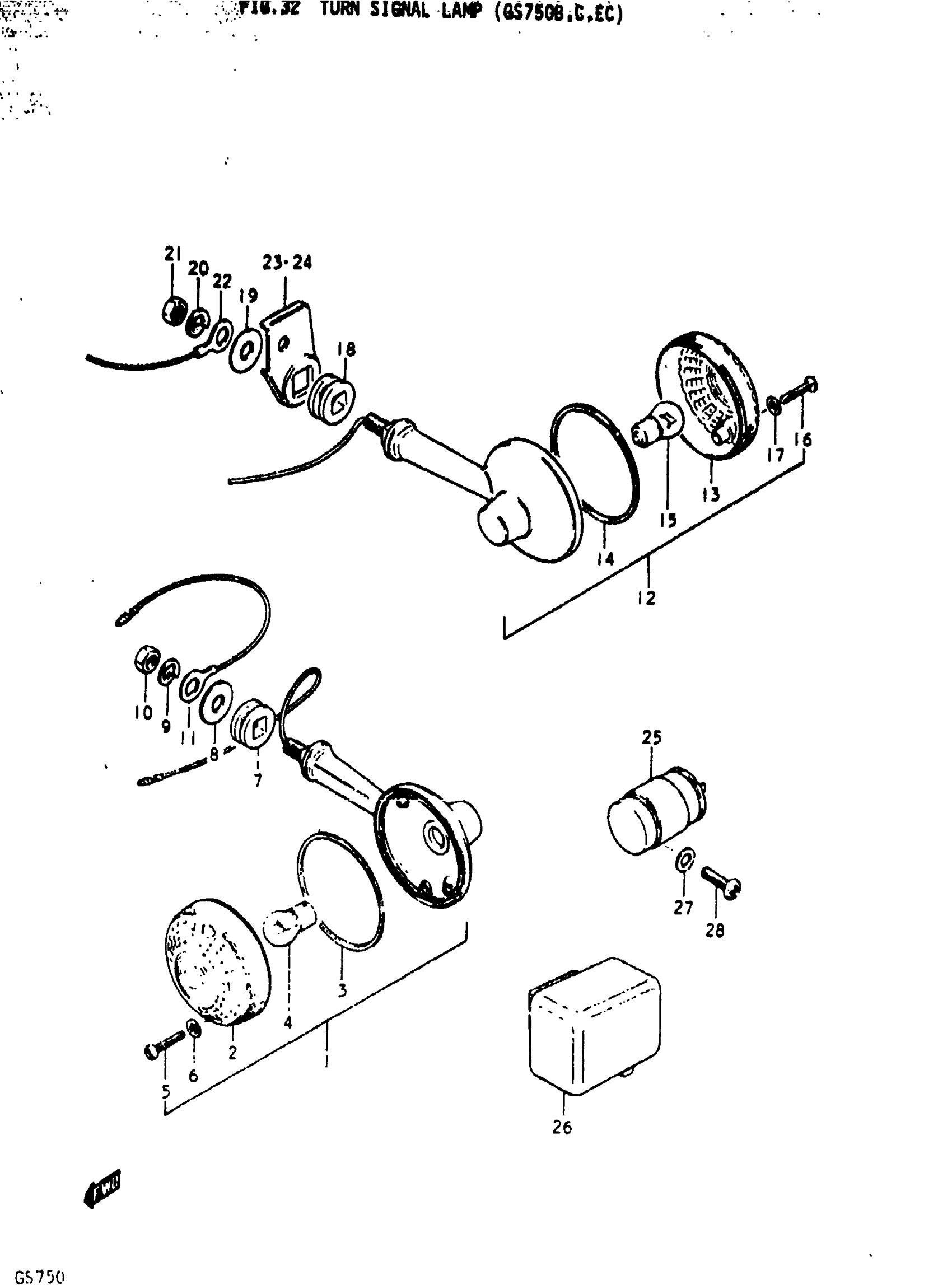

Suzuki GS750B (1979) TURN SIGNAL LAMP (GS750B Diagram

#

Description
Price

1

FR TURN SIGNAL | B,C&EC; Includes Item(s) 2 - 6 This part replaces 35601-45010.

35601-45X00-999

Unavailable

2

LENS | B,C&EC

35612-45010

Unavailable

3

GASKET | B,C&EC

35613-45010

Unavailable

4

BULB | B,C&EC; 12V, 23W

09471-12006

$3.98

5

SCREW (4X30) | B,C&EC This part replaces 02111-04308.

09125-04023

$2.30

6

GASKET | B,C&EC

35627-43010

$2.28

7

RR TURN SIG CUS | B,C&EC This part replaces 35690-32200.

35690-32201

$6.37

8

WASHER, UPPER, OUTER | B,C&EC; 10.5x30x2.3 This part replaces 09160-10006.

09160-10501

$2.33

9

LOCK WASHER | B,C&EC This part replaces 08321-21108.

08321-01107

$1.84

10

NUT | B,C&EC This part replaces 08310-12108.

08310-00107

$2.19

11

LEAD WIRE, FRONT GROUND | B,C&EC This part replaces 36862-45000.

36660-33000

$4.52

12

FR TURN SIGNAL | B,C&EC; Includes Item(s) 13 - 17 This part replaces 35601-45010.

35601-45X00-999

Unavailable

13

LENS | B,C&EC

35612-45010

Unavailable

14

GASKET | B,C&EC

35613-45010

Unavailable

15

BULB | B,C&EC; 12V, 23W

09471-12006

$3.98

16

SCREW (4X30) | B,C&EC This part replaces 02111-04308.

09125-04023

$2.30

17

GASKET | B,C&EC

35627-43010

$2.28

18

RR TURN SIG CUS | B,C&EC This part replaces 35690-32200.

35690-32201

$6.37

19

WASHER, UPPER, OUTER | B,C&EC; 10.5x30x2.3 This part replaces 09160-10006.

09160-10501

$2.33

20

LOCK WASHER | B,C&EC This part replaces 08321-21108.

08321-01107

$1.84

21

NUT | B,C&EC This part replaces 08310-12108.

08310-00107

$2.19

22

LEAD WIRE, FRONT GROUND | B,C&EC This part replaces 36862-45000.

36660-33000

$4.52

23

BRACKET, RH | B,C&EC

41580-45000-019

Unavailable

24

BRACKET, LH | B,C&EC

41590-45000-019

Unavailable

25

RELAY ASSY, TURNSIGNAL | B This part replaces 38610-36610.

38610-31X50

$80.15

26

RELAY ASSY, TURNSIGNAL | C&EC This part replaces 38610-45030.

38610-31X50

$80.15

27

WASHER | B This part replaces 08322-21068.

08322-01067

$2.13

28

SCREW | B This part replaces 02112-06168.

02112-06167

$1.49
