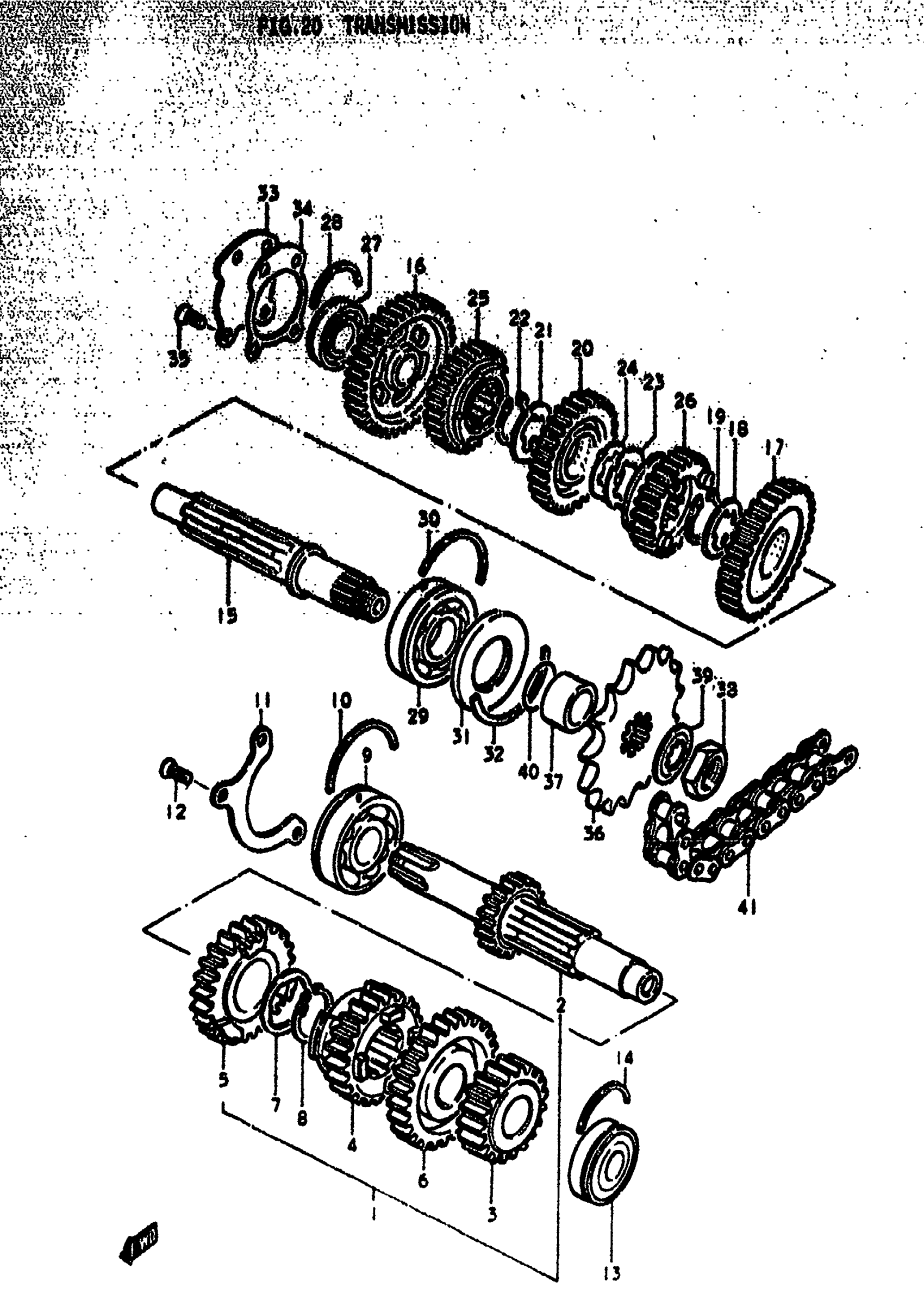

Suzuki GS750B (1979) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | B,C&EC,N&EN; Includes Item(s) 2 - 8

24120-45001

Unavailable

2

COUNTERSHAFT | B,C&EC,N&EN; NT:14

24121-45001

Unavailable

3

GEAR, 2ND DRIVE (NT:18) | B,C&EC,N&EN; NT:18 This part replaces 24221-37000.

24221-49001

Unavailable

4

GEAR, 3RD DRIVE | B,C&EC,N&EN; NT:21 This part replaces 24231-37000.

24231-49000

Unavailable

5

GEAR, 4TH DRIVE | B,C&EC,N&EN; NT:24 This part replaces 24240-31001.

24240-49000

Unavailable

6

GEAR, 5TH DRIVE | B,C&EC,N&EN; NT:26 This part replaces 24250-45000.

24250-49000

Unavailable

7

WASHER | B,C&EC,N&EN

09167-28001

$4.60

8

CIRCLIP | B,C&EC,N&EN This part replaces 08331-11289.

08331-31289

$2.19

9

BEARING, LH | B,C&EC,N&EN This part replaces 09262-25051.

09262-25105

$68.10

10

C RING | B,C&EC,N&EN This part replaces 09390-62006.

09390-62012

$7.31

11

HOLDER, BEARING | B,C&EC,N&EN

24741-45000

Unavailable

12

SCREW | B,C&EC,N&EN This part replaces 02122-06168.

02122-06167

$1.49

13

BEARING, LH | B,C&EC,N&EN

09262-20044

$36.33

14

C RING | B,C&EC,N&EN

09390-47003

Unavailable

15

DRIVESHAFT | B,C&EC,N&EN

24131-45001

Unavailable

16

GEAR, 1ST DRIVEN | B,C&EC,N&EN; NT:36

24310-45000

Unavailable

17

GEAR, 2ND DRIVEN | B,C&EC,N&EN; NT:32 This part replaces 24320-45000.

24320-49000

Unavailable

18

WASHER | B,C&EC,N&EN

09167-28001

$4.60

19

CIRCLIP | B,C&EC,N&EN This part replaces 08331-11289.

08331-31289

$2.19

20

GEAR, 3RD DRIVEN | B,C&EC,N&EN; NT:29

24330-37000

Unavailable

21

WASHER, RH | B,C&EC,N&EN

09167-28001

$4.60

22

CIRCLIP | B,C&EC,N&EN This part replaces 08331-11289.

08331-31289

$2.19

23

LOCK WASHER, LH NO.1 | B,C&EC,N&EN; T:1.5

09167-28002

$4.77

24

LOCK WASHER, LH NO.2 | B,C&EC,N&EN; T:1.0

09169-28001

$3.85

25

GEAR, 4TH DRIVEN | B,C&EC,N&EN; NT:27

24341-45000

Unavailable

26

GEAR, 5TH DRIVEN | B,C&EC,N&EN; NT:25 This part replaces 24351-45000.

24351-49000

Unavailable

27

BEARING, LH | B,C&EC,N&EN This part replaces 09262-20041.

09262-20044

$36.33

28

C RING | B,C&EC,N&EN

09390-47003

Unavailable

29

BEARING, LH | B,C&EC,N&EN This part replaces 09262-25051.

09262-25105

$68.10

30

C RING | B,C&EC,N&EN This part replaces 09390-62006.

09390-62012

$7.31

31

OIL SEAL | B,C&EC,N&EN

09283-32012

$16.79

32

C RING | B,C&EC,N&EN

09390-62008

Unavailable

33

PLATE | B,C&EC,N&EN

24761-45000

Unavailable

34

GASKET,DR SHFT | B,C&EC,N&EN This part replaces 24762-45000.

24762-45000-H17

$2.77

35

SCREW | B,C&EC,N&EN This part replaces 02122-06168.

02122-06167

$1.49

36

SPROCKET, ENGINE | B,C&EC,N&EN; NT:15

27511-45000

Unavailable

37

SPACER | B,C&EC,N&EN; 25x32x18.6

09180-25052

Unavailable

38

NUT | B,C&EC,N&EN

09180-25052

Unavailable

39

WASHER (25.3X41.6X1) | B,C&EC,N&EN This part replaces 09167-25011.

09167-25019

$2.19

40

O RING | B,C&EC,N&EN

09280-25001

$1.56

41

CHAIN, DRIVE | B; #630x96l This part replaces 27600-37021.

27600-49210

Unavailable

41

CHAIN, DRIVE | C&EC,N&EN; #630x96l This part replaces 27600-45010.

27600-49210

Unavailable
