1979 Suzuki GS750B Steering Sten (GS750C Diagram

← All diagrams

Find the part on the Steering Sten (GS750C diagram for your 1979 Suzuki GS750B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

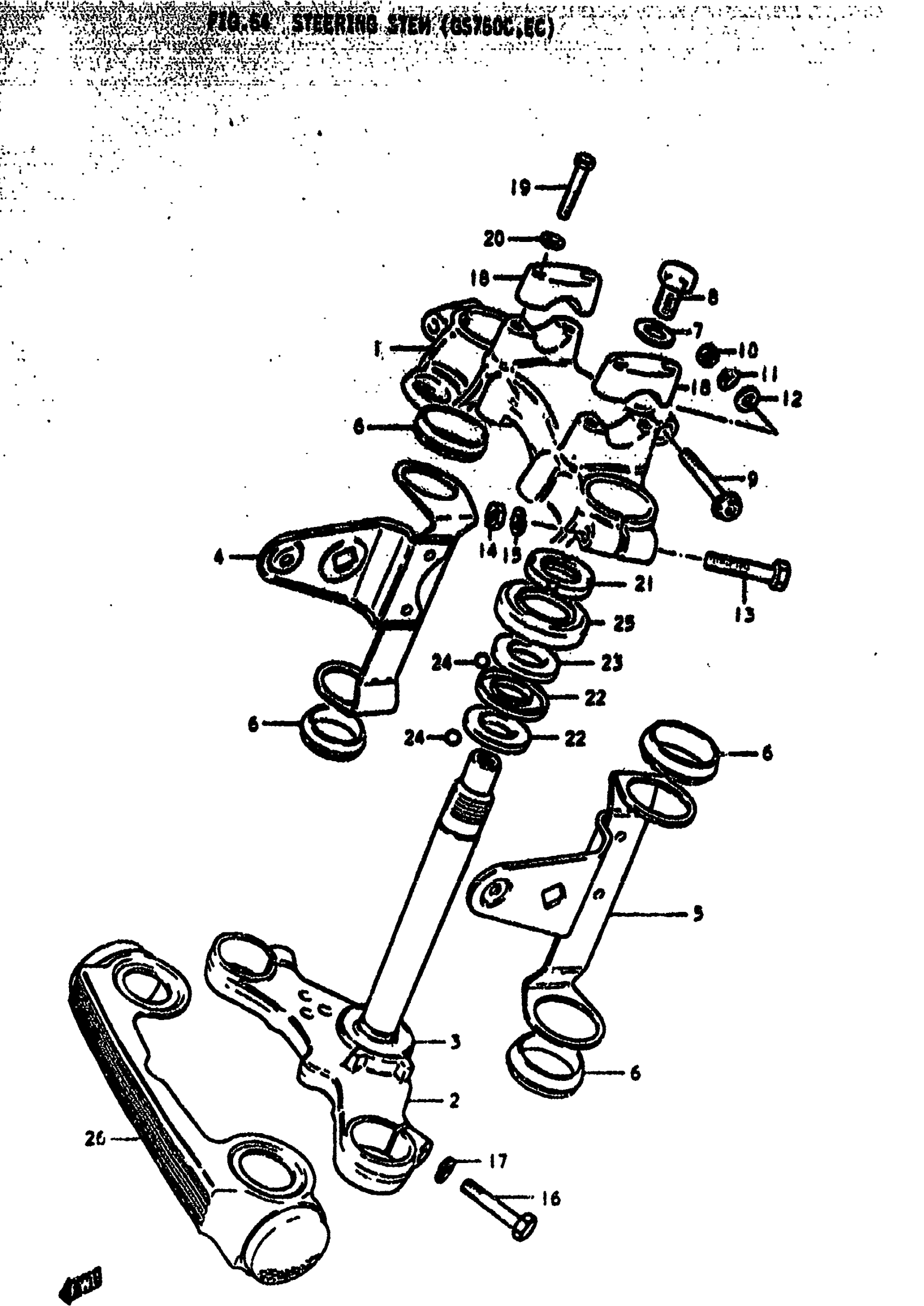

1979 Suzuki GS750B Steering Sten (GS750C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING STEM HEAD

51311-47000-291

1
Out of stock

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 This part replaces 51410-45001.

51410-45X01

1
Out of stock

3

OUTER RACE

51621-33001

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 51530-45000-291.

51500-45820-291

1
Out of stock

5

BRACKET, HEADLAMP LH This part replaces 51540-45000-291.

51540-45001-291

1
Out of stock

6

CUSHION This part replaces 51553-47000.

51553-34280

4
Out of stock

7

WASHER (12.5X26X1.6) | 12.5x26x1.6 This part replaces 09160-12006.

09160-12089

1
Out of stock

8

BOLT

09104-12013

1
Out of stock

9

BOLT This part replaces 01517-08308.

01550-08307

1
Out of stock

10

NUT This part replaces 08310-12088.

08310-00087

1
Out of stock

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

1
Out of stock

12

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

13

BOLT This part replaces 01107-10558.

01500-1055A

2
Out of stock

14

NUT This part replaces 08310-12108.

08310-00107

2
Out of stock

15

LOCK WASHER This part replaces 08321-31108.

08321-01107

2
Out of stock

16

BOLT This part replaces 01107-10408.

01500-10407

2
Out of stock

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

18

CLAMP, HANDLEBER UPPER

56211-27200-291

2
Out of stock

19

BOLT

01204-08357

4
Out of stock

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

4
Out of stock

21

NUT, STEERING STEM

51631-28000

1
Out of stock

22

INNER RACE

51611-33002

2
Out of stock

23

OUTER RACE, UPPER

51621-30001

1
Out of stock

24

STEEL BALL

06111-08003

36
Out of stock

25

DUST SEAL, UPPER

51643-30000

1
Out of stock

26

COVER, FRONT FORK

51870-47000

1
Out of stock
