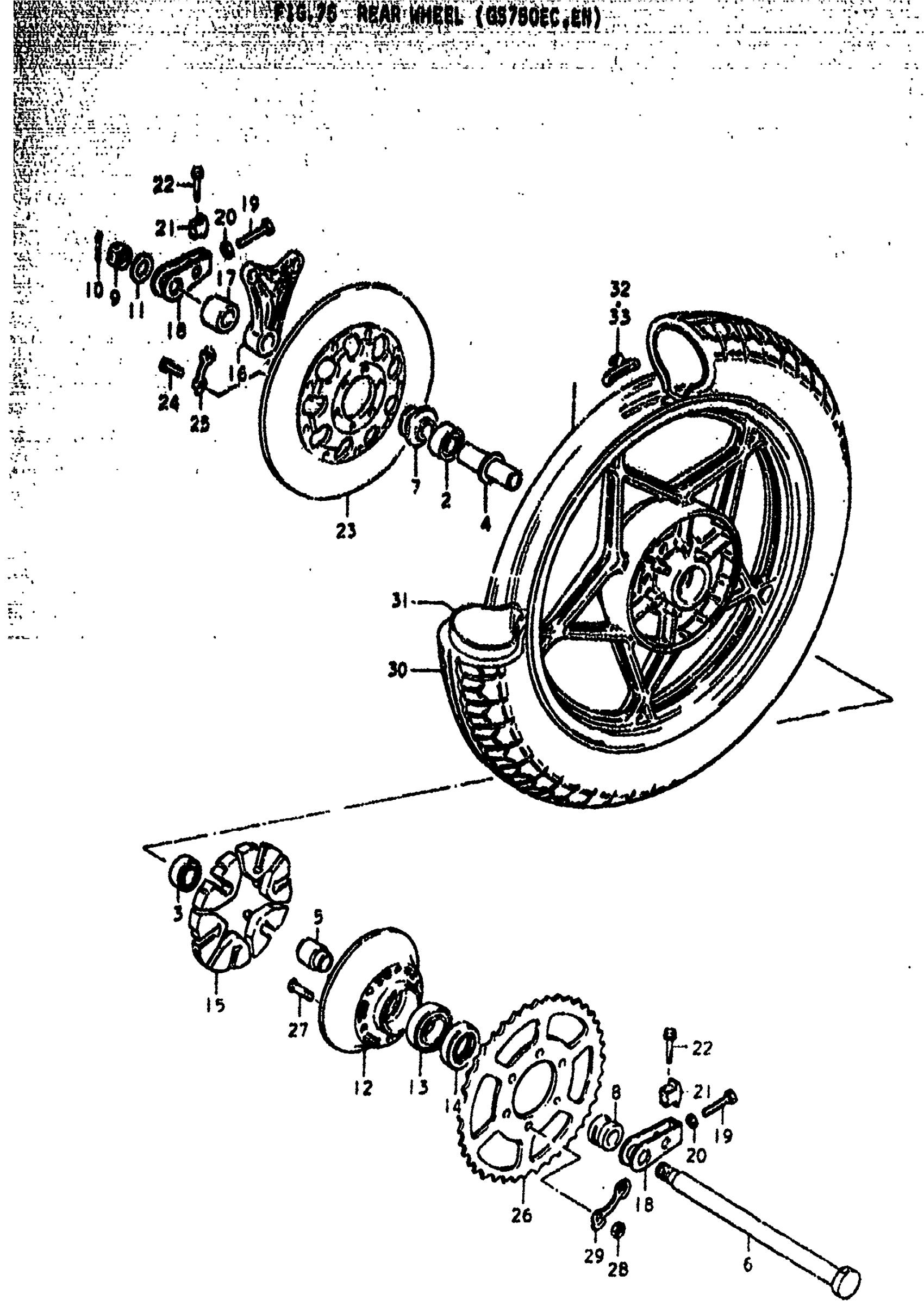

Suzuki GS750B (1979) REAR WHEEL (GS750EC Diagram

#

Description
Price

1

WHEEL, REAR | EC; 2.15x18 This part replaces 64111-47601.

64111-49300-12U

Unavailable

1

WHEEL, REAR | EN; 2.15x18 This part replaces 64111-47602.

64111-49300-12U

Unavailable

2

BEARING, RH | EC This part replaces 08133-62040.

08133-62047

$26.19

2

BEARING, RH | EN

08133-62047

$26.19

3

BEARING, LH | EC This part replaces 08153-62040.

09262-20042

$21.31

3

BEARING, LH | EN This part replaces 08153-62047.

09262-20042

$21.31

4

SPACER, BEARING | EC,EN

64731-45000

Unavailable

5

SPACER,RR HUB B | EC,EN This part replaces 64733-31000.

64733-3100V

Unavailable

6

AXLE, REAR | EC,EN

64711-37000

Unavailable

7

SPACER, AXLE, RH | EC,EN This part replaces 64740-45001.

64740-45002

Unavailable

8

SPACER, LH | EC,EN; 20x33x28.3

09180-20054

Unavailable

9

NUT | EC,EN This part replaces 08314-31188.

08314-3118A

$6.58

10

PIN, REAR AXLE | EC,EN This part replaces 04111-40308.

04111-4030A

$1.37

11

WASHER | EC,EN; 19x34x4

09160-19008

Unavailable

12

DRUM, SPROCKET | EC,EN This part replaces 64611-31000.

64611-31003

Unavailable

13

BEARING, DRUM | EC This part replaces 08113-63054.

09262-25073

$23.39

13

BEARING, DRUM | EN This part replaces 08113-63057.

09262-25073

$23.39

14

OIL SEAL | EC,EN

09285-33001

$12.15

15

SHOCK ABSORBER, HUB | EC,EN This part replaces 64651-31000.

64651-31001

$10.24

16

BRACKET, REAR CALIPERS | EC This part replaces 69721-47010.

69721-47011

Unavailable

16

BRACKET, REAR CARIPERS | EN

69721-47011

Unavailable

17

SPACER, RH | EC,EN; 20x38x12

09180-20060

Unavailable

18

ADJUSTER, CHAIN | EC,EN This part replaces 61410-31000.

61410-31001

$55.32

19

BOLT (8X50) | EC,EN This part replaces 09104-08006.

09104-08034

$2.80

20

NUT | EC,EN This part replaces 08310-12088.

08310-00087

$1.83

21

SUPPORTER,CHAIN | EC,EN This part replaces 61433-31000.

61433-3100V

Unavailable

22

BOLT | EC,EN This part replaces 01517-08408.

01550-08407

$2.63

23

NO DESCRIPTION AVAILABLE | EC,EN This part replaces 59210-18401.

59210-18402

Unavailable

24

BOLT | EC,EN; 8.34

09100-08094

$2.80

25

WASHER | EC,EN

09169-08016

$2.38

26

SPROCKET, REAR (NT:41) | EC,EN; NT:41 This part replaces 64511-45000.

64511-45001

Unavailable

27

BOLT | EC,EN This part replaces 09119-10002.

09105-10001

$3.12

28

NUT | EC,EN This part replaces 08310-12108.

08310-00107

$2.19

29

WASHER | EC,EN

09169-10007

Unavailable

30

TIRE | EC; 4.00-18 This part replaces 65100-45610.

65100-45035

Unavailable

30

TIRE | EN; 4.00-18

65100-45035

Unavailable

31

TUBE, INNER | EC,EN; 4.00-18 This part replaces 65200-15011.

65200-49015

Unavailable

32

BALANCER | EC; (0~3) 20G This part replaces 55411-47000.

55411-47001

Unavailable

32

BALANCER, S | EN; (0~3) 20G

55411-47001

Unavailable

33

BALANCER | EC; (0~3) 30G This part replaces 55412-47000.

55412-47001

Unavailable

33

BALANCER, L | EN; (0~3) 30G

55412-47001

Unavailable
