1979 Suzuki GS750B Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1979 Suzuki GS750B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

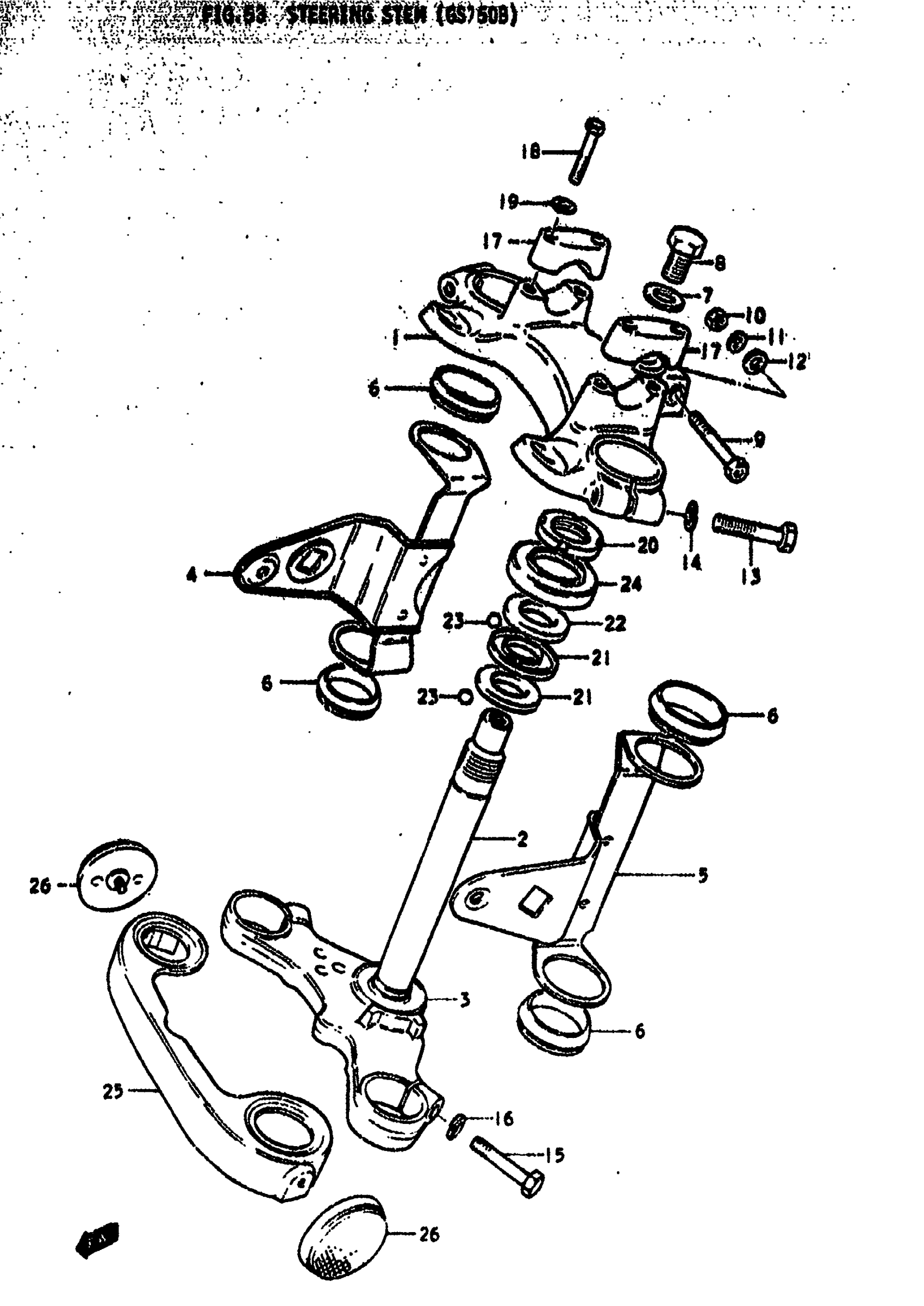

1979 Suzuki GS750B Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 51311-31701-019.

51311-31701-291

1
Out of stock

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 This part replaces 51410-45000.

51410-45X01

1
Out of stock

3

OUTER RACE

51621-33001

1

$18.33

In stock

4

NO DESCRIPTION AVAILABLE This part replaces 51530-45000-291.

51500-45820-291

1
Out of stock

5

BRACKET, HEADLAMP LH This part replaces 51540-45000-291.

51540-45001-291

1
Out of stock

6

4

$6.22

In stock

8

BOLT

09104-12013

1

$4.06

In stock

9

BOLT This part replaces 01107-08508.

01500-08507

1
Out of stock

10

1

$1.93

In stock

11

1

$2.28

In stock

12

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

13

2

$3.51

In stock

14

2

$1.93

In stock

15

2

$3.51

In stock

16

2

$1.93

In stock

17

2

$20.22

In stock

18

BOLT

01204-08357

4

$2.26

In stock

19

4

$2.28

In stock

20

NUT, STEERING STEM

51631-28000

1

$19.60

In stock

21

INNER RACE

51611-33002

2

$14.17

In stock

22

OUTER RACE, UPPER

51621-30001

1
Out of stock

23

STEEL BALL

06111-08003

36

$1.41

In stock

24

DUST SEAL, UPPER

51643-30000

1
Out of stock

25

NO DESCRIPTION AVAILABLE This part replaces 51870-45000.

51870-45002

1
Out of stock

26

2

$22.68

In stock
