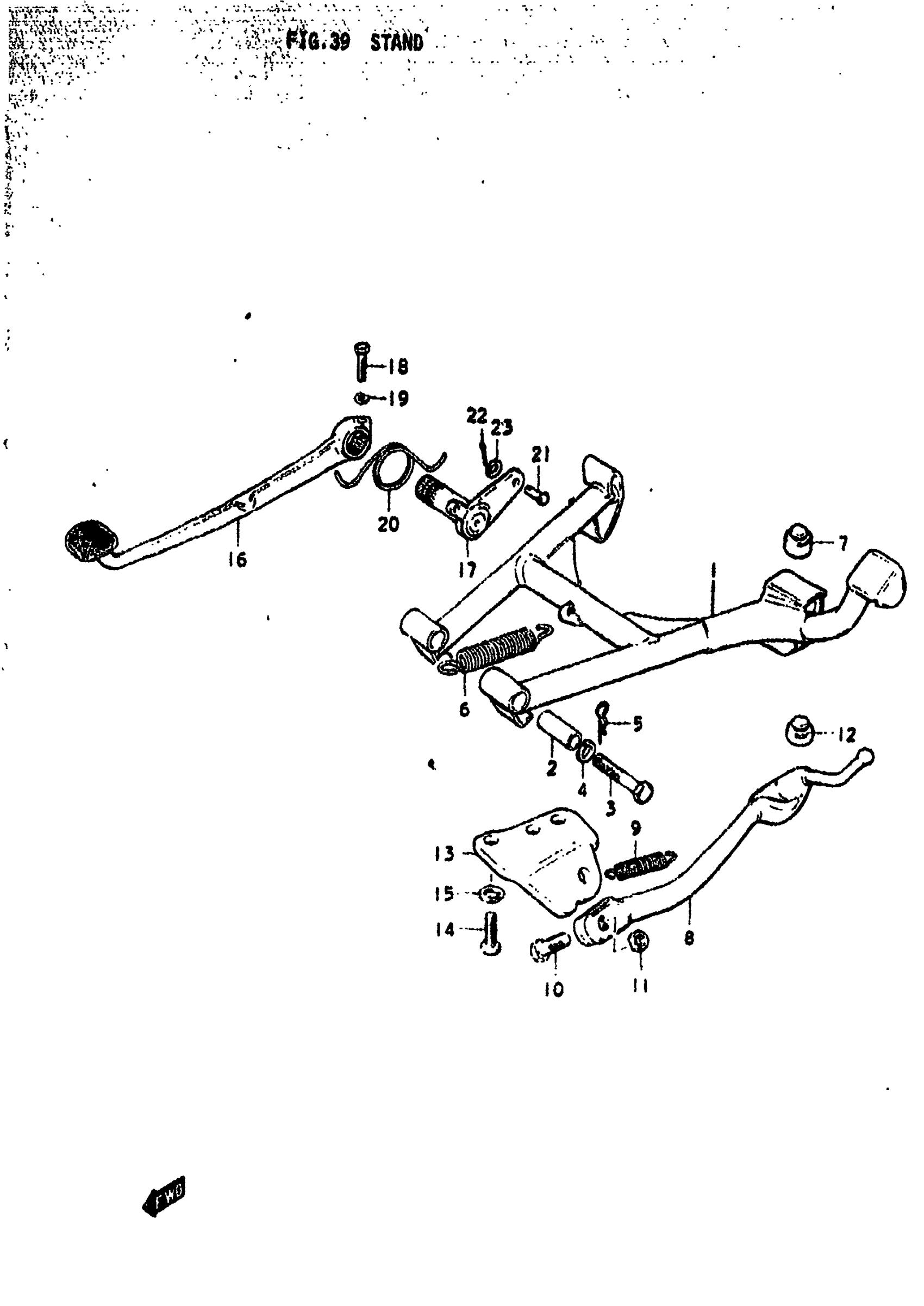

Suzuki GS750B (1979) STAND Diagram

#

Description
Price

1

STAND, CENTER | B,C&EC

42100-45000

Unavailable

1

STAND, CENTER | N&EN This part replaces 42100-45100.

42100-45121

Unavailable

2

SPACER | B,C&EC,N&EN; 10.7x15.9x38

09180-10040

$2.56

3

BOLT, 10 X 65 | B,C&EC,N&EN This part replaces 09101-10018.

09101-10030

Unavailable

4

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21108.

08321-01107

$1.84

5

CLIP | B,C&EC,N&EN This part replaces 09385-10001.

09385-10005

$1.56

6

SPRING | B,C&EC,N&EN This part replaces 09443-20001.

09443-20001-XC0

$7.53

7

CUSHION | B,C&EC,N&EN

09321-10001

$2.61

8

STAND, PROP | B,C&EC,N&EN

42310-45000

Unavailable

9

SPRING | B,C&EC,N&EN This part replaces 09443-17005.

09443-17008-XC0

$6.98

10

BOLT | B,C&EC,N&EN

09100-10067

$2.61

11

NUT | B,C&EC,N&EN This part replaces 08310-22108.

08310-00107

$2.19

12

CUSHION | B,C&EC,N&EN

09321-10002

$2.22

13

BRACKET | B,C&EC,N&EN

42330-45000

Unavailable

14

BOLT | B,C&EC,N&EN This part replaces 09100-10007.

09100-10287

$3.48

15

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21108.

08321-01107

$1.84

16

PEDAL, BRAKE | B,C&EC,N&EN

43110-45000

Unavailable

17

ARM, BRAKE PEDAL ROD | B,C&EC,N&EN

43120-45000

Unavailable

18

BOLT | B,C&EC,N&EN This part replaces 01107-08258.

01500-08257

$2.50

19

.LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21088.

08321-01087

$2.13

20

SPRING | B,C&EC,N&EN This part replaces 09448-37002.

09448-37002-XC0

Unavailable

21

PIN | B,C&EC,N&EN

09200-06029

Unavailable

22

.COTTER PIN | B,C&EC,N&EN This part replaces 04111-20156.

04111-2015A

$1.49

23

WASHER | B,C&EC,N&EN This part replaces 08322-21068.

08322-01067

$2.13
