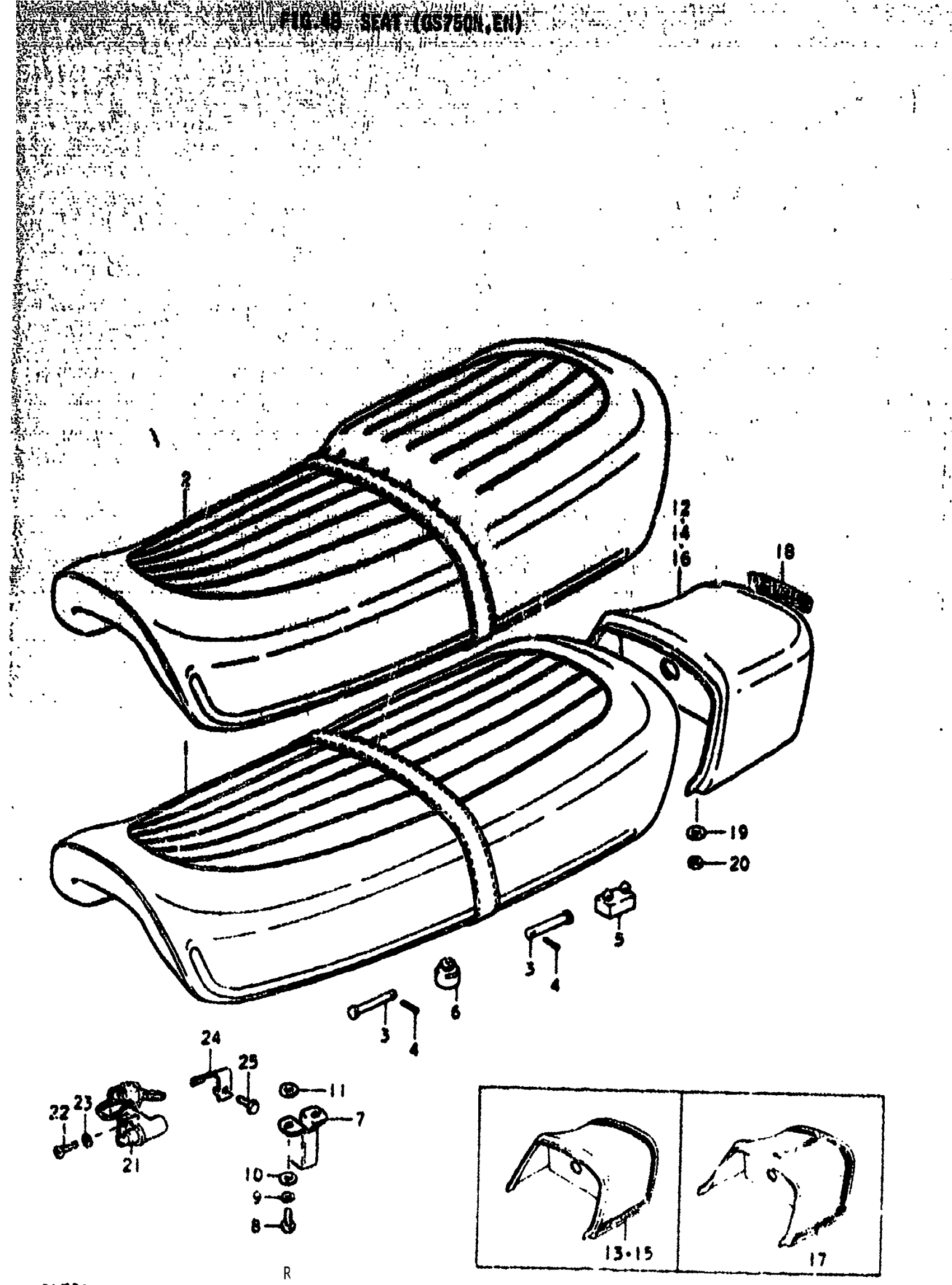

Suzuki GS750B (1979) SEAT (GS750N Diagram

#

Description
Price

1

SEAT ASSY | N This part replaces 45100-45004-40P.

45100-45005-48H

$771.75

2

SEAT ASSY | EN This part replaces 45100-45011-40P.

45100-45005-48H

$771.75

3

PIN | N,EN

09200-06018

$2.06

4

.COTTER PIN | N,EN This part replaces 04111-20158.

04111-2015A

$1.49

5

CUSHION | N,EN

09321-08006

$2.90

6

CUSHION | N,EN

09321-10001

$2.61

7

STRIKER, SEAT LOCK | N,EN

45213-45000

Unavailable

8

BOLT | N,EN This part replaces 01107-06128.

01500-06127

$1.97

9

LOCK WASHER | N,EN This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER | N,EN This part replaces 08322-21068.

08322-01067

$2.13

11

PLATE | N,EN

09160-08043

$1.83

12

COVER, SEAT TALL | N

45510-45001-08J

Unavailable

13

TAPE SET | N

68100-45890-67B

Unavailable

14

NO DESCRIPTION AVAILABLE | N This part replaces 45510-45001-07P.

45510-45001

Unavailable

15

TAPE SET | N

68100-45890-67C

Unavailable

16

NO DESCRIPTION AVAILABLE | EN This part replaces 45510-45001-08E.

45510-45001

Unavailable

17

TAPE SET | EN

68101-45821-67A

Unavailable

18

EMBLEM | N,EN

68166-45010-764

Unavailable

19

WASHER | N,EN

09169-06016

$1.65

20

NUT | N,EN This part replaces 08319-21168.

08319-2116A

$9.00

21

SEAT LOCK SET | N,EN

95700-45813

Unavailable

22

SCREW | N,EN This part replaces 02112-05128.

02112-05127

$1.97

23

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.84

24

SPRING, HEIMET HOLDER | N,EN

95722-45000

Unavailable

25

BOLT | N,EN This part replaces 01104-05088.

01500-05087

$2.13
