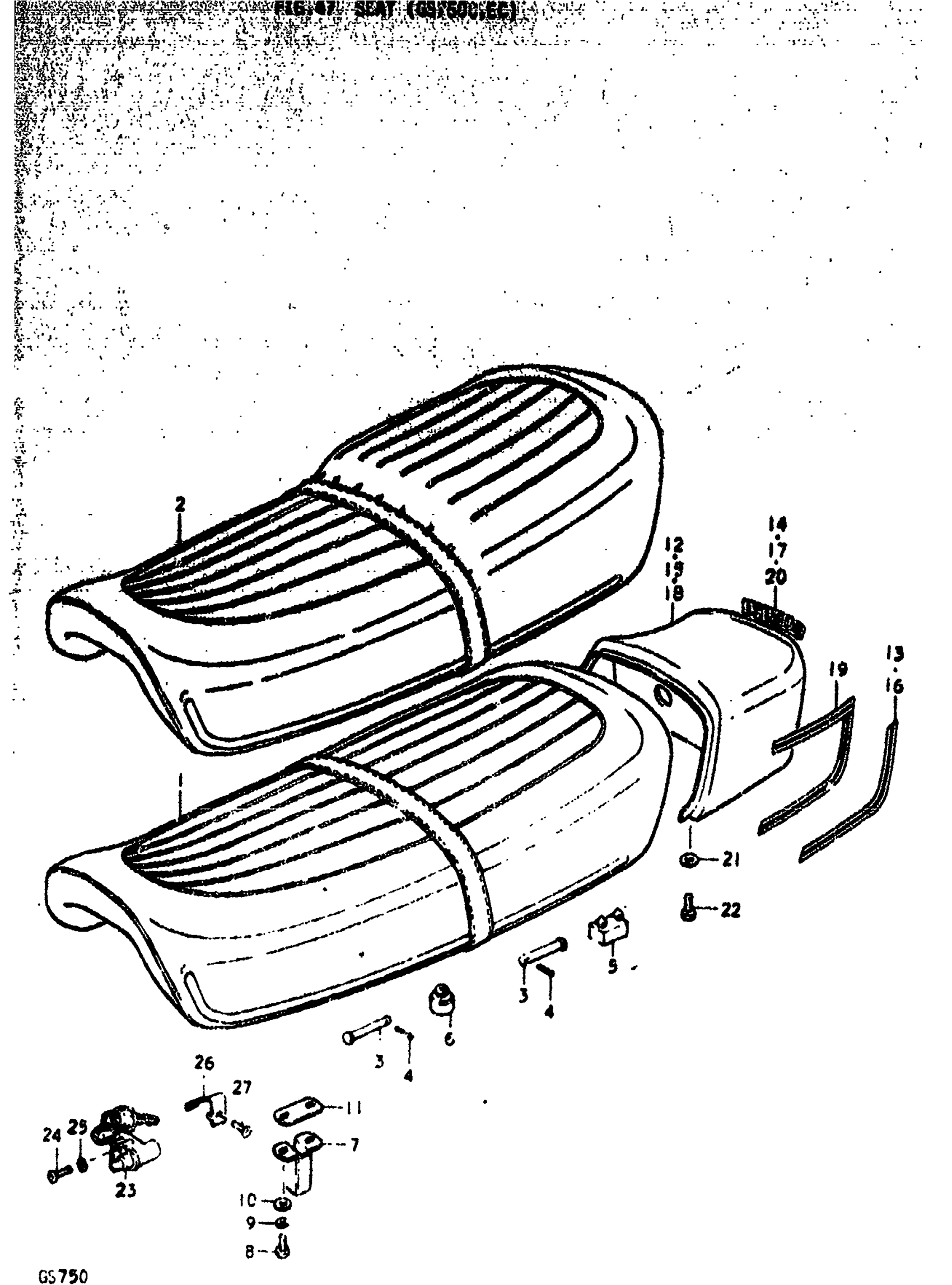

Suzuki GS750B (1979) SEAT (GS750C Diagram

#

Description
Price

1

SEAT ASSY | C This part replaces 45100-45003-865.

45100-45005-48H

$771.75

2

SEAT ASSY | EC This part replaces 45100-45010-865.

45100-45005-48H

$771.75

3

PIN | C,EC

09200-06018

$2.06

4

.COTTER PIN | C,EC This part replaces 04111-20158.

04111-2015A

$1.49

5

CUSHION | C,EC

09321-08006

$2.90

6

CUSHION | C,EC

09321-10001

$2.61

7

STRIKER, SEAT LOCK | C,EC

45213-45000

Unavailable

8

BOLT | C,EC This part replaces 01107-06128.

01500-06127

$1.97

9

LOCK WASHER | C,EC This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER | C,EC This part replaces 08322-21068.

08322-01067

$2.13

11

PLATE | C,EC

45217-45001

Unavailable

12

NO DESCRIPTION AVAILABLE | C; TO 45510-45001-05T USED WITH 08319-21068 This part replaces 45510-45000-05T.

45510-45001

Unavailable

13

TAPE SET | C

68100-45850-62W

Unavailable

14

EMBLEM | C; TO 68166-45010-998 This part replaces 68166-45010-63Z.

68166-45010-998

Unavailable

15

NO DESCRIPTION AVAILABLE | C; TO 45510-45001-05N USED WITH 08319-21068 This part replaces 45510-45000-05N.

45510-45001

Unavailable

16

TAPE SET | C

68100-45850-62Y

Unavailable

17

EMBLEM | C

68166-45010-64B

Unavailable

18

NO DESCRIPTION AVAILABLE | EC; TO 45510-45001-01@ USED WITH 08319-21068 This part replaces 45510-45000-019.

45510-45001

Unavailable

19

TAPE SET | EC

68100-45870-62Z

Unavailable

20

EMBLEM | EC

68166-45010-998

Unavailable

21

WASHER | C,EC

09169-06016

$1.65

22

BOLT, CANISTER | C,EC This part replaces 01107-06168.

01500-06167

$1.97

23

LOCK SET, SEAT | C,EC This part replaces 95700-45812.

95700-45813

Unavailable

24

SCREW | C,EC This part replaces 02112-05128.

02112-05127

$1.97

25

LOCK WASHER | C,EC This part replaces 08321-21058.

08321-0105A

$1.84

26

SPRING, HELMET HOLDER | C,EC

95722-45000

Unavailable

27

SCREW | C,EC This part replaces 02112-05088.

02112-05087

$1.49
