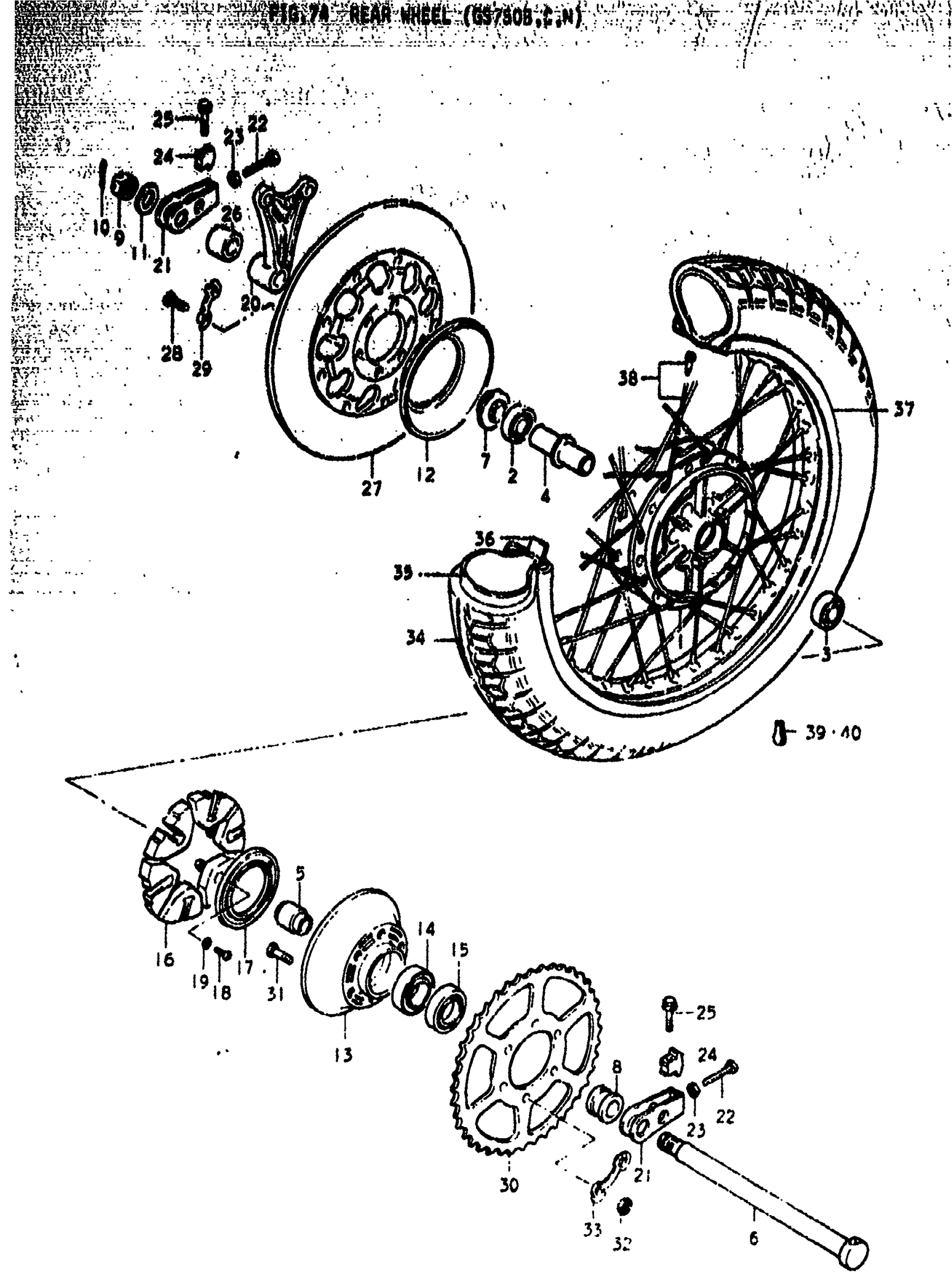

Suzuki GS750B (1979) REAR WHEEL (GS750B Diagram

#

Description
Price

1

HUB | B This part replaces 64110-45000.

64110-45001

Unavailable

1

HUB | C,N

64110-45001

Unavailable

2

BEARING | B,C This part replaces 08123-62040.

08123-6204B

$17.41

2

BEARING | N This part replaces 08123-62047.

08123-6204B

$17.41

3

BEARING, LH | B,C This part replaces 08143-62040.

09262-20042

$23.28

3

BEARING, LH | N This part replaces 08143-62047.

09262-20042

$23.28

4

SPACER, BEARING | B,C,N

64730-45000

Unavailable

5

SPACER,RR HUB B | B,C,N This part replaces 64733-31000.

64733-3100V

Unavailable

6

AXLE, REAR | B,C,N

64711-37000

Unavailable

7

SPACER, AXLE, RH | B This part replaces 64740-45000.

64740-45002

Unavailable

7

SPACER, AXLE, RH | C,N This part replaces 64740-45001.

64740-45002

Unavailable

8

SPACER, LH | B,C,N; 20x33x28.3

09180-20054

Unavailable

9

NUT | B,C,N This part replaces 08314-31188.

08314-3118A

$5.16

10

PIN, REAR AXLE | B,C,N This part replaces 04111-40308.

04111-4030A

$1.49

11

WASHER | B,C,N; 19x34x4

09160-19008

Unavailable

12

COVER, HUB | B,C,N

64171-45000

Unavailable

13

DRUM, SPROCKET | B,C,N This part replaces 64611-31000.

64611-31003

Unavailable

14

BEARING, DRUM | B,C This part replaces 08113-63054.

09262-25073

$25.92

14

BEARING, DRUM | N This part replaces 08113-63057.

09262-25073

$25.92

15

OIL SEAL | B,C,N

09285-33001

$13.27

16

SHOCK ABSORBER, HUB | B,C,N This part replaces 64651-31000.

64651-31001

$11.19

17

PLATE, CUSHION | B,C,N

64671-45000

Unavailable

18

SCREW | B,C,N This part replaces 02112-05108.

02112-05107

$1.49

19

LOCK WASHER | B,C,N This part replaces 08321-21058.

08321-0105A

$1.84

20

BRACKET, REAR CARIPERS | B

69721-45000

Unavailable

20

BRACKET, REAR CALIPERS | C This part replaces 69721-47010.

69721-47011

Unavailable

20

BRACKET, REAR CARIPERS | N

69721-47011

Unavailable

21

ADJUSTER, CHAIN | B,C,N This part replaces 61410-31000.

61410-31001

$49.02

22

BOLT (8X50) | B,C,N This part replaces 09104-08006.

09104-08034

$3.04

23

NUT | B,C,N This part replaces 08310-12088.

08310-00087

$2.13

24

SUPPORTER,CHAIN | B,C,N This part replaces 61433-31000.

61433-3100V

Unavailable

25

BOLT | B,C,N This part replaces 01517-08406.

01550-0840A

$3.05

26

SPACER, REAR AXLE | C,N; 20x38x12

09180-20060

Unavailable

27

DISK, REAR BRAKE | B

59210-37001

Unavailable

27

NO DESCRIPTION AVAILABLE | C,N This part replaces 59210-18401.

59210-18402

Unavailable

28

BOLT | B,C,N; 8x34

09100-08094

$2.71

29

WASHER | B,C,N

09169-08016

$2.41

30

SPROCKET, REAR (NT:41) | B,C,N; NT:41 This part replaces 64511-45000.

64511-45001

Unavailable

31

BOLT | B,C,N This part replaces 09119-10002.

09105-10001

$2.87

32

NUT | B,C,N This part replaces 08310-12108.

08310-00107

$2.19

33

WASHER | B,C,N

09169-10007

Unavailable

34

TIRE | B,C; 4.00-18 This part replaces 65100-45610.

65100-45035

Unavailable

34

TIRE | N; 4.00-18

65100-45035

Unavailable

35

TUBE, INNER | B,C,N; 4.00-18 This part replaces 65200-15011.

65200-49015

Unavailable

36

IN TUBE PROTECT | B,C,N; 25x18 This part replaces 65261-15010.

55261-26F10

$4.39

37

RIM | B,C,N; 2.15x18

65311-15021

Unavailable

38

SPOKE SET, RR W | B,C This part replaces 65300-37811.

65300-45811

Unavailable

38

SPOKE SET, RR W | N This part replaces 65300-45810.

65300-45811

Unavailable

39

BALANCER WHEEL (15G) | C,N; (0~3) 20G This part replaces 55411-11000.

55411-26G00

$7.73

40

BALANCER WHEEL (30G) | C,N; (0~3) 30G This part replaces 55412-11000.

55413-41F00

$7.50
