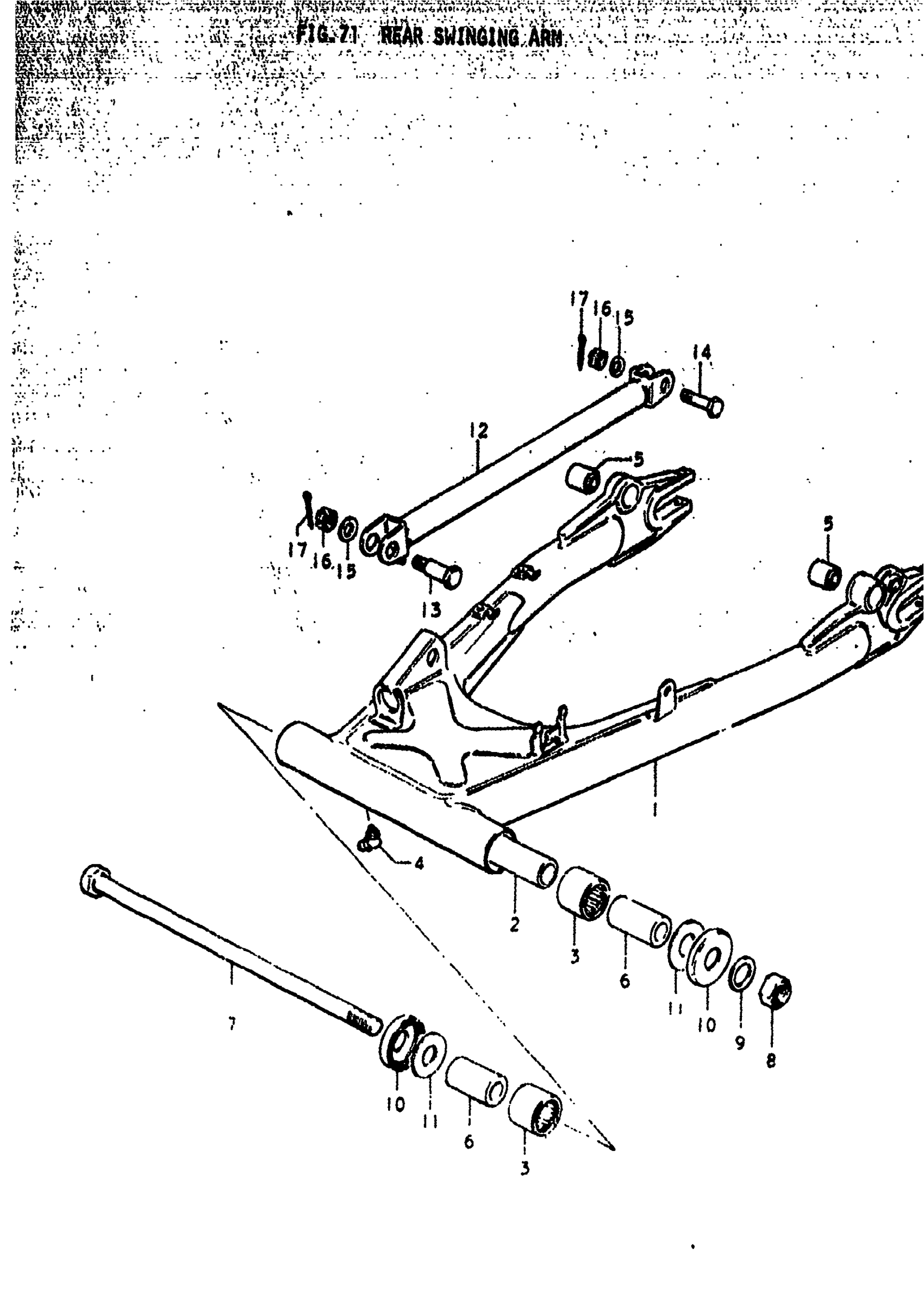

Suzuki GS750B (1979) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B This part replaces 61100-45810-019.

61100-45812-019

Unavailable

1

NO DESCRIPTION AVAILABLE | C&EC,N&EN; Includes Item(s) 2 - 6 This part replaces 61100-45811-019.

61100-45812-019

Unavailable

2

SPACER | B

61280-45000

Unavailable

2

SPACER | C&EC This part replaces 61280-45001.

61281-45001

Unavailable

2

SPACER | N&EN

61281-45001

Unavailable

3

BEARING | B,C&EC,N&EN

09263-22017

$22.58

4

NIPPLE, GREASE | B This part replaces 08351-31008.

08351-3100A

$4.45

5

BUSHING, REAR | B,C&EC,N&EN

09319-10008

$7.40

6

SPACER | C&EC,N&EN

61251-45001

$17.37

6

SPACER | B

61251-45000

Unavailable

7

SHAFT,RR SWGARM | B,C&EC,N&EN This part replaces 61211-31001.

61211-3100V

Unavailable

8

NUT | B,C&EC,N&EN This part replaces 08319-21148.

08319-2114A

$3.96

9

WASHER | B,C&EC,N&EN This part replaces 08322-11148.

08322-01147

$1.91

10

DUST SEAL | B,C&EC This part replaces 61262-45001.

61262-45002

$7.97

10

COVER, DUST SEAL | N&EN

61262-45002

$7.97

11

WASHER | B,C&EC,N&EN

09160-14020

$2.19

12

TORQUE LINK, REAR | B,C&EC,N&EN This part replaces 64310-45000-019.

64310-49000-019

Unavailable

13

BOLT,10X39 | B,C&EC,N&EN This part replaces 09111-10011.

09111-10022-XC0

Unavailable

14

BOLT, REAR | B,C&EC,N&EN

09101-10017

Unavailable

15

WASHER | B,C&EC,N&EN This part replaces 08322-11108.

08322-01107

$2.15

16

NUT | B,C&EC,N&EN This part replaces 08314-41108.

08314-4010B

$2.50

17

COTTER PIN | B,C&EC,N&EN This part replaces 04111-20208.

04111-2020A

$1.49
