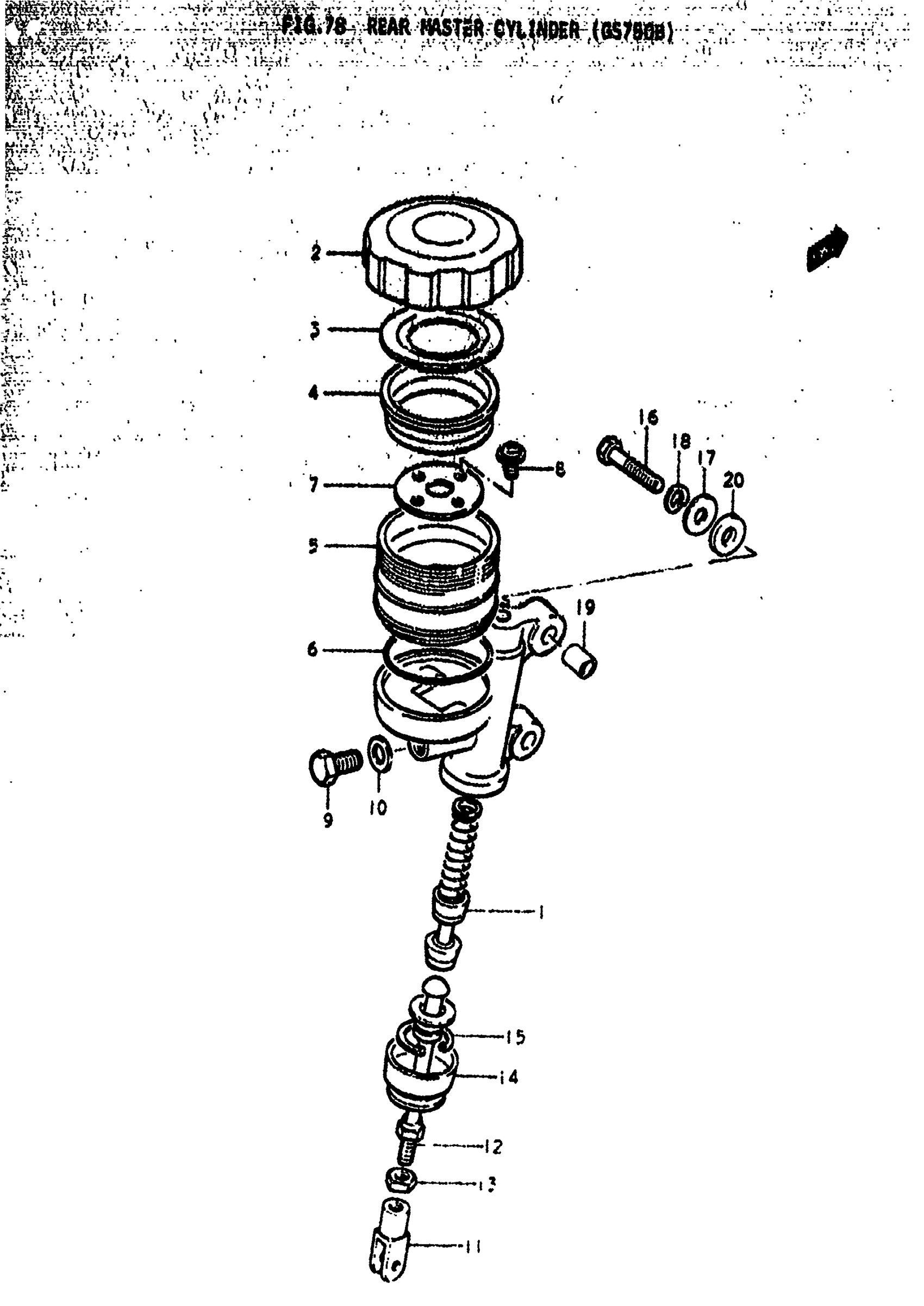

Suzuki GS750B (1979) REAR MASTER CYLINDER (GS750B) Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 15 This part replaces 69600-45601.

69600-45602

Unavailable

1

PISTON & CUP SET This part replaces 69600-45810.

69600-45820

$45.83

2

CAP This part replaces 59669-33602.

59669-07D00

$31.72

3

PLATE, DIAPHRAGM

59668-18441

$4.52

4

DIAPHRAGM

59667-18441

$10.28

5

RESERVIOR This part replaces 59687-33603.

59687-45000

Unavailable

6

O RING

59686-33600

Unavailable

7

PLATE, RESERVOIR

59685-33601

Unavailable

8

SCREW

59688-33600

Unavailable

9

BOLT

69695-45000

Unavailable

10

GASKET

69695-45000

Unavailable

11

YOKE This part replaces 69692-45001.

69692-34300

Unavailable

12

ROD, PUSH This part replaces 69670-45000.

69670-45001

Unavailable

13

NUT This part replaces 08312-12088.

08310-00087

$2.13

14

BOOT This part replaces 69691-45000.

69691-45001

$5.70

15

CIRCLIP

51162-70040

$3.25

16

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

17

WASHER (8.5X20X1.6) | 8.5x20x1.6 This part replaces 09160-08010.

09160-08054

$1.49

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

,SPACER

09180-08067

$2.41

20

CUSHION

09320-11007

Unavailable
