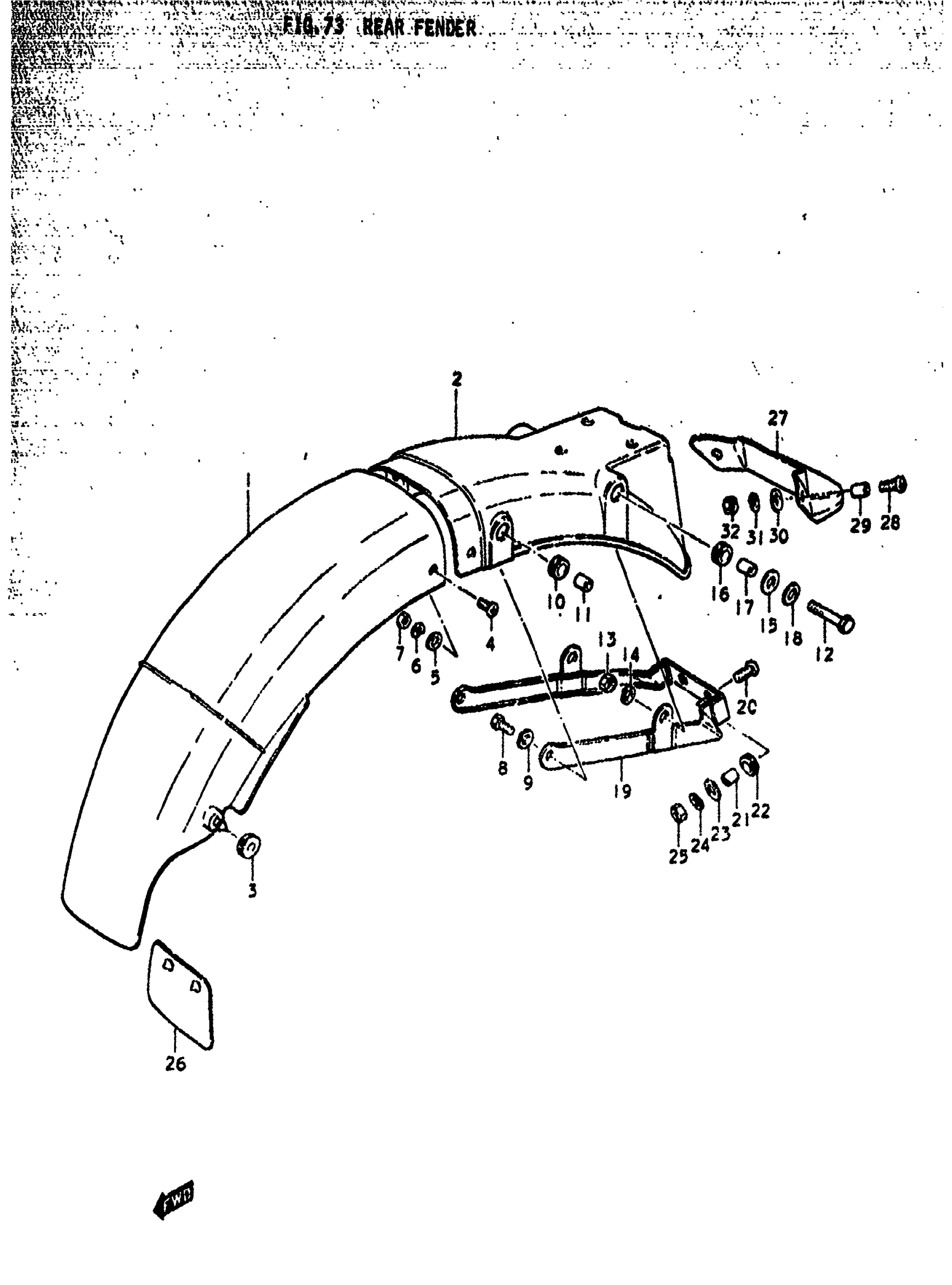

Suzuki GS750B (1979) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT | B,C&EC This part replaces 63112-45000.

63112-34500

Unavailable

1

BODY, REAR FENDER FRONT | N&EN This part replaces 63112-45001.

63112-34500

Unavailable

2

BODY, REAR FENDER REAR | B This part replaces 63113-45000-291.

63113-45001

Unavailable

2

BODY, REAR FENDER REAR | C&EC,N&EN

63113-45001

Unavailable

3

CUSHION (8X22X7) | B,C&EC,N&EN This part replaces 09320-08013.

09320-08509

$1.93

4

SCREW | B,C&EC,N&EN This part replaces 02142-05128.

02142-05127

$1.97

5

WASHER (5.5X16X1.2) | B,C&EC,N&EN; 5.5x16x1.2 This part replaces 09160-05017.

09160-05043

$2.30

6

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21058.

08321-0105A

$1.84

7

NUT | B,C&EC,N&EN This part replaces 08310-11058.

08310-00057

$1.84

8

BOLT | B,C&EC,N&EN This part replaces 01107-06208.

01500-06207

$2.28

9

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21068.

08321-01067

$2.13

10

CUSHION (8.5X20X8) | B,C&EC,N&EN This part replaces 09320-08007.

09320-08510

$1.97

11

SPACER | B,C&EC,N&EN; 6.1x9x7.5

09180-06038

$1.98

12

BOLT | B,C&EC,N&EN

01204-08457

$2.90

13

NUT | B,C&EC,N&EN This part replaces 08310-12088.

08310-00087

$2.13

14

.LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER | B,C&EC,N&EN; 8.5x26x1.2

09160-08032

$2.30

16

FENDER SIDE CUS | B,C&EC,N&EN This part replaces 09320-12011.

09320-12090

$1.91

17

SPACER | B,C&EC,N&EN; 8.2x11.8x7.5 This part replaces 09180-08021.

09180-08188

$2.56

18

WASHER | B,C&EC,N&EN This part replaces 08322-21088.

08322-01087

$2.13

19

REINFORCEMENT, REAR FENDER | B,C&EC,N&EN

63120-45000

Unavailable

20

SCREW | B,C&EC,N&EN

02142-06207

$1.49

21

SPACER (6.5X9X9) | B,C&EC,N&EN; 6.1x9x9 This part replaces 09180-06011.

09180-06263

$2.03

22

CUSHION (8X22X7) | B,C&EC,N&EN This part replaces 09320-08013.

09320-08509

$1.93

23

WASHER | B,C&EC,N&EN; 6.5x22x1.6 This part replaces 09160-06012.

09160-06054

$1.62

24

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21068.

08321-01067

$2.13

25

.NUT | B,C&EC,N&EN This part replaces 08310-11068.

08310-00067

$2.13

26

MUD GUARD, REAR FENDER | B,C&EC,N&EN

63411-31900

Unavailable

27

EXTENTION, REAR FENDER | B,C&EC,N&EN; OPT

63311-45600

Unavailable

28

SCREW | B,C&EC,N&EN; OPT; 6.2x8.3x5.7 This part replaces 09125-06009.

09125-06073

$1.84

29

SPACER | B,C&EC,N&EN; OPT; 6.5x18x1

09180-06001

$2.30

30

WASHER (6.5X18X1.0) | B,C&EC,N&EN; OPT; 6.5x18x1

09160-06028

$1.49

31

LOCK WASHER | B,C&EC,N&EN; OPT This part replaces 08321-21068.

08321-01067

$2.13

32

.NUT | B,C&EC,N&EN; OPT This part replaces 08310-11068.

08310-00067

$2.13
