1979 Suzuki GS750B Rear Caripers Diagram

← All diagrams

Find the part on the Rear Caripers diagram for your 1979 Suzuki GS750B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

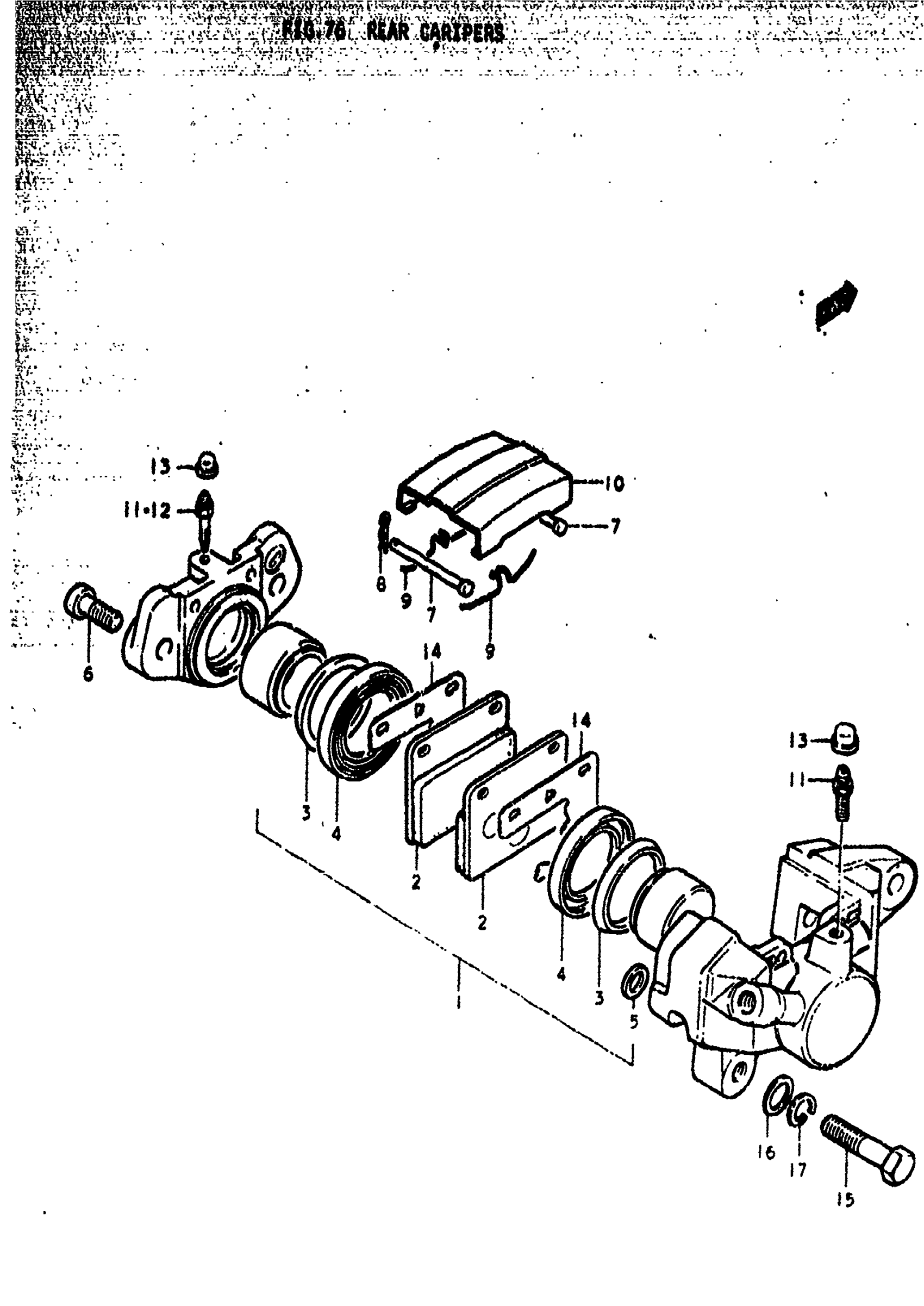

1979 Suzuki GS750B Rear Caripers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CALIPER ASSY, R | B This part replaces 69100-45000.

69100-08C00-999

1
Out of stock

0

CALIPER ASSY, R | C&EC,N&EN; Includes Item(s) 1 - 14 This part replaces 69100-45001.

69100-08C00-999

1
Out of stock

1

PISTON & PAD SET | B

69100-45810

1
Out of stock

1

PISTON SET | C&EC,N&EN This part replaces 69100-45820.

69100-08821

1
Out of stock

2

PAD SET | B This part replaces 69130-45000.

69101-45850-XNA

2
Out of stock

2

NO DESCRIPTION AVAILABLE | C&EC,N&EN This part replaces 69130-45001.

69101-45860-XNA

2
Out of stock

3

SEAL,PISTON | B,C&EC,N&EN This part replaces 59107-18410.

69107-05CF0

2
Out of stock

4

BOOT, PISTON | B,C&EC,N&EN

69108-45000

2
Out of stock

5

SEAL, PISTON | B,C&EC,N&EN

69107-45000

1
Out of stock

6

BOLT, HOUSING | B,C&EC,N&EN

69145-45000

2
Out of stock

7

PIN | B,C&EC,N&EN

69141-45000

2
Out of stock

8

.CLIP, PAD PIN | B,C&EC,N&EN

69142-45000

2
Out of stock

9

SPRING | B,C&EC,N&EN

69143-45001

2
Out of stock

10

DUST COVER | B,C&EC,N&EN

69151-45000

1
Out of stock

11

BREATHER | BC&EC,N&EN

59121-18410

2
Out of stock

12

BREATHER | C&EC,N&EN

69122-45000

1
Out of stock

13

CAP, BLEEDER | B,C&EC,N&EN This part replaces 59122-18410.

55156-66310

2
Out of stock

14

SHIM | B This part replaces 69152-45000.

69152-45001

2
Out of stock

14

SHIM | C&EC,N&EN

69152-45001

2
Out of stock

15

BOLT, LOWER | B,C&EC,N&EN This part replaces 09100-10107.

09117-10017

2
Out of stock

16

WASHER | B,C&EC,N&EN This part replaces 08322-21108.

08322-01107

2
Out of stock

17

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21108.

08321-01107

2
Out of stock
