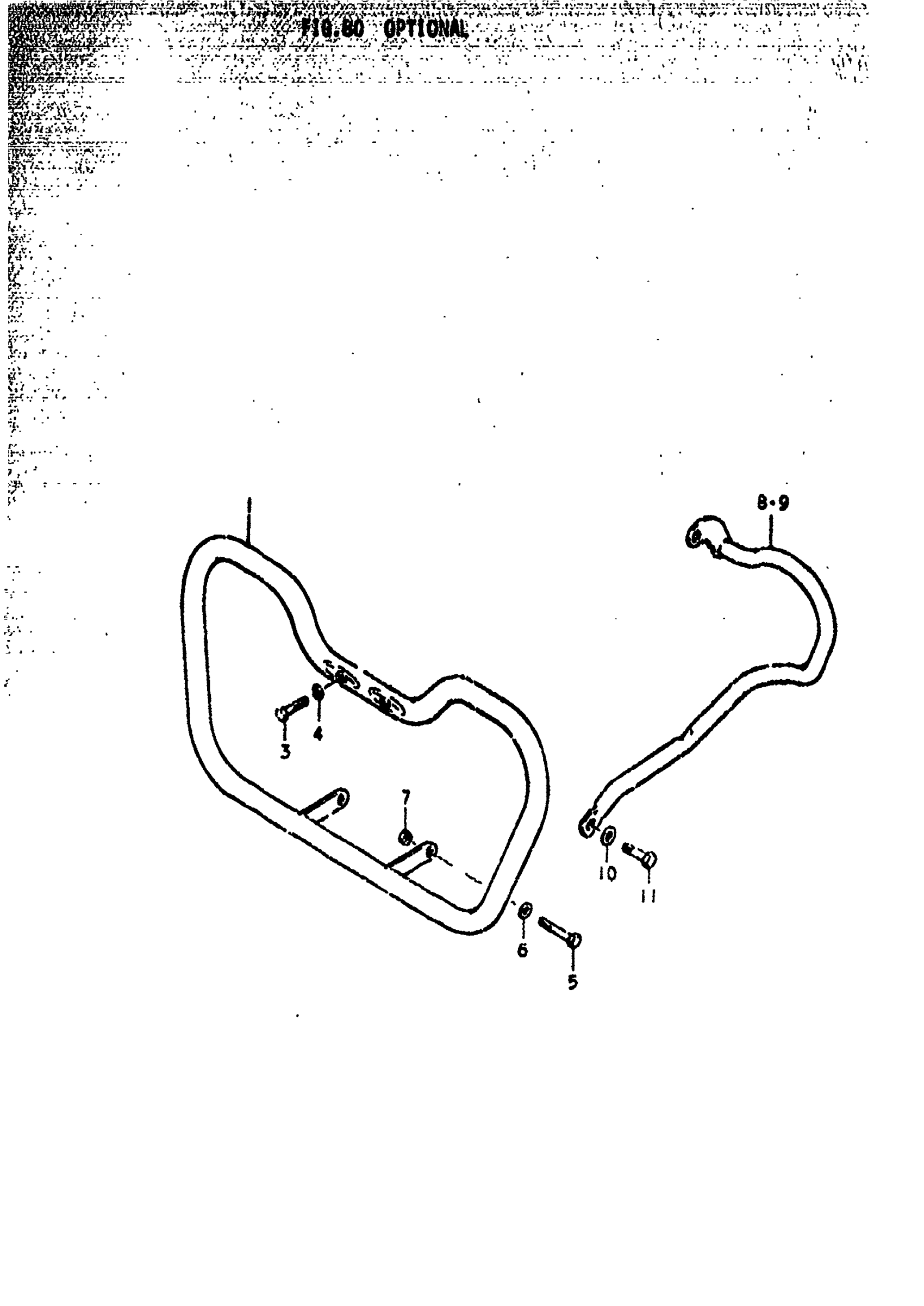

Suzuki GS750B (1979) OPTIONAL Diagram

#

Description
Price

1

BUMPER FRONT | B,C&EC,N&EN

94210-45000

Unavailable

2

FRONT BUMPER FITING SET FRONT | B,C&EC,N&EN; NOT SHOWN; Includes Item(s) 3 - 7

94200-45810

Unavailable

3

BOLT | B,C&EC,N&EN This part replaces 01107-08408.

01500-0840A

$2.62

4

.LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21088.

08321-01087

$1.83

5

BOLT, LOWER FRONT | B,C&EC,N&EN

09100-08092

Unavailable

6

WASHER | B,C&EC,N&EN This part replaces 08322-11088.

08322-01087

$1.86

7

NUT | B,C&EC,N&EN This part replaces 08310-12086.

08310-0008A

$1.86

8

BUMPER, RH REAR | B

94810-45900

Unavailable

8

BUMPER, RH REAR | C&EC,N&EN

94810-45901

Unavailable

9

BUMPER, LH REAR | B

94820-45900

Unavailable

9

BUMPER, LH REAR | C&EC,N&EN

94820-45901

Unavailable

10

WASHER | B,C&EC,N&EN This part replaces 09160-10013.

09160-10123

$2.13

11

BOLT REAR | B,C&EC,N&EN

09104-10004

Unavailable
