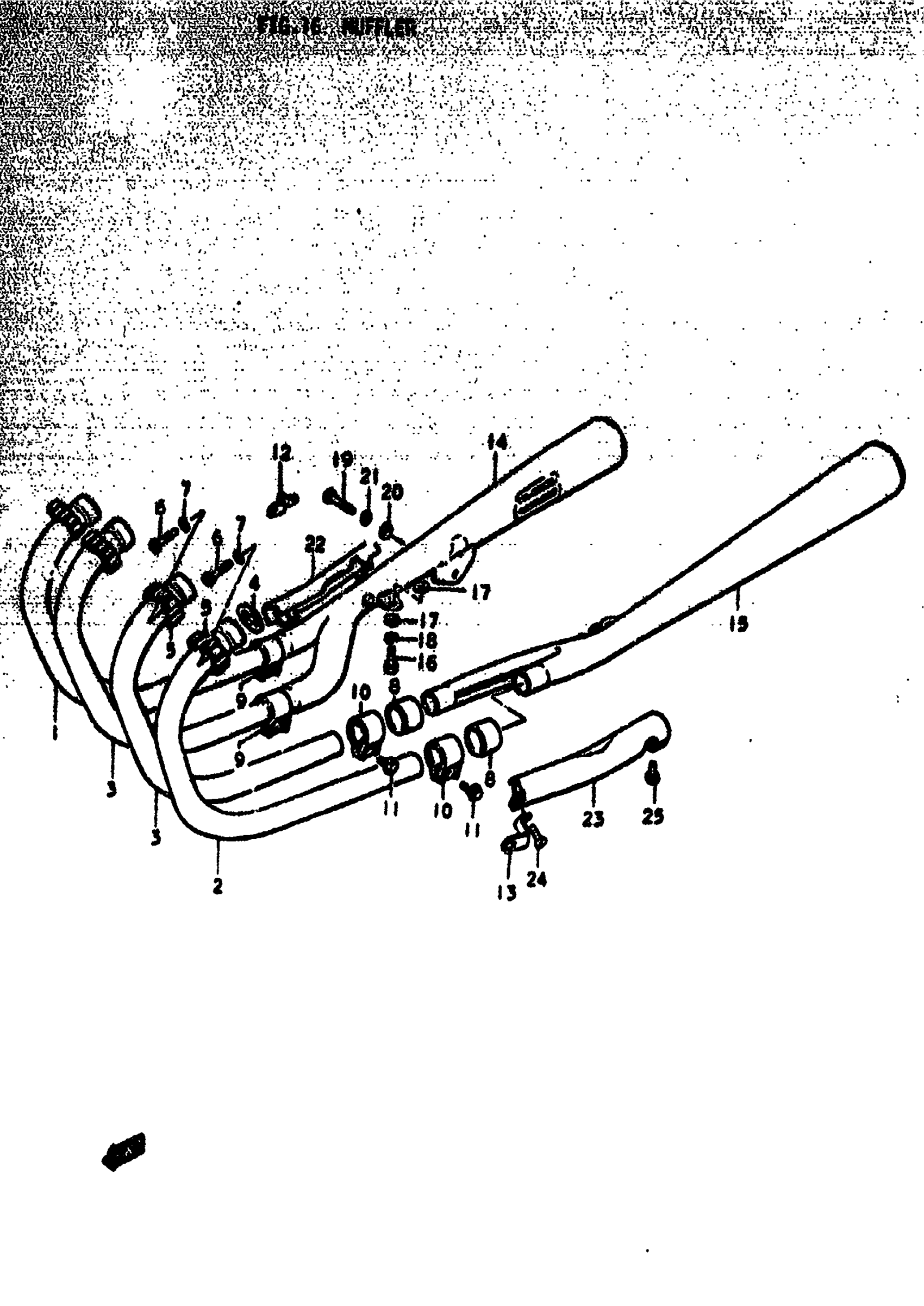

Suzuki GS750B (1979) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH | B,C&EC,N&EN

14150-45000

Unavailable

2

PIPE, EXHAUST LH | B,C&EC,N&EN

14160-45000

Unavailable

3

PIPE, EXHAUST CENTER | B,C&EC,N&EN

14170-45000

Unavailable

4

GASKET, EXHAUST PIPE | B,C&EC,N&EN This part replaces 14181-11010.

14181-01D00

$7.11

5

CLAMP | B,C&EC,N&EN

14182-44000

Unavailable

6

BOLT | B,C&EC,N&EN This part replaces 01107-08358.

01500-0835B

$3.04

7

.LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21088.

08321-01087

$2.13

8

CONNECTOR, MUFFLER | B,C&EC,N&EN

14771-44010

Unavailable

9

CLAMP, CONNECTOR LH | B,C&EC,N&EN This part replaces 09402-41701.

09402-41702

Unavailable

10

CLAMP, CONNECTOR LH | B,C&EC,N&EN

09402-41702

Unavailable

11

BOLT | B,C&EC,N&EN This part replaces 01517-08258.

01550-08257

$2.81

12

PLATE, CONNECTOR RH | B,C&EC,N&EN

14475-45000

Unavailable

13

PLATE, CONNECTOR LH | B,C&EC,N&EN

14485-45000

Unavailable

14

NO DESCRIPTION AVAILABLE | B This part replaces 14310-45000.

14305-45001-H01

Unavailable

14

NO DESCRIPTION AVAILABLE | C&EC,N&EN This part replaces 14310-45001.

14305-45001-H01

Unavailable

15

NO DESCRIPTION AVAILABLE | B This part replaces 14340-45000.

14306-45001-H01

Unavailable

15

NO DESCRIPTION AVAILABLE | C&EC,N&EN This part replaces 14340-45001.

14306-45001-H01

Unavailable

16

PLUG, DRAIN | B,C&EC,N&EN This part replaces 01107-08168.

01500-0816B

$2.50

17

WASHER (8.5X20X1.6) | B,C&EC,N&EN; 8.5x20x1.6 This part replaces 09160-08010.

09160-08054

$1.49

18

.LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21088.

08321-01087

$2.13

19

BOLT | B,C&EC,N&EN This part replaces 01107-10308.

01500-1030A

$3.16

20

WASHER | B,C&EC,N&EN This part replaces 08322-21108.

08322-01107

$2.15

21

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21108.

08321-01107

$1.84

22

COVER, MUFFLER RH | B,C&EC,N&EN

14780-45000

Unavailable

23

COVER, MUFFLER LH | B,C&EC,N&EN

14790-45000

Unavailable

24

SCREW | B,C&EC,N&EN This part replaces 02112-05208.

02112-05207

$1.97

25

SCREW | B,C&EC,N&EN This part replaces 02112-05068.

09125-05122

$2.06
