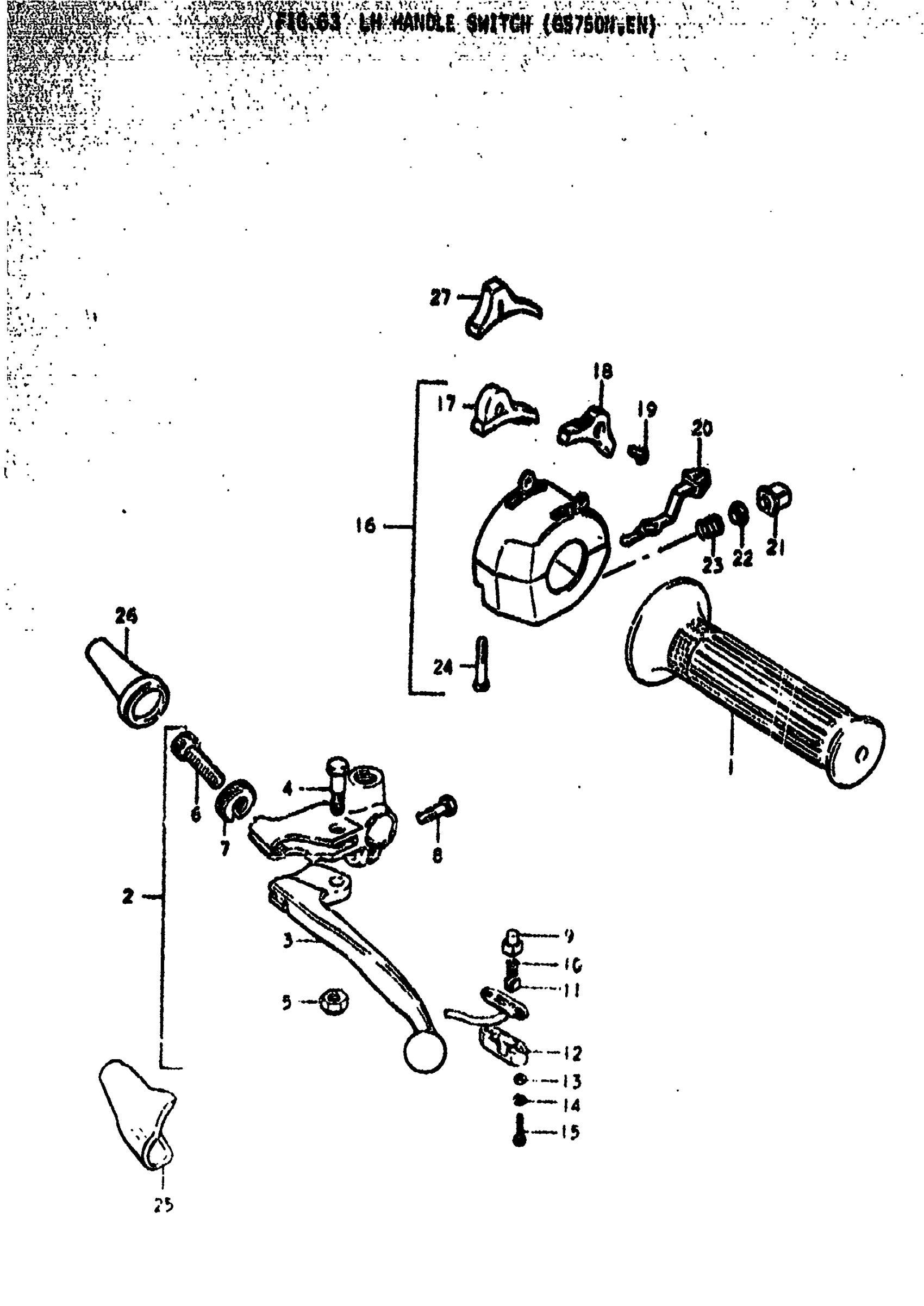

Suzuki GS750B (1979) LH HANDLE SWITCH (GS750N Diagram

#

Description
Price

1

GRIP This part replaces 57211-45030.

57211-24201

Unavailable

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 15

57500-44000

Unavailable

3

LEVER, CLUTCH

57620-44000

$29.65

4

BOLT This part replaces 57431-11010.

57431-11013

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

ADJUSTER, CABLE

57441-11010

$5.62

7

NUT

57442-11010

$2.79

8

BOLT This part replaces 01107-06208.

01500-06207

$2.28

9

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

10

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

11

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

12

COVER

57481-33010

$5.84

13

WASHER This part replaces 08322-21038.

08322-01037

$1.93

14

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

15

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

16

SWITCH ASSY, HANDLE LH | Includes Item(s) 17 - 24 This part replaces 37400-45602.

37400-45603

Unavailable

17

KNOB, STOPPER

37414-45602

Unavailable

18

KNOB, DIMMER SWITCH

37421-45012

$6.17

19

SCREW This part replaces 02122-03068.

02122-03067

$1.80

20

KNOB, TURN SIGNAL LAMP SWITCH

37513-45011

$7.22

21

BUTTON, HORN

57371-45000

$4.52

22

CONTACT

57372-45000

$4.45

23

SPRING

57382-45000

$3.37

24

SCREW This part replaces 02112-05258.

02112-05257

$1.49

25

COVER, CLUTCH LEVER

57661-31000

$7.25

26

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

27

KNOB, LIGHTING | OPT

37411-45012

$5.24
