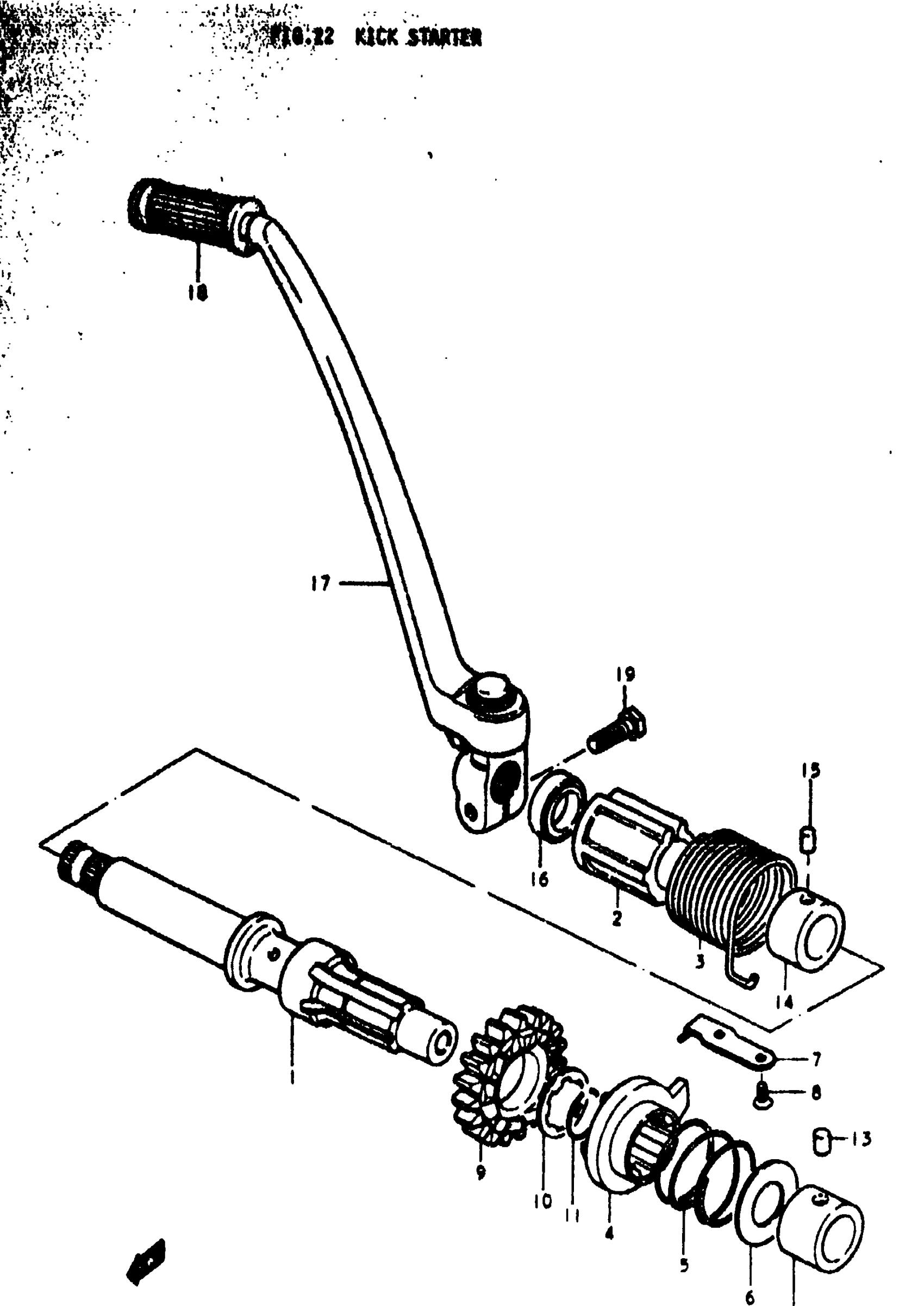

Suzuki GS750B (1979) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | B,C&EC,N&EN

26210-45001

Unavailable

2

GUIDE, SPRING | B This part replaces 26221-45000.

26221-45001

Unavailable

2

GUIDE, SPRING | C&EC,N&EN

26221-45001

Unavailable

3

SPRING | B,C&EC,N&EN

09448-45009

Unavailable

4

STARTER, KICK | B,C&EC This part replaces 26231-30000.

26231-22A10

$63.88

4

STARTER, KICK | N&EN This part replaces 26231-30001.

26231-22A10

$63.88

5

SPRING | B,C&EC,N&EN

09440-32002

$2.27

6

PLATE | B,C&EC,N&EN

08212-17342

Unavailable

7

GUIDE, STARTER | B,C&EC,N&EN

26232-45000

Unavailable

8

SCREW | B,C&EC,N&EN This part replaces 02122-06168.

02122-06167

$1.49

9

GEAR, KICK STARTER DRIVE | B,C&EC,N&EN; NT:19

26240-45000

Unavailable

10

WASHER | B,C&EC,N&EN

09167-22007

Unavailable

11

CIRCLIP | B,C&EC,N&EN

09380-22003

$1.92

12

BUSHING, LH | B,C&EC,N&EN

09300-17002

Unavailable

13

DOWEL, PIN | B,C&EC,N&EN

04221-07129

$1.86

14

BUSHING, RH | B,C&EC,N&EN

09300-20019

Unavailable

15

DOWEL PIN | B,C&EC,N&EN

04221-07129

$1.86

16

DUST SEAL, INNER | B This part replaces 09285-20002.

09283-20031

$5.24

16

OIL SEAL | C&EC,N&EN

09283-20031

$5.24

17

LEVER ASSY, KICK STARTER | B,C&EC,N&EN; Includes Item(s) 18

26300-45000

Unavailable

18

RUBBER,KICK STA | B,C&EC,N&EN This part replaces 26352-01000.

26352-01020

$3.25

19

BOLT | B,C&EC,N&EN This part replaces 01107-08258.

01500-08257

$2.50
