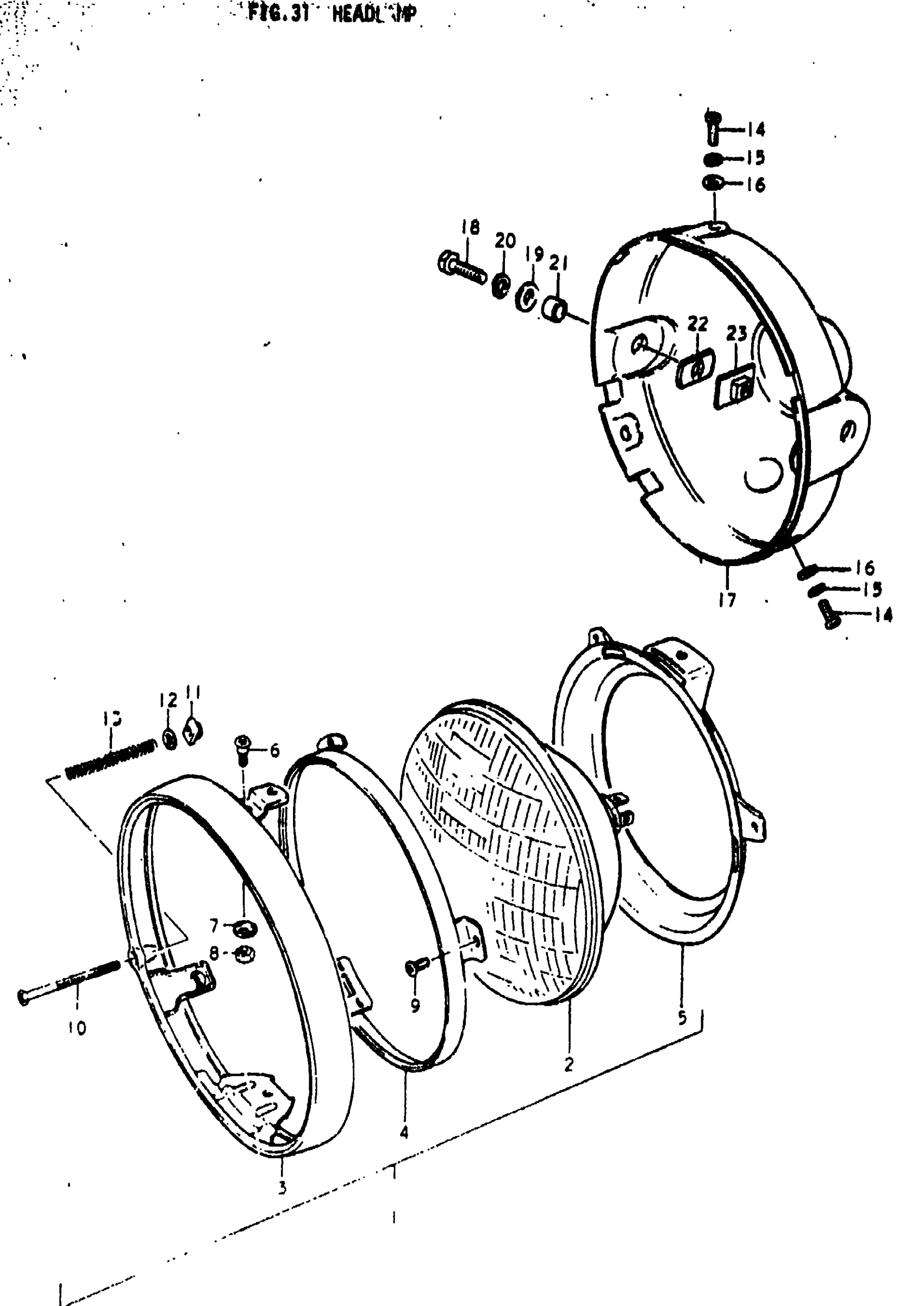

Suzuki GS750B (1979) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | B This part replaces 35100-45600.

35100-45601

Unavailable

1

HEADLAMP ASSY # | C&EC,N&EN; Includes Item(s) 2 - 13

35100-45601

Unavailable

2

UNIT | B; 12V, 50/35W This part replaces 35121-45600.

35121-45601

Unavailable

2

UNIT | C&EC,N&EN; 12V, 50/35W

35121-45601

Unavailable

3

RIM | B,C&EC,N&EN

35111-45600

Unavailable

4

RETAINER | B,C&EC,N&EN

35127-45600

$38.46

5

RING, MOUNTING | B,C&EC,N&EN

35130-45600

Unavailable

6

SCREW,HEAD LAMP | B,C&EC,N&EN This part replaces 35136-25611.

35136-35400

$4.58

7

SPACER | B,C&EC,N&EN

35133-45600

Unavailable

8

NUT | B,C&EC,N&EN This part replaces 35135-25611.

08316-1005A

$2.19

9

SCREW | B,C&EC,N&EN This part replaces 02112-03088.

02112-0308A

$1.80

10

SCREW | B,C&EC,N&EN This part replaces 35151-27630.

35151-45230

Unavailable

11

NUT | B,C&EC,N&EN

35135-45600

$3.65

12

WASHER | B,C&EC,N&EN

35157-27630

$3.25

13

SPRING | B,C&EC,N&EN

35154-45600

Unavailable

14

SCREW | B,C&EC,N&EN This part replaces 09125-05022.

09125-05115

$3.20

15

WASHER | B,C&EC,N&EN This part replaces 09162-05003.

09162-05002

$1.49

16

WASHER | B,C&EC,N&EN

09169-06021

$2.36

17

HOUSING, HEADLAMP | B,C&EC,N&EN

51811-45002-291

Unavailable

18

BOLT | B,C&EC,N&EN

01204-08257

$1.96

19

WASHER | B,C&EC,N&EN This part replaces 08322-11086.

08322-0108A

$1.92

20

.LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21088.

08321-01087

$2.13

21

SPACER | B,C&EC,N&EN; 8x15.2x7 This part replaces 09180-08030.

09180-08187

$2.65

22

CUSHION | B,C&EC,N&EN This part replaces 09329-12002.

09329-12005

$2.32

23

PLATE | B,C&EC,N&EN

51860-45000

$4.43
