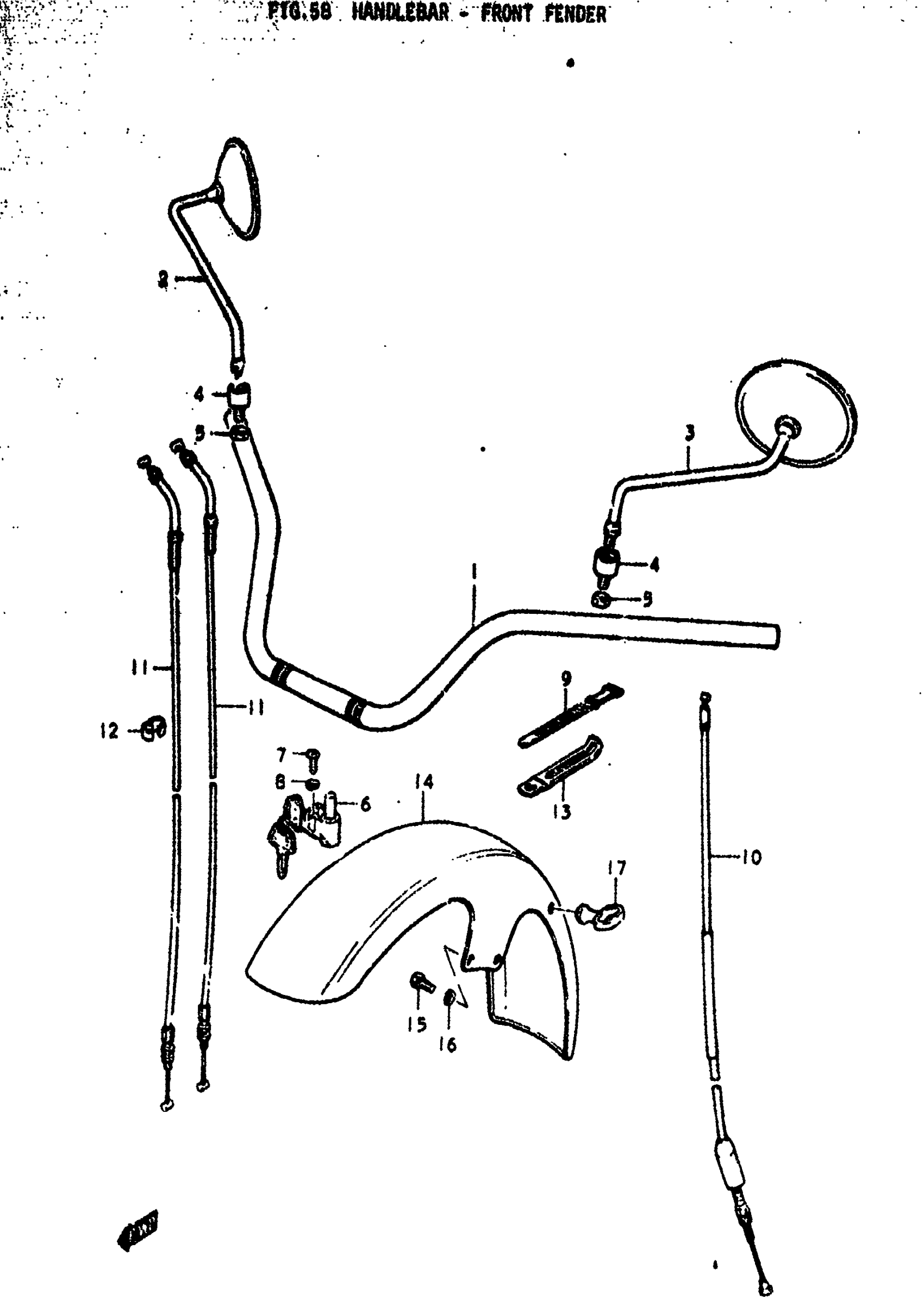

Suzuki GS750B (1979) HANDLEBAR - FRONT FENDER Diagram

NO DESCRIPTION AVAILABLE | B This part replaces 56111-37000.

56111-45031

Unavailable

NO DESCRIPTION AVAILABLE | C&EC This part replaces 56111-45030.

56111-45031

Unavailable

HANDLEBAR | N&EN

56111-45060

Unavailable

MIRROR ASSY,RR | B This part replaces 56500-45010.

56500-45014

$64.82

MIRROR ASSY,RR | C&EC,N&EN This part replaces 56500-45012.

56500-45014

$64.82

MIRROR ASSY,RR | B This part replaces 56600-45010.

56600-45014

$64.82

MIRROR ASSY,RR | C&EC,N&EN This part replaces 56600-45012.

56600-45014

$64.82

CUSHION, REAR VIEW MIRROR | B,C&EC,N&EN This part replaces 56700-31001.

56700-45400

$21.90

NUT | B,C&EC,N&EN This part replaces 08310-22108.

08310-00107

$2.19

LOCK ASSY, STEERING | B This part replaces 51900-33810.

51900-33811

Unavailable

SCREW | B This part replaces 02111-05257.

02112-05257

$1.49

LOCK WASHER | B This part replaces 08321-21058.

08321-0105A

$1.84

BAND | B,C&EC,N&EN; L:120

09407-12402

$3.04

CABLE,CLUTCH | B This part replaces 58200-45610.

58200-45201

Unavailable

CABLE,CLUTCH | C&EC,N&EN This part replaces 58200-45611.

58200-45201

Unavailable

CABLE, THROTTLE | B

58300-45610

Unavailable

CABLE,THROTTLE | C&EC,N&EN This part replaces 58300-45030.

58300-45X02

Unavailable

CLIP | B,C&EC,N&EN

09408-00002

$2.30

CLAMP | B,C&EC,N&EN This part replaces 09404-06403.

09404-06039

$1.74

FENDER, FRONT | B This part replaces 53110-45000.

53110-45602

Unavailable

FENDER, FRONT | C&EC This part replaces 53110-45002.

53110-45602

Unavailable

FENDER, FRONT | N&EN

53110-45602

Unavailable

PLUG, DRAIN | B,C&EC,N&EN This part replaces 01107-08168.

01500-0816B

$2.50

.LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21088.

08321-01087

$2.13

GUIDE, METER CABLE | B This part replaces 58621-21202.

58621-21204

$6.68

GUIDE, METER CABLE | C&EC,N&EN This part replaces 58621-21203.

58621-21204

$6.68
