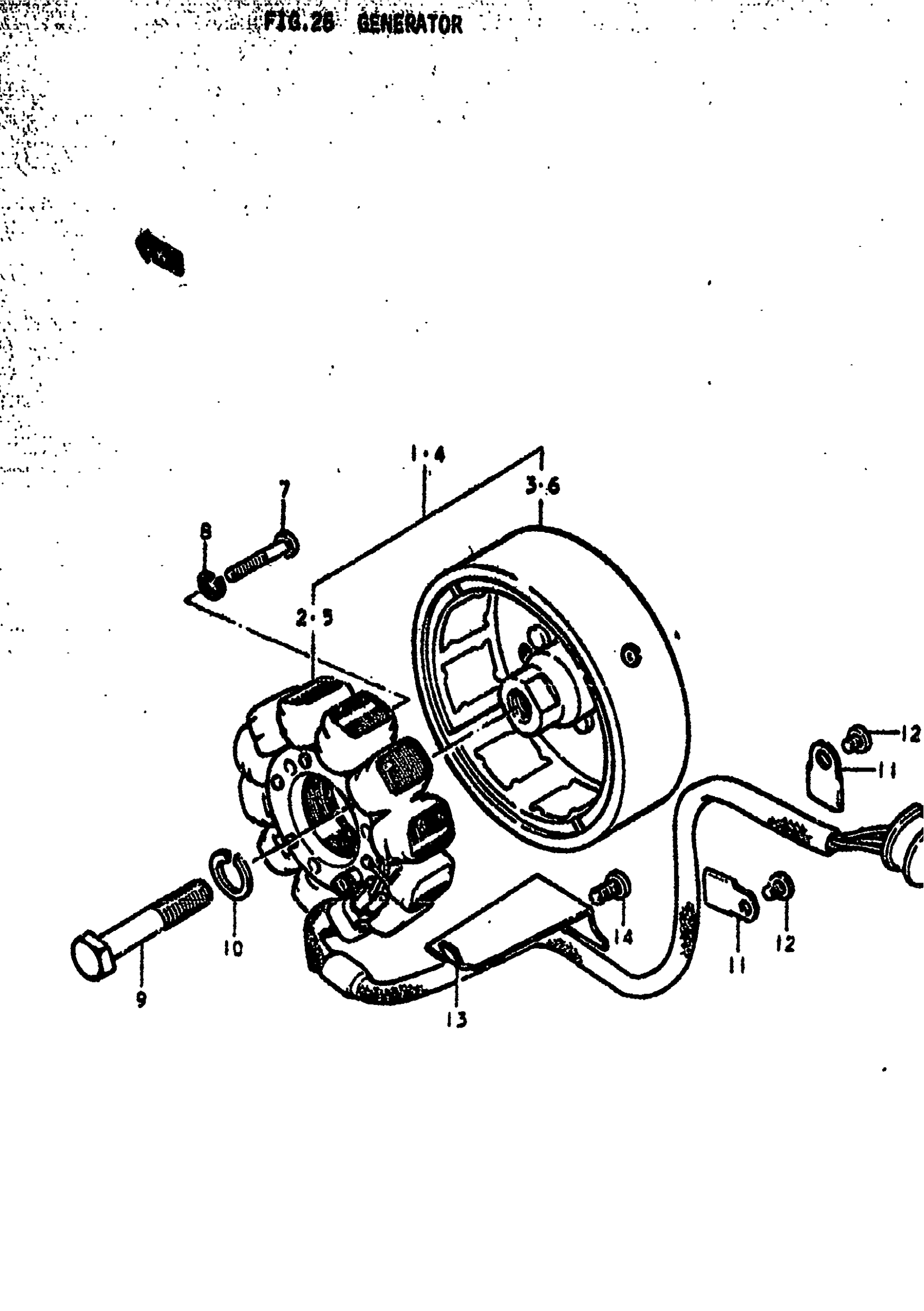

Suzuki GS750B (1979) GENERATOR Diagram

#

Description
Price

1

STATOR | B; ND This part replaces 31400-45010.

31401-45011

Unavailable

1

STATOR | C&EC,N&EN; ND; Includes Item(s) 2 - 3 This part replaces 31400-45011.

31401-45011

Unavailable

2

STATOR | B; ND This part replaces 31401-45010.

31401-45011

Unavailable

2

STATOR | C&EC,N&EN; ND

31401-45011

Unavailable

3

ROTOR | B; ND This part replaces 31402-45010.

31402-45011

Unavailable

3

ROTOR | C&EC,N&EN; ND

31402-45011

Unavailable

4

STATOR | B; KOKISAN; Includes Item(s) 5 - 6 This part replaces 31400-45020.

31401-45030

Unavailable

5

STATOR | B; KOKISAN This part replaces 31401-45020.

31401-45030

Unavailable

6

ROTOR | B; KOKISAN This part replaces 31402-45020.

31402-45030

Unavailable

7

SCREW | B,C&EC,N&EN This part replaces 02112-05308.

02112-0530A

$2.05

8

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21058.

08321-0105A

$1.84

9

BOLT | B,C&EC,N&EN This part replaces 01107-12458.

01500-12457

$6.12

10

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21128.

08321-01127

$2.06

11

CLAMP | B,C&EC,N&EN

31497-45000

$1.92

12

SCREW | B,C&EC,N&EN This part replaces 02112-05068.

09125-05122

$2.06

13

CLAMP | B,C&EC,N&EN

31498-45000

$2.15

14

SCREW | B,C&EC,N&EN This part replaces 02112-06108.

02112-06107

$1.49
