Partiron

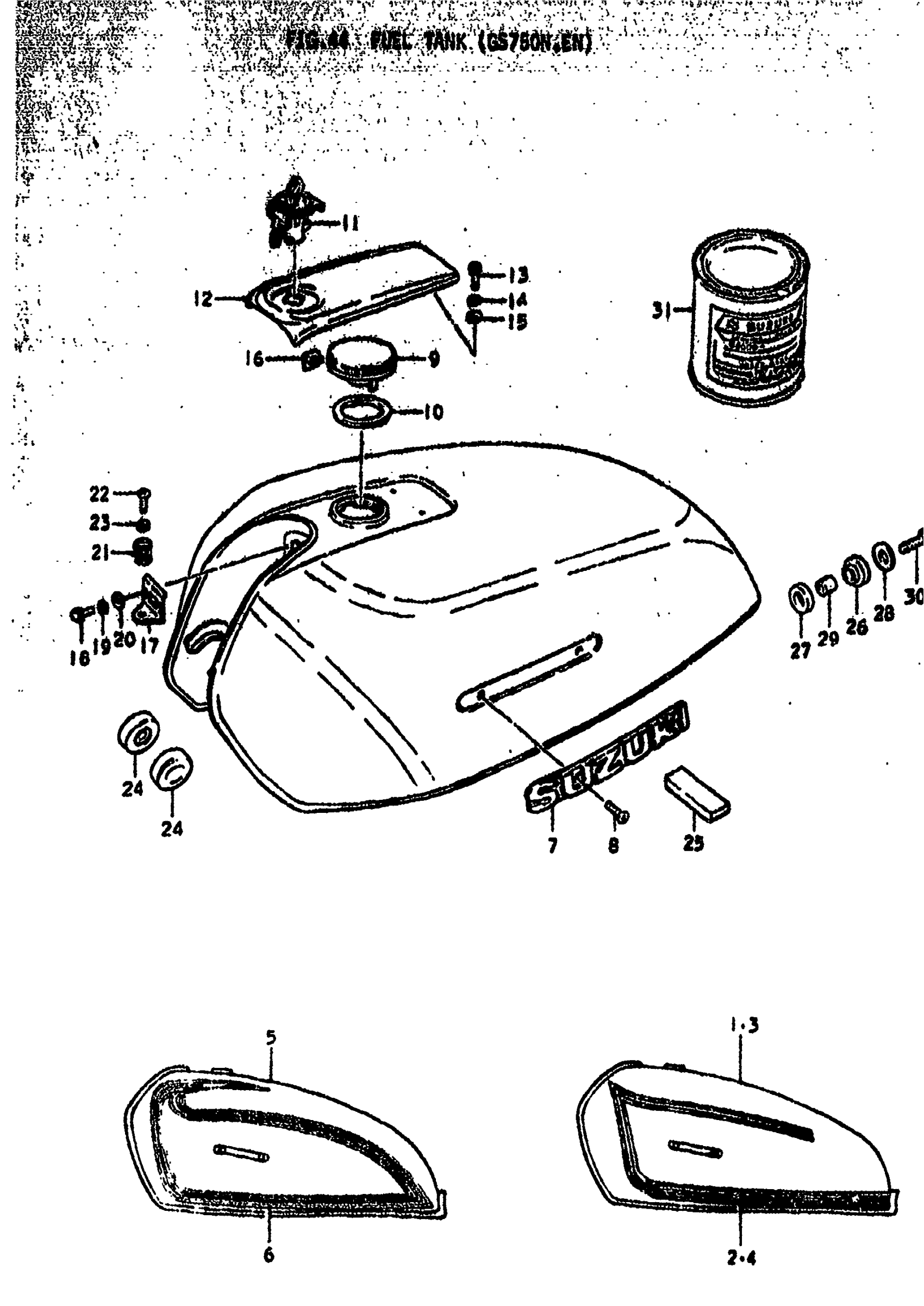

Suzuki GS750B (1979) FUEL TANK (GS750N Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N; Includes Item(s) 2 This part replaces 44100-45050-08J.

44110-45000-13L

Unavailable

2

TAPE SET | N

68100-45880-67B

Unavailable

3

TANK, FUEL | N; Includes Item(s) 4

44100-45050-07P

Unavailable

4

TAPE SET | N

68100-45880-67C

Unavailable

5

NO DESCRIPTION AVAILABLE | EN; Includes Item(s) 6 This part replaces 44100-45040-08E.

44110-45000-13L

Unavailable

6

TAPE SET | EN

68101-45811-67A

Unavailable

7

EMBLEM | N,EN

68111-45010

$24.36

8

SCREW | N,EN This part replaces 02132-03065.

02122-0306B

$2.26

9

CAP FUEL TANK | N,EN This part replaces 44210-23300.

44200-23810

$49.39

10

GASKET | N,EN

85413-70000

$4.40

11

LOCK ASSY, FRONT COVER | N,EN

44280-37010

$58.13

12

COVER, FUEL TANK | N,EN

44270-45003

Unavailable

13

BOLT | N,EN This part replaces 01104-05108.

01500-0510B

$1.80

14

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.84

15

WASHER | N,EN This part replaces 08322-21058.

08322-01057

$2.13

16

CUSHION | N,EN This part replaces 44276-37001.

44276-37002

$3.12

17

TANK FR COVER H | N,EN This part replaces 44290-37001.

44290-3700V

Unavailable

18

BOLT | N,EN This part replaces 01104-05108.

01500-0510B

$1.80

19

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.84

20

WASHER | N,EN This part replaces 08322-21058.

08322-01057

$2.13

21

SPRING | N,EN

09446-17001

$2.84

22

SCREW | N,EN This part replaces 02112-05108.

02112-05107

$1.49

23

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.84

24

CUSHION | N,EN This part replaces 09329-10007.

09329-10026

$2.23

25

CUSHION FUEL TA | N,EN This part replaces 09329-01005.

09329-01008

$4.77

26

CUSHION, REAR NO.1 | N,EN

09320-12013

$2.60

27

CUSHION, REAR NO.2 | N,EN

09320-12017

$2.18

28

WASHER, EXHAUST SUPPORT | N,EN; 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

29

SPACER 8.2X12X1 | N,EN; 8.2x12x17 This part replaces 09180-08032.

09180-08143

$3.77

30

BOLT | N,EN This part replaces 01107-08308.

01500-08307

$3.04

31

PAINT (BLACK) | N,EN; OPT

99000-10109-019

Unavailable

31

PAINT (BLACK SEMI-GLOSS) | N,EN; OPT

99000-10109-291

Unavailable

31

PAINT (CANDY LOVELOCK MAROON) | N; OPT NET:90G

99000-10209-08J

Unavailable

31

PAINT (MARBLE PURE RED) | N; OPT

99000-10209-07P

Unavailable

31

PAINT (PEARL BLACK) | EN; OPT

99000-10209-08E

Unavailable
