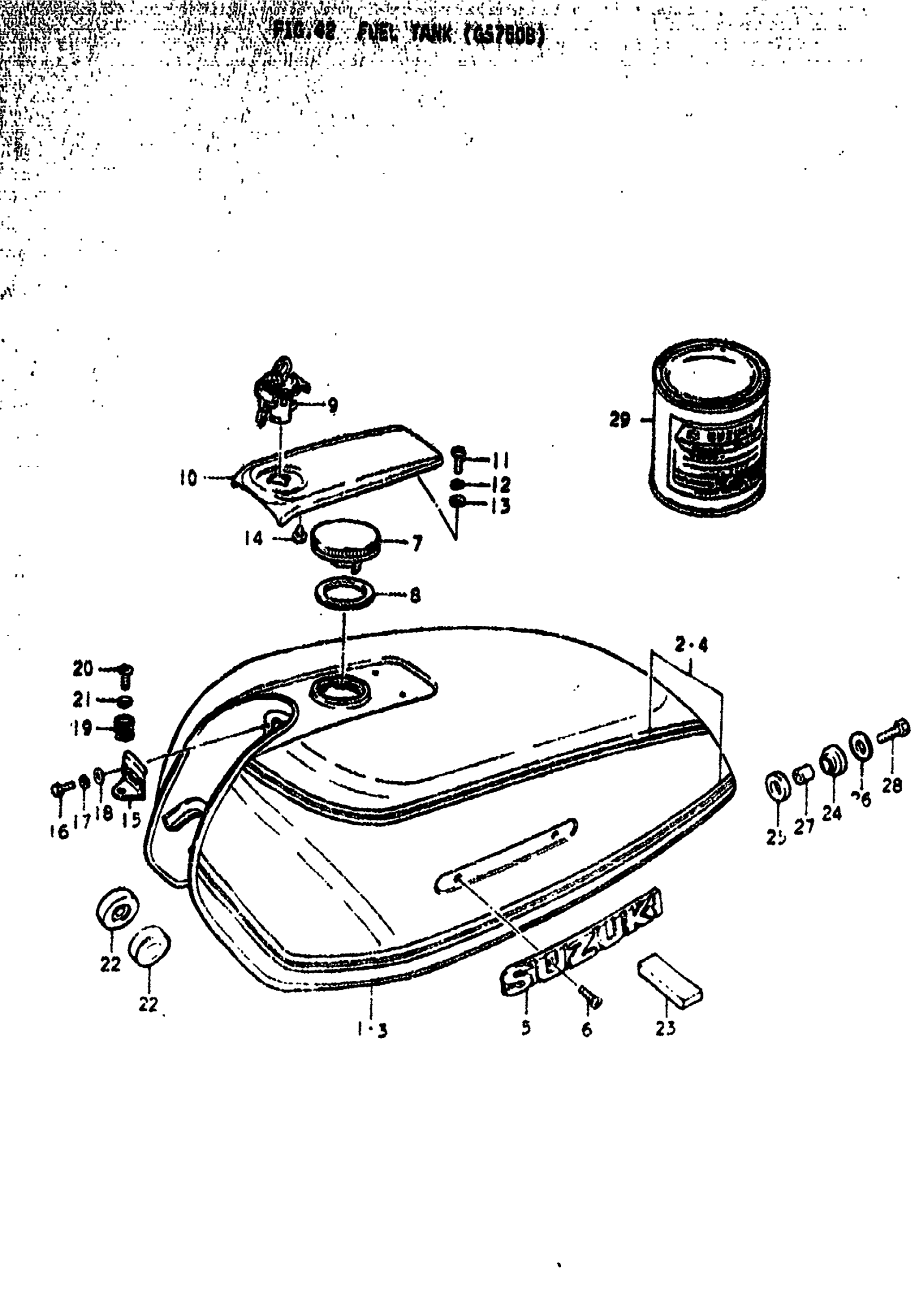

Suzuki GS750B (1979) FUEL TANK (GS750B) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44110-45000-03E.

44110-45000-13L

Unavailable

2

TAPE SET

68100-45810-61P

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 44110-45000-00J.

44110-45000-13L

Unavailable

4

TAPE SET

68100-45810-61R

Unavailable

5

EMBLEM

68111-45000

$25.03

6

SCREW This part replaces 09127-03002.

02122-0306B

$2.26

7

CAP FUEL TANK This part replaces 44210-23300.

44200-23810

$49.39

8

GASKET

85413-70000

$4.40

9

LOCK ASSY, FRENT COVER

44280-37010

$58.13

10

COVER, FUEL TANK This part replaces 44270-45000.

44270-45003

Unavailable

11

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

WASHER This part replaces 08322-21058.

08322-01057

$2.13

14

CUSHION

09321-06011

$2.53

15

TANK FR COVER H This part replaces 44290-37001.

44290-3700V

Unavailable

16

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

18

WASHER This part replaces 08322-21058.

08322-01057

$2.13

19

SPRING

09446-17001

$2.84

20

SCREW This part replaces 02111-05108.

02112-05107

$1.49

21

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

22

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

23

CUSHION, CENTER

44541-33000

Unavailable

24

CUSHION, REAR NO. 1

09320-12013

$2.60

25

CUSHION, REAR NO. 2

09320-12017

$2.18

26

WASHER, EXHAUST SUPPORT | 8.5*29*1.6 This part replaces 09160-08002.

09160-08135

$2.35

27

SPACER 8.2X12X1 | 8.2x12x17 This part replaces 09180-08032.

09180-08143

$3.77

28

BOLT This part replaces 01107-08308.

01500-08307

$3.04

29

PAINT (BLACK) | OPT NET:90G

99000-10109-019

Unavailable

29

PAINT (BLACK SEMI-GLOSS) | OPT NET:90G

99000-10109-291

Unavailable

29

NO DESCRIPTION AVAILABLE | OPT NET:90G This part replaces 99000-10209-712.

99000-10209-00J

Unavailable

29

PAINT (POTOMAC BLUE METALLIC) | OPT NET:90G

99000-10209-03E

Unavailable
