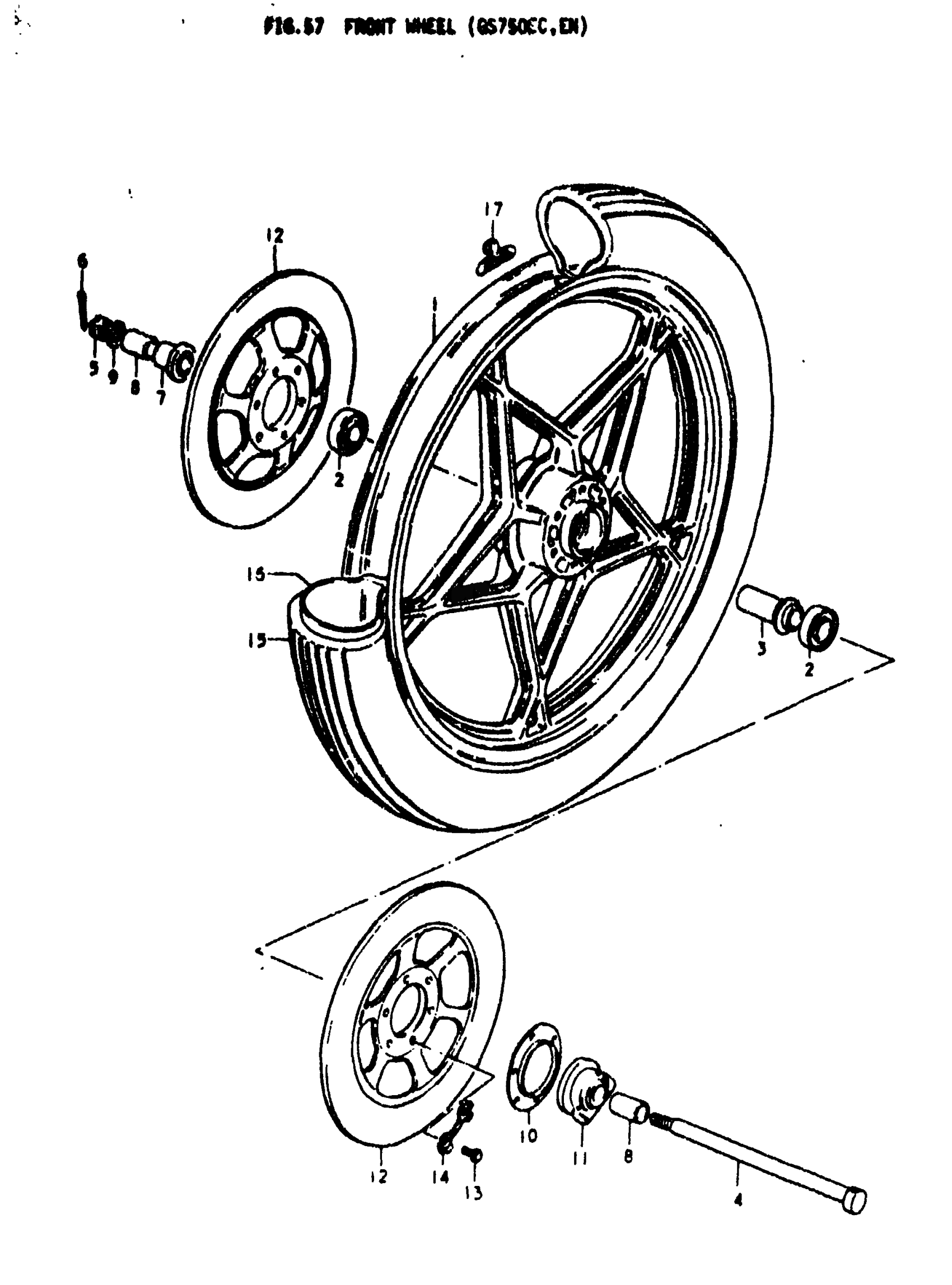

Suzuki GS750B (1979) FRONT WHEEL (GS750EC Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | EC; 1.85x19 This part replaces 54111-47601.

54111-49350-291

Unavailable

1

NO DESCRIPTION AVAILABLE | EN; 1.85x19 This part replaces 54111-47620.

54111-49350-291

Unavailable

2

BEARING | EC This part replaces 08123-63020.

08123-6302B

$22.74

2

BEARING | EN This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER | EC,EN

54730-18400

$20.45

4

AXLE,FRONT | EC,EN This part replaces 54711-33002.

54711-3300V

Unavailable

5

NUT | EC,EN This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN | EC,EN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, AXLE, RH | EC This part replaces 54740-18401.

54740-18402

Unavailable

7

SPACER, AXLE | EN

54740-18402

Unavailable

8

SPACER, AXLE | EC,EN; 15x22x30

09180-15034

Unavailable

9

WASHER | EC,EN This part replaces 08322-21128.

08322-01127

$1.84

10

DUST SEAL, SPEEDOMETER GEAR BO | EC,ENEC,EN

54871-45010

Unavailable

11

BOX ASSY,SPEEDO | EC,EN This part replaces 54600-18401.

54600-18403

Unavailable

12

DISK, FRONT BRAKE | EC,EN

59211-44000

Unavailable

13

BOLT | EC,EN

09100-08140

$2.10

14

WASHER | EC,EN

09169-08016

$2.41

15

TIRE | EC,EN; 3.25-19

55100-45030

Unavailable

16

TUBE | EN; 3.25-19 This part replaces 55200-15010.

55200-44611

$33.73

17

BALANCER | EC,EN; (0~3) 20G This part replaces 55411-47000.

55411-47001

Unavailable

17

BALANCER | EC,EN; (0~3) 30G This part replaces 55412-47000.

55412-47001

Unavailable
