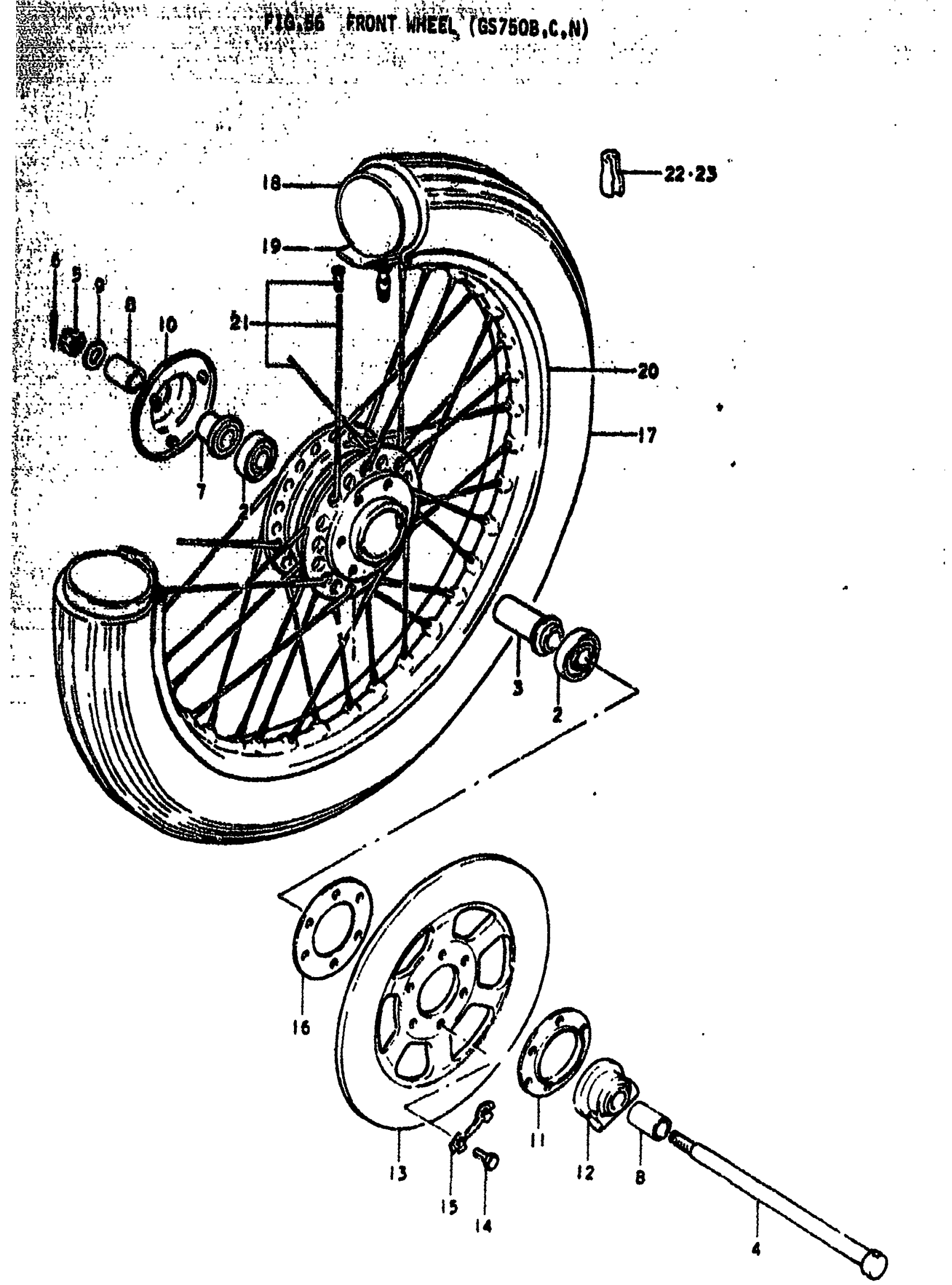

Suzuki GS750B (1979) FRONT WHEEL (GS750 Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B This part replaces 54111-45000.

54111-47002

Unavailable

1

NO DESCRIPTION AVAILABLE | C This part replaces 54111-47000.

54111-47002

Unavailable

1

NO DESCRIPTION AVAILABLE | N This part replaces 54111-47001.

54111-47002

Unavailable

2

BEARING | B,C This part replaces 08123-63020.

08123-6302B

$22.74

2

BEARING | N This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER | B,C,N

54730-18400

$20.45

4

AXLE,FRONT | B,C,N This part replaces 54711-33002.

54711-3300V

Unavailable

5

NUT | B,C,N This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN | B,C,N This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, AXLE, RH | B,C This part replaces 54740-18401.

54740-18402

Unavailable

7

SPACER, BEARING | N

54740-18402

Unavailable

8

SPACER, AXLE | B,C,N; 15x22x30

09180-15034

Unavailable

9

WASHER | B,C,N This part replaces 08322-21128.

08322-01127

$1.84

10

COVER, RH | B,C,N

54871-45000

$8.98

11

DUST SEAL, SPEEDOMETER GEAR | B

54871-31000

Unavailable

11

DUST SEAL, SPEEDOMETER GEAR | C,N

54871-45010

Unavailable

12

BOX ASSY,SPEEDO | B,C,N This part replaces 54600-18401.

54600-18403

Unavailable

13

DISK, FRONT BRAKE | B

59210-37001

Unavailable

13

DISK, FRONT BRAKE | C,N

59211-47000

Unavailable

14

BOLT | B; 8x54

09100-08094

$2.71

14

BOLT | C,N; 8x28

09100-08140

$2.10

15

WASHER | B,C,N

09169-08016

$2.41

16

SEAT, DISK PLATE CUSHION | B,C

59214-45000

Unavailable

17

TIRE | B; 3.25-19 This part replaces 55100-31610.

55100-45030

Unavailable

17

TIRE | C,N; 3.25-19

55100-45030

Unavailable

18

TUBE | B,C,N; 3.25-19 This part replaces 55200-15010.

55200-44611

$33.73

19

PROTECTOR, WHEEL INNER TUBE FRONT | B,C,N; 22x19 This part replaces 55261-15010.

55261-15020

$3.15

20

RIM | B,C,N; 1.85x19

55311-34020

Unavailable

21

SPOKE SET | B,C,N; 1.85x19 This part replaces 55320-34805.

55320-45000

Unavailable

22

BALANCER WHEEL (15G) | C,N; 20G; (0~3) This part replaces 55411-11000.

55411-26G00

$7.73

23

BALANCER WHEEL (30G) | C,N; (0~3) 30G This part replaces 55412-11000.

55413-41F00

$7.50
