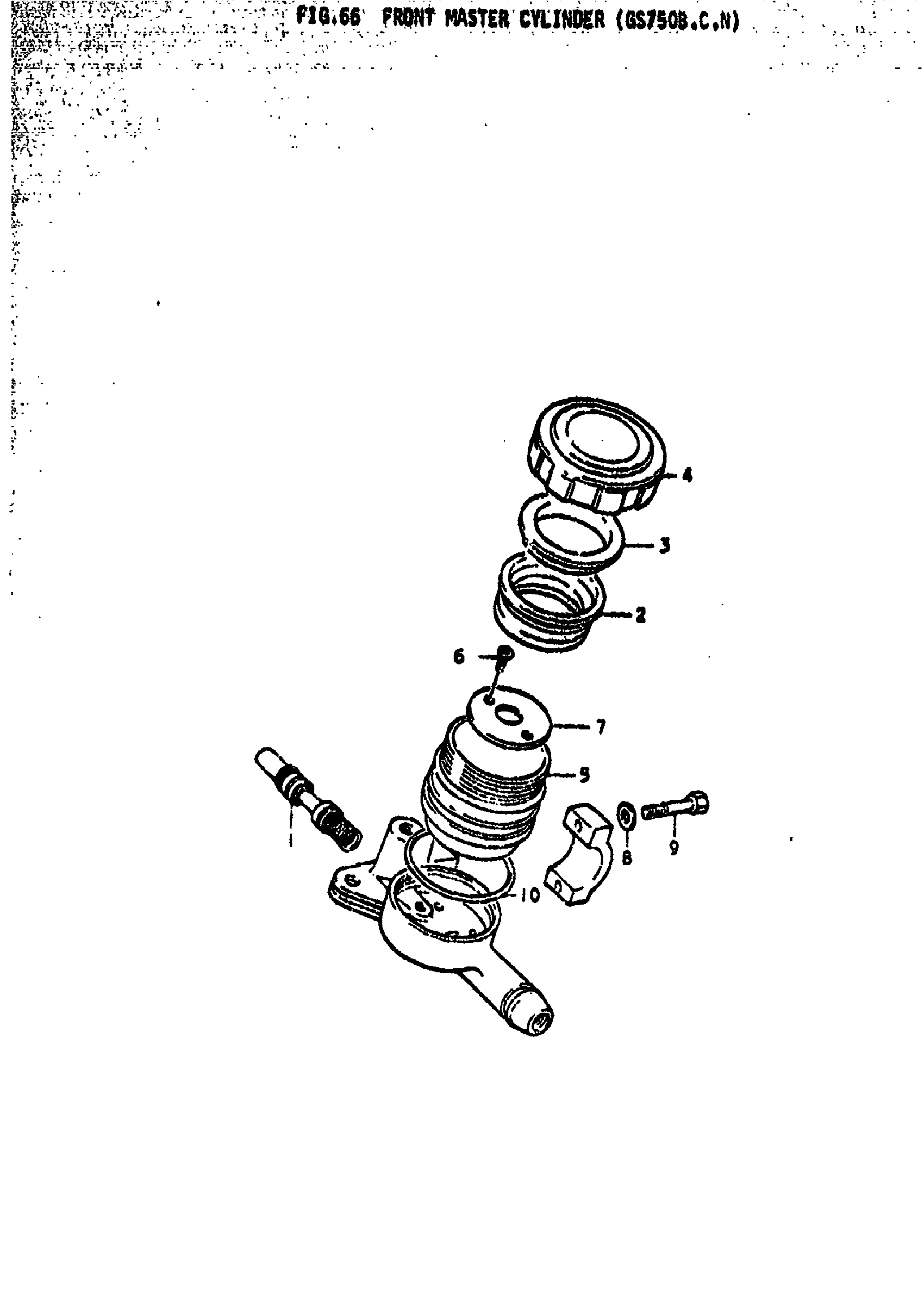

Suzuki GS750B (1979) FRONT MASTER CYLINDER (GS750B Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | B; NISSIN This part replaces 59600-45640.

59600-336V1

Unavailable

0

NO DESCRIPTION AVAILABLE | C; NISSIN This part replaces 59600-33612.

59600-336V1

Unavailable

0

NO DESCRIPTION AVAILABLE | N; NISSIN; Includes Item(s) 1 - 10 This part replaces 59600-33613.

59600-336V1

Unavailable

1

PISTON / CUP SET | B,C,N This part replaces 59600-18824.

59600-45821

Unavailable

2

DIAPHRAGM | B,C,N

59667-18441

$10.28

3

PLATE | B,C,N

59668-18441

$4.52

4

CAP | B,C This part replaces 59669-33602.

59669-07D00

$31.72

4

CAP, RESERVOIR | N

59689-33603

Unavailable

5

RESERVIOR | B This part replaces 59687-33603.

59687-45000

Unavailable

5

RESERVOIR | C,N

59687-45000

Unavailable

6

SCREW | B,C

59688-33600

Unavailable

6

SCREW | N

59688-33601

Unavailable

7

PLATE | B,C

59685-33601

Unavailable

8

WASHER | B,C,N This part replaces 08322-21068.

08322-01067

$2.13

9

BOLT | B,C,N This part replaces 01107-06258.

01500-06257

$1.97

10

O RING | B,C,N

59686-33600

Unavailable
