Partiron

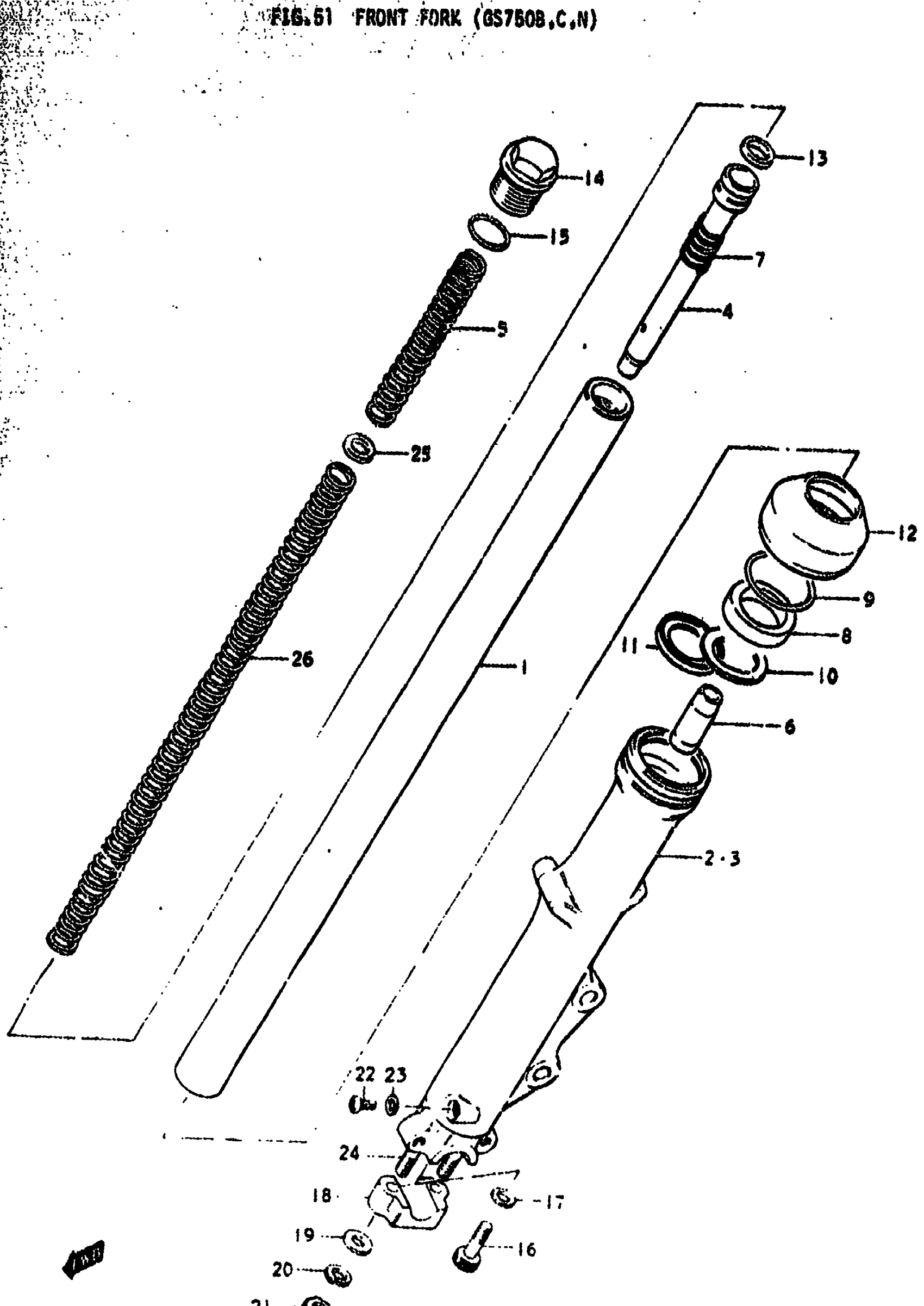

Suzuki GS750B (1979) FRONT FORK (GS750B Diagram

#

Description
Price

0

DUMPER ASSY, RH | B,C This part replaces 51103-45030.

51103-45031

Unavailable

0

DUMPER ASSY, RH | N

51103-45031

Unavailable

0

DUMPER ASSY, LH | B,C This part replaces 51104-45030.

51104-45031

Unavailable

0

DUMPER ASSY, LH | N; Includes Item(s) 1 - 25

51104-45031

Unavailable

1

INNER TUBE | B,C,N

51110-45030

Unavailable

2

OUTER TUBE, RH | B,C This part replaces 51130-45031.

51130-45032

Unavailable

2

OUTER TUBE, RH | N

51130-45032

Unavailable

3

OUTER TUBE, LH | B,C This part replaces 51140-45031.

51140-45032

Unavailable

3

OUTER TUBE, LH | N

51140-45032

Unavailable

4

PIPE, SEAT | B,C,N

51146-45030

Unavailable

5

SPRING, MAIN UPPER | B,C,N; L:166

51171-45030

Unavailable

6

PIECE, OIL LOCK | B,C,N

51195-45030

Unavailable

7

SPRING, REBOUND | B,C,N

51177-45030

Unavailable

8

SEAL, OIL | B,C This part replaces 51153-34730.

51153-19D10

$22.96

8

SEAL, OIL | N This part replaces 51153-45030.

51153-19D10

$22.96

9

RING, STOPPER | B,C,N This part replaces 51556-31231.

51156-01A00

$4.34

10

SPACER, SEAL | B,C This part replaces 51168-45030.

51168-30B00

$6.31

11

SPACER, SEAL | N This part replaces 51168-45031.

51168-30B00

$6.31

12

DUST SEAL | B,C,N This part replaces 51571-31232.

51571-20520

Unavailable

13

RING, PISTON | B,C,N

51196-31230

Unavailable

14

BOLT | B,C,N

51351-31030

Unavailable

15

O RING | B,C,N

51181-31030

$4.37

16

BOLT | B,C This part replaces 51147-31030.

51147-48130

$4.34

16

BOLT | N

51147-48130

$4.34

17

O RING | B,C,N This part replaces 51148-31030.

51148-36011

$3.56

18

HOLDER, AXLE | B,C,N

51132-31030

Unavailable

19

WASHER | B,C,N This part replaces 08322-21088.

08322-01087

$2.13

20

.LOCK WASHER | B,C,N This part replaces 08321-21088.

08321-01087

$2.13

21

NUT | B,C,N This part replaces 08310-12088.

08310-00087

$2.13

22

SCREW | B,C,N This part replaces 02111-04067.

02112-0406B

$1.55

23

GASKET | B,C,N

51183-33030

Unavailable

24

BOLT,STUD | B,C,N This part replaces 01421-08258.

01421-0825A

$2.03

25

GUIDE, SPRING | B,C,N This part replaces 51192-45030.

51192-47200

Unavailable

26

SPRING, MAIN LOWER | B,C,N L:370

51184-45030

Unavailable
