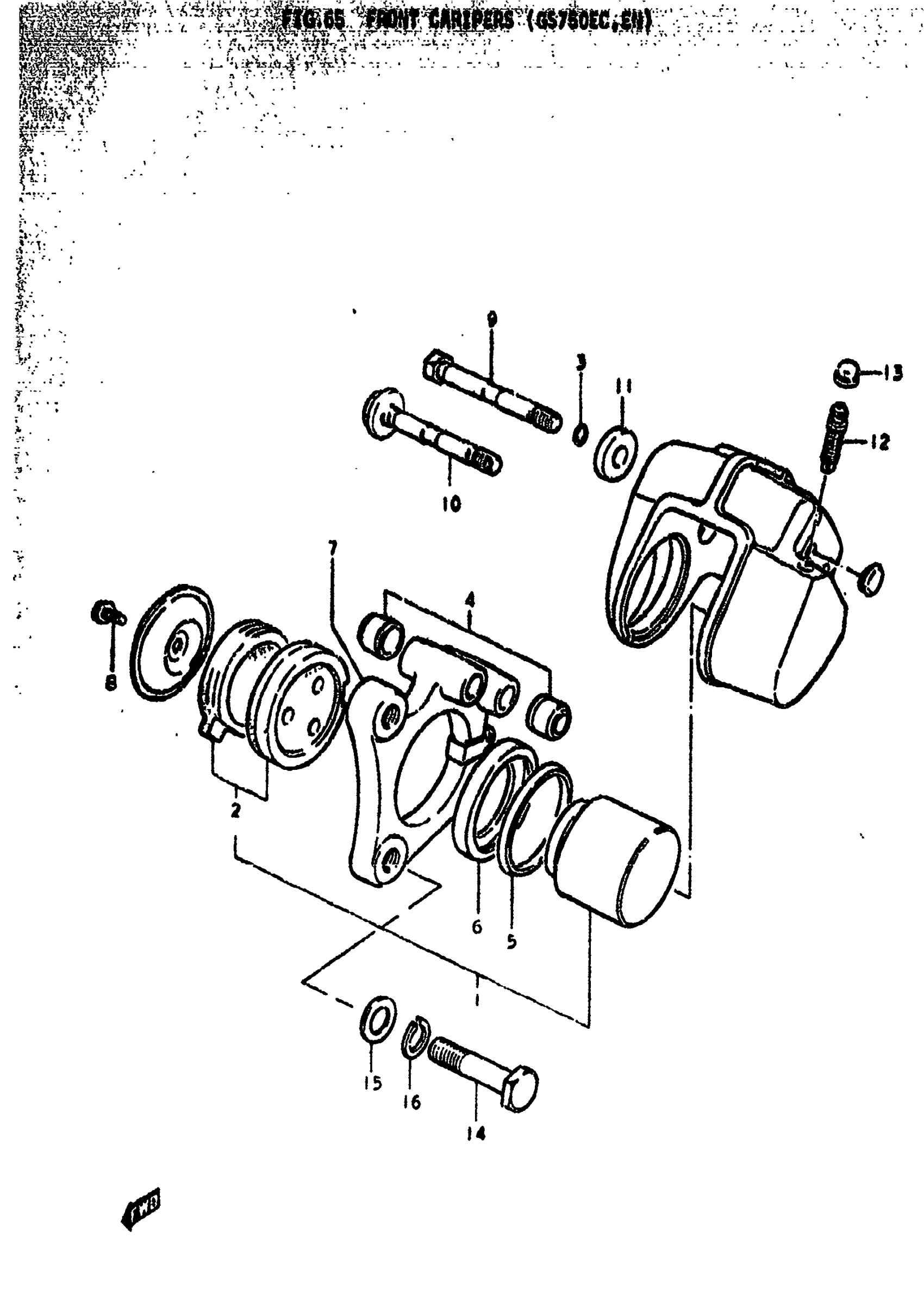

Suzuki GS750B (1979) FRONT CARIPERS (GS750EC Diagram

#

Description
Price

0

CARIPERS ASSY, FRONT RH | EC This part replaces 59100-44001.

59100-44002

Unavailable

0

CARIPERS ASSY, FRONT RH | EN

59100-44002

Unavailable

0

CARIPERS ASSY, FRONT LH | EC This part replaces 59300-44001.

59300-44002

Unavailable

0

CARIPERS ASSY, FRONT LH | EN; Includes Item(s) 1 - 13

59300-44002

Unavailable

1

NO DESCRIPTION AVAILABLE | EC,EN This part replaces 59100-44820.

59100-44823

Unavailable

2

PAD SET | EC,EN This part replaces 59100-45820.

59302-45830

Unavailable

3

O RING | EC,EN

59111-45001

Unavailable

4

DUST COVER, AXLE | EC,EN

59312-45000

Unavailable

5

SEAL,PISTON | EC,EN This part replaces 59107-18410.

69107-05CF0

$9.07

6

BOOT, PISTON | EC,EN

59308-45000

Unavailable

7

HOLDER, CARIPERS RH | EC

59150-44001

Unavailable

7

HOLDER, CARLPERS RH | EN This part replaces 59150-44002.

59150-44003

Unavailable

7

HOLDER, CARIPERS LH | EC

59350-45001

Unavailable

7

HOLDER, CARIPERS | EN This part replaces 59350-44002.

59350-44003

Unavailable

8

SCREW | EC,EN This part replaces 02112-06128.

02112-06127

$1.84

9

AXLE, CARIPERS | EC

59305-45001

Unavailable

10

AXLE, CARIPERS | EN

59305-45002

Unavailable

11

WASHER, AXLE | EC

59371-45000

Unavailable

12

BREATHER | EC,EN

59121-18410

$8.73

13

CAP, BLEEDER | EC,EN This part replaces 59122-18410.

55156-66310

$5.17

14

BOLT (10X38) | EC,EN This part replaces 09104-10007.

09104-10029

$3.55

15

WASHER | EC,EN This part replaces 08322-21108.

08322-01107

$2.15

16

LOCK WASHER | EC,EN This part replaces 08321-21108.

08321-01107

$1.84
